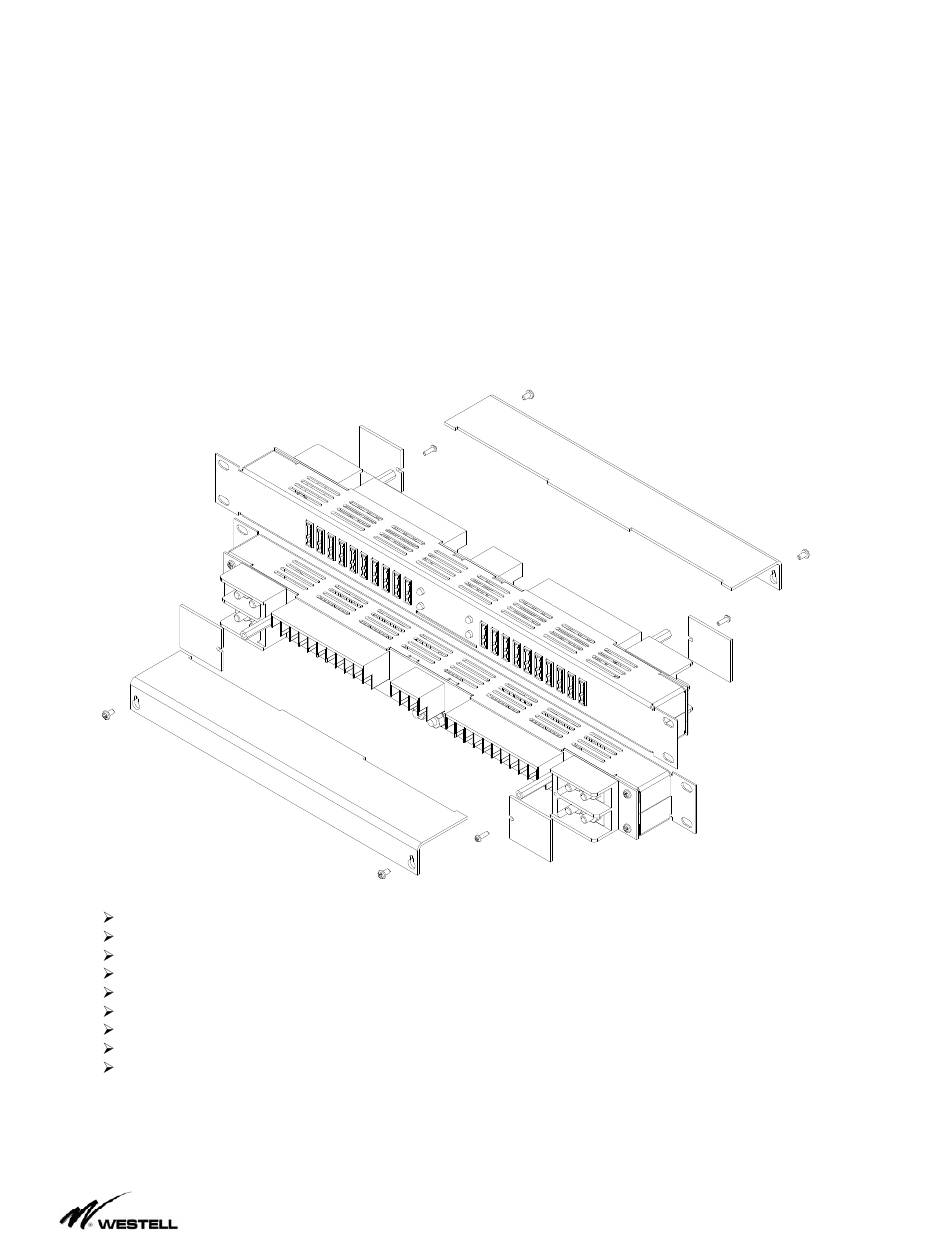

FEATURES
2 isolated groups (busses) of 10 GMT style fuses in each (20Amps/GMT position max).
Polarity insensitive (+/-24 or +/- 48 Vdc) battery voltage.
This panel can operate at 200 Amps of output current per panel (100 Amps per Bus).
Barrier terminal strips for fused outputs and isolated returns (grounds).
Two sets of Form C relay contacts are provided to extend alarms.
One set of alarm contacts for each; Bus A, and Bus B Alarm.
Single 1.75" mounting height (single panel space).
NEBS level 3 verified, with zone 4 earthquake.
UL Listed
______________________________________________________________________________________
Westell
Fuse Panel
Technical Practice
NPGMT1125
10/10 GMT
NEBS Level 3 Verified
530-101282 Rev D
1125-03A
October 2012
Advertisement
Table of Contents
Related Manuals for Westell NPGMT1125
Summary of Contents for Westell NPGMT1125
- Page 1 530-101282 Rev D 1125-03A October 2012 Westell Fuse Panel Technical Practice NPGMT1125 10/10 GMT NEBS Level 3 Verified FEATURES 2 isolated groups (busses) of 10 GMT style fuses in each (20Amps/GMT position max). Polarity insensitive (+/-24 or +/- 48 Vdc) battery voltage.
-
Page 2: General Description
0.050" steel painted off-white. bus has its own completely isolated inputs, NPGMT1125 is designed to fit 19" wide racks allowing the distribution of two battery voltages and use only one 1.75" panel space. through the same panel. 2. APPLICATION 1.3. The power is distributed to the load side 2.1. -
Page 3: Installation
PERSONNEL ONLY. 4.3. Remove the distribution fuse feeding the 4.1. Unpack and inspect the Westell Fuse Panel input cables that are to be connected to the new for possible damage incurred during shipping. If panel. - Page 4 Be requirements. Westell recommends you fuse careful not to overload the panel bus or BDFB the alarm battery supply (ABS) to 1A or less to fuse position rating supplying the panel.
-
Page 5: Specifications
5. SPECIFICATIONS 5.1. Voltage -/+24 or -/+48 VDC Typical 5.13. Rack Mounting 19” Racks for 1-1/4” -/+22 to -/+58 VDC Max. Panel Spaces 5.2. Fuse Size 60Vdc, 0.18 to 20 Amps Max* 5.14. Weight Appx 4 Lbs 450A @60Vdc Interrupt rating 5.15. -
