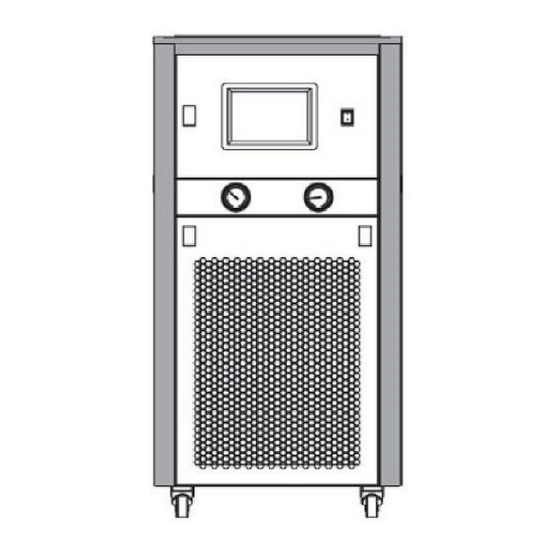

5.2 kw industrial glycol chiller

Advertisement

Quick Links

Crystal8 – 5.2 kW Industrial Glycol Chiller
Industrial Glycol Chiller
Please read this owner's
Manual carefully before
KegLand Distribution PTY LTD
Page 1 of 17
Crystal8 – 5.2 kW
KL36252
Owner's Manual
operating the unit.
www.KegLand.com.au
Last Updated 9/05/2024 3:35 PM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CRYSTAL 8 INDUSTRIAL KL36252 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for KegLand CRYSTAL 8 INDUSTRIAL KL36252

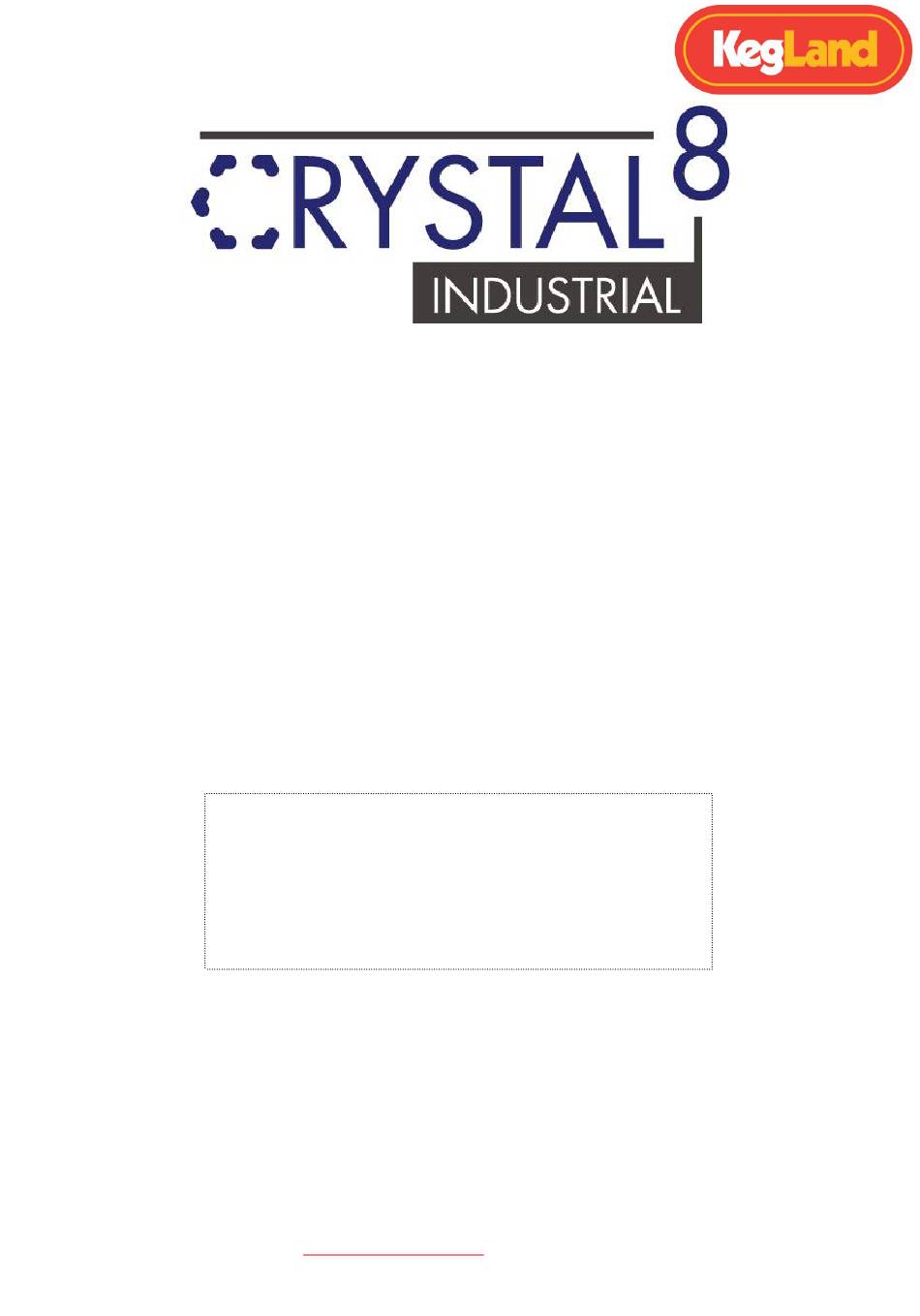

  • Page 1 Crystal8 – 5.2 kW Industrial Glycol Chiller Crystal8 – 5.2 kW Industrial Glycol Chiller KL36252 Owner’s Manual Please read this owner’s Manual carefully before operating the unit. KegLand Distribution PTY LTD www.KegLand.com.au Last Updated 9/05/2024 3:35 PM Page 1 of 17...
  • Page 2: Table Of Contents

    Parameter Adjustment ........................11 Parameters ............................11 Fault Code Table ..........................12 Control Logic ............................. 13 Electrical Diagram ..........................14 Troubleshooting ............................ 15 Maintenance ............................16 Service and Warranty ..........................17 www.KegLand.com.au Last Updated 9/05/2024 3:35 PM Page 2 of 17...
  • Page 3: Specifications

    Unit Weight Dimensions 1160 The above cooling capacity is based on the ambient temperature 35°C and outlet temperature 7°C Design and specification are subject to change without prior notice www.KegLand.com.au Last Updated 9/05/2024 3:35 PM Page 3 of 17...
  • Page 4 Crystal8 – 5.2 kW Industrial Glycol Chiller www.KegLand.com.au Last Updated 9/05/2024 3:35 PM Page 4 of 17...
  • Page 5: Refrigeration Principle

    This system will keep your circulating coolant water at the specified set value and hence it may require the use of external filters, pressure relays and water flow switches according to the actual desired use of the chiller. www.KegLand.com.au Last Updated 9/05/2024 3:35 PM Page 5 of 17...
  • Page 6: Installation

    6. Installation principles: ensure that there is a clearance of at least 400mm around the air inlets and outlets and 300mm between the top of the unit and any overhead objects. www.KegLand.com.au Last Updated 9/05/2024 3:35 PM Page 6 of 17...
  • Page 7: Cooling Water / Glycol Requirements

    Only us propylene glycol concentration ≤ 20% concentration. 3. Approved bactericides or preservatives can be used with the system to reduce mold growth. www.KegLand.com.au Last Updated 9/05/2024 3:35 PM Page 7 of 17...
  • Page 8: Hosing/Tubing

    One or several flow failure alarms may occur. Reset the fault and continue to start the water pump until the air is exhausted and the faults no longer appear. www.KegLand.com.au Last Updated 9/05/2024 3:35 PM Page 8 of 17...
  • Page 9: Operation And Parameter Adjustment

    During normal operation the following will be displayed on the interface. Changing Set Temperature To change the set temperature of the chiller, while on the main interface press the “Up” or “Down” arrow to change the displayed set temperature. www.KegLand.com.au Last Updated 9/05/2024 3:35 PM Page 9 of 17...
  • Page 10: Alarm Interface

    To determine the reason for the alarm press “Ok” to query the alarm. Then press “Ok” to reset the control panel. Function Menu Press Fn to enter the Function Menu. This menu will display the following five items: www.KegLand.com.au Last Updated 9/05/2024 3:35 PM Page 10 of 17...
  • Page 11: Parameter Adjustment

    Run type Local Local / Remote Remote On / Off Backlight on 0 – 255 minutes Backlight run time (0 = backlight always on) Language English Chinese / English Select Language www.KegLand.com.au Last Updated 9/05/2024 3:35 PM Page 11 of 17...
  • Page 12: Fault Code Table

    Crystal8 – 5.2 kW Industrial Glycol Chiller Fault Code Table www.KegLand.com.au Last Updated 9/05/2024 3:35 PM Page 12 of 17...
  • Page 13: Control Logic

    SV = Set Temp Add = Upper range of hysteresis Sub = Lower range of hysteresis When temperature rising: PV≥SV+ADD, start the compressor When temp cooling: PV≤SV-ADD, stop the compressor. www.KegLand.com.au Last Updated 9/05/2024 3:35 PM Page 13 of 17...
  • Page 14: Electrical Diagram

    Crystal8 – 5.2 kW Industrial Glycol Chiller Electrical Diagram www.KegLand.com.au Last Updated 9/05/2024 3:35 PM Page 14 of 17...
  • Page 15: Troubleshooting

    Crystal8 – 5.2 kW Industrial Glycol Chiller Troubleshooting www.KegLand.com.au Last Updated 9/05/2024 3:35 PM Page 15 of 17...
  • Page 16: Maintenance

    3. If alarm stops operation of the chiller, trained personnel should inspect the unit for any abnormalities 4. After the shutdown of the unit, cut off mains power supply. www.KegLand.com.au Last Updated 9/05/2024 3:35 PM Page 16 of 17...
  • Page 17: Service And Warranty

    If you purchased your unit from an international distributor, you will be required to go through their warranty claims process. For a full terms and conditions, please visit our website here -> Terms & Conditions www.KegLand.com.au Last Updated 9/05/2024 3:35 PM Page 17 of 17...
