Summary of Contents for KegLand IceMaster G40.1

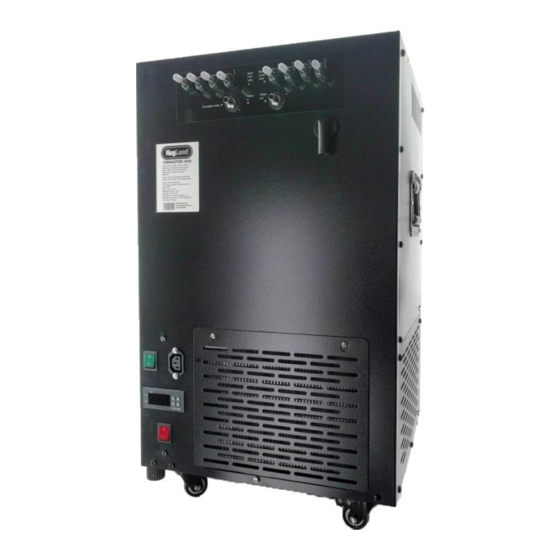

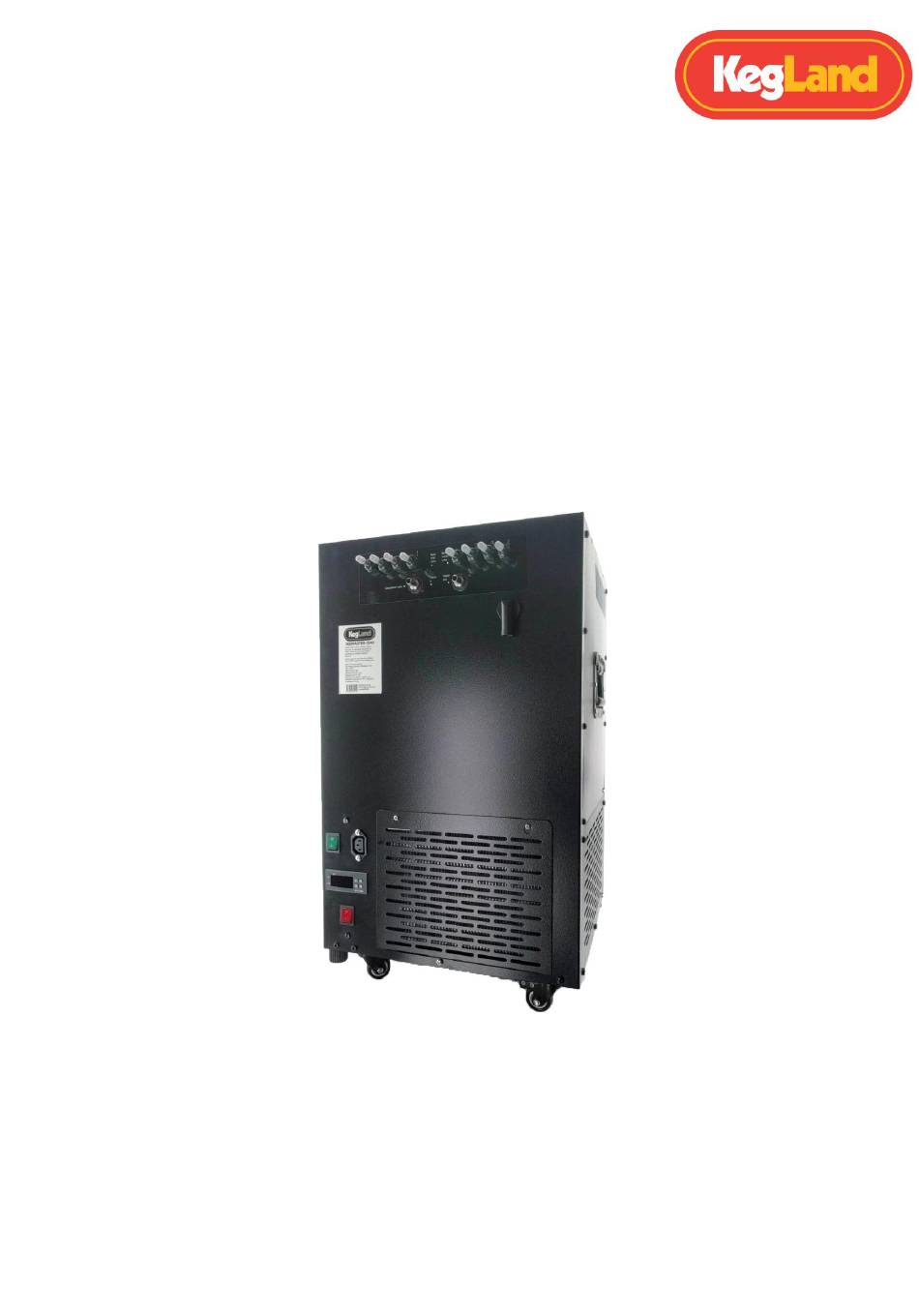

- Page 1 IceMaster G40.1 – Glycol Chiller/IceBank Instruction Manual IceMaster G40.1 Glycol Chiller/IceBank Instruction Manual KL04114 KegLand Distribution PTY LTD www.KegLand.com.au www.KegLand.com.au Last Updated 29/07/2020 2:58 PM Page 1 of 10...
- Page 2 IceMaster G40.1 – Glycol Chiller/IceBank Instruction Manual WARNING IF THE GLYCOL CHILLER HAS JUST BEEN MOVED DO TURN ON UNLESS THE GLYCOL CHILLER HAS BEEN STANDING UPRIGHT FOR 24 HOURS. FAILURE TO DO SO WILL VOID WARRANTY. STAND THE GLYCOL CHILLER IN THE...
- Page 3 IceMaster G40.1 – Glycol Chiller/IceBank Instruction Manual Initial Start-up and Testing Important Let the glycol chiller sit for at least 24 hours after delivery or after sitting on its side before turning the unit on. Whenever the glycol chiller is operating and cooling the reservoir the agitator pump needs to be operating to keep the liquid in the reservoir agitated and avoid ice formation.
- Page 4 IceMaster G40.1 – Glycol Chiller/IceBank Instruction Manual Install the castor wheels Make sure the G40 is empty Carefully lay the G40 on its side on a soft surface such as carpet, cardboard or a towel Attach each castor wheel to the base of the G40 using 4 screws ...
- Page 5 IceMaster G40.1 – Glycol Chiller/IceBank Instruction Manual Leak testing product lines It is essential to pressure test all four product lines prior to running any liquid through them for dispensing. The product lines need to be pressure tested to a pressure that is at least 1.5 times the pressure that will be used for dispensing to a maximum of 50psi.
- Page 6 IceMaster G40.1 – Glycol Chiller/IceBank Instruction Manual 3. Hydrostatic leak test Step 1. Empty the reservoir Step 2. Attach a duotight push in fitting to each product line. Step 3. Plug the duotight fitting on the “Beer Outlet Tube 1” with a duotight Plug.
-
Page 7: Filling The Reservoir
IceMaster G40.1 – Glycol Chiller/IceBank Instruction Manual Filling the reservoir The G40 can be operated with either just water in the reservoir or both water and glycol to reduce the freezing point of water. IMPORTANT: If you are only using water in the reservoir and not glycol then do not set the temperature of the reservoir below 2°C. - Page 8 IceMaster G40.1 – Glycol Chiller/IceBank Instruction Manual Dispensing beverages through the G40 If your keg is stored in a very warm environment the beverage can be passed twice through the G40 to drop its temperature to serving temperature. A single pass through the G40 will be able to drop the temperature of the product by 15°C, hence if the storage temperature of the keg is more than...
- Page 9 IceMaster G40.1 – Glycol Chiller/IceBank Instruction Manual Please note that the above diagrams are for demonstration purposes only. You may have a different style coupler or tap and shank setup to what is shown in the above diagrams. The pressure to be set on your regulator differs according to the temperature that the keg is stored at.
-
Page 10: Maintenance
IceMaster G40.1 – Glycol Chiller/IceBank Instruction Manual Furthermore, it is not advisable to use the temperature controller on the G40 as a temperature controller for fermentation control. This is because if the fermentation temperature is set on the temperature controller on the G40 it will result in the temperature of the reservoir being set to your...
