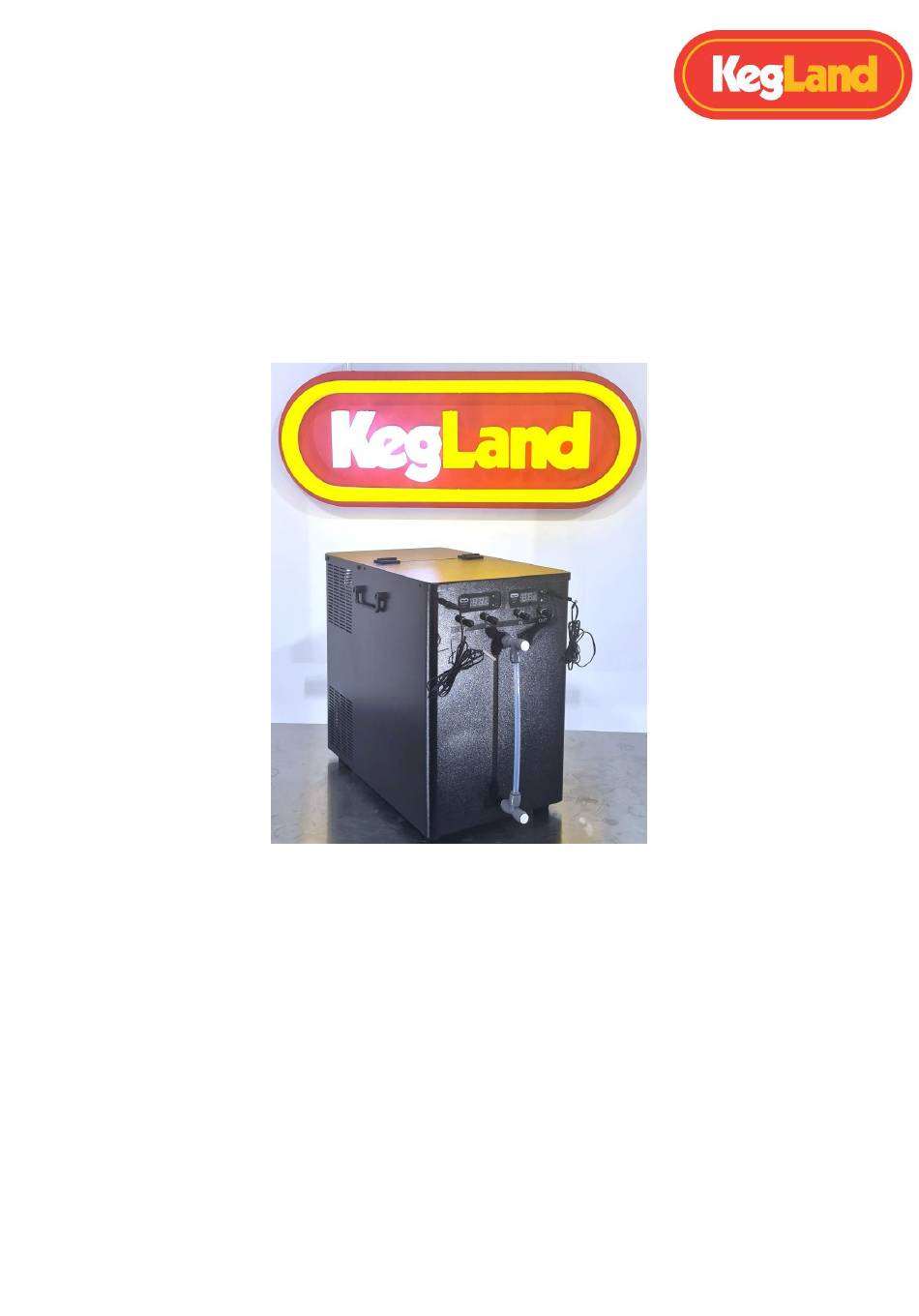

Icemaster G20.1 Instruction Manual
Icemaster G20.1 – Glycol Chiller
Instruction manual
KL16049
KegLand Distribution PTY LTD
www.KegLand.com.au
www.KegLand.com.au
Last Updated 5/08/2020 3:33 PM
Page 1 of 8

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Icemaster G20.1 and is the answer not in the manual?

Questions and answers

Summary of Contents for KegLand Icemaster G20.1

  • Page 1 Icemaster G20.1 Instruction Manual Icemaster G20.1 – Glycol Chiller Instruction manual KL16049 KegLand Distribution PTY LTD www.KegLand.com.au www.KegLand.com.au Last Updated 5/08/2020 3:33 PM Page 1 of 8...
  • Page 2 Icemaster G20.1 Instruction Manual WARNING IF THE GLYCOL CHILLER HAS JUST BEEN MOVED DO TURN ON UNLESS THE GLYCOL CHILLER HAS BEEN STANDING UPRIGHT FOR 24 HOURS. FAILURE TO DO SO WILL VOID WARRANTY. STAND THE GLYCOL CHILLER IN THE...
  • Page 3 Icemaster G20.1 Instruction Manual INITIAL STARTUP AND TESTING Important Let the glycol chiller sit for at least 24 hours after delivery or after sitting on its side before turning the unit on. Whenever the glycol chiller is operating and cooling the reservoir the pumps should be operating to keep the liquid in the reservoir agitated and avoid ice formation.
  • Page 4 Icemaster G20.1 Instruction Manual 7. Check that each pump is operating correctly  This can be determined by looking for water flow through the silicone tubes or by placing the outlet hose into a jug and ensuring that liquid is being pumped out of the hose into the jug.
  • Page 5 Icemaster G20.1 Instruction Manual You can measure the glycol percentage using a calibrated refractometer and comparing to the specific gravity at 21°C in the above table. We would advise running a 20% glycol solution however, if you do not have a jacketed fermenter or have the fermenter in a very warm environment you can run it at a higher glycol concentration.
  • Page 6 Icemaster G20.1 Instruction Manual 4. Run tubing from the outlet of the fermenter cooling coils back into the reservoir of the G20 5. Set the temperature on the G20 to -2°C (if using glycol) or to 2°C (if only using water in the reservoir).
  • Page 7 Icemaster G20.1 Instruction Manual TEMPERATURE CONTROLLER SET POINT AND PARAMETER ADJUSTMENT The G20.1 includes temperature controllers on the front of the G20 which controls the switching on and off of the submersible pumps and can also be wired to control an external heating source. To adjust the parameters of the temperature controllers on the front of the G20 follow these steps: Turn the Temperature Controller On/Off - Hold the “Down”...
  • Page 8 Icemaster G20.1 Instruction Manual https://www.kegland.com.au/media/pdf/stc1000%20instructions.pdf MAINTENANCE If the glycol solution has been stored for an extended period of time then it is suggested to replace the solution, despite glycol having antimicrobial properties. To replace the glycol empty the reservoir using the drainage port and then refill with the required concentration of glycol using a refractometer to confirm the concentration.
