USCutter MH300 User Manual page 5

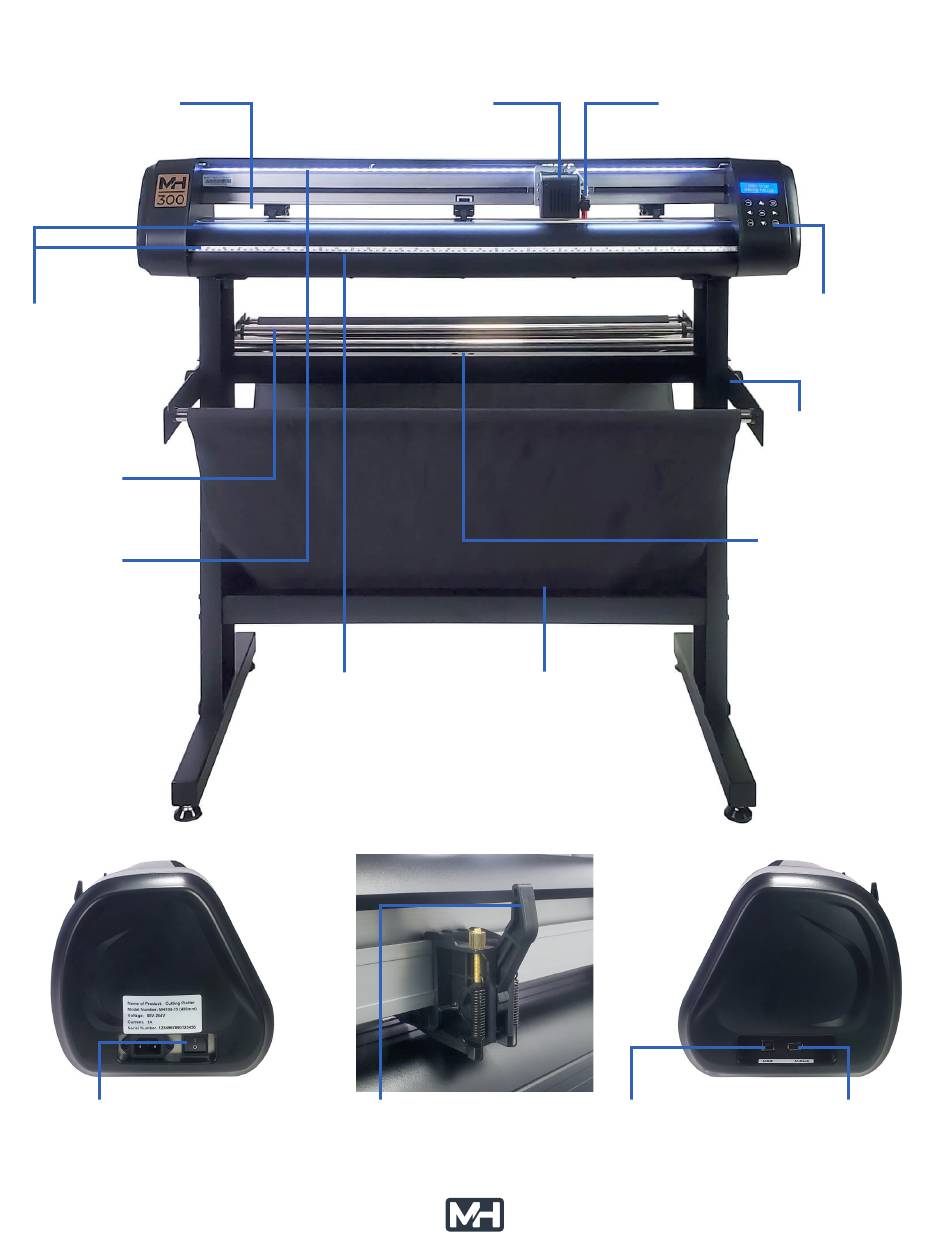

1.2 - HARDWARE SETUP (CONTINUED)
Pinch Rollers:
Hold media in place
Double Rulers:
Ensure accurate
cutting.
Roller Bars:
Hold vinyl
material
LED Lights:
Helps align media
Power Switch:
Carriage Head:
Moves the blade
across cutting area.
Trimming Groove:
Guide for trimming
tool to cut vinyl into
sheets.
Pinch Roller Lever:
Move pinch rollers
up & down.
Catch Basket:
Prevents dirt and dust
from making contact
with vinyl.
USB Port:
Connect your MH300
to your computer
Blade Holder:
Moves the blade up
and down
Control Panel:
Easy to use buttons
& LCD screen.
Premium Stand:
Fold down front
arms for easy access
to cut vinyl in catch
basket
Blade Holder
Storage Slots
Drop in extra
bladeholder and
pen holder for quick
access.
UDisk Port:
Cut files without
a PC
5
