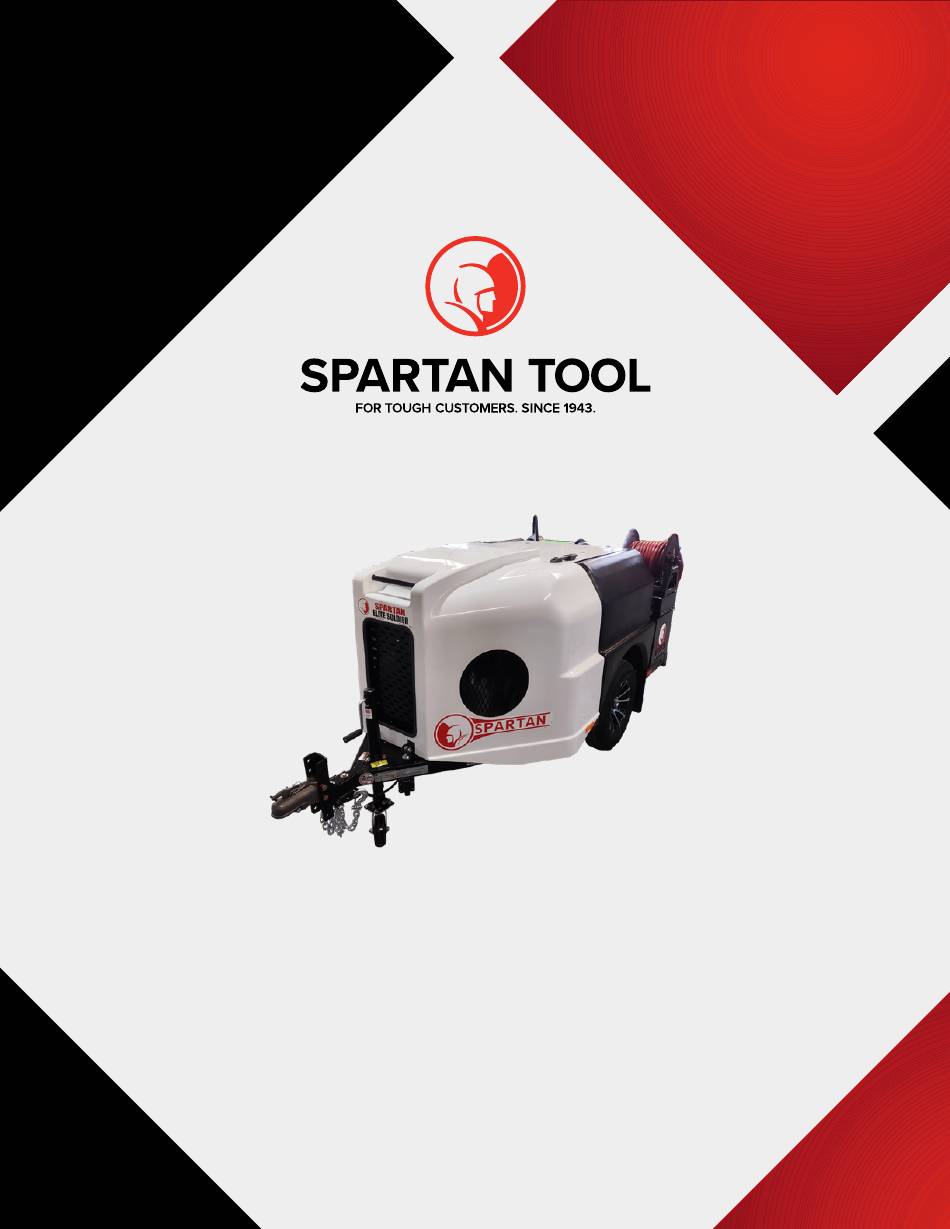

- Page 1 PRODUCT MANUAL Elite Soldier Spartan Tool LLC 1618 Terminal Road Niles, MI 49120 order by phone 800.435.3866 order online SpartanTool.com © 2024 Spartan Tool LLC Part #7584E000...
-
Page 2: Table Of Contents
Contents WARNINGS ......................4 TECHNICAL INFORMATION . - Page 3 Contents OPTIONAL FOOT PEDAL VALVE - 77773920 ................26 OPTIONAL WIRELESS REMOTE CONTROL 75880005 .
-
Page 4: Warnings
Warnings • Read the safety and operating instructions before using any Spartan Tool product . Drain and sewer cleaning can be dangerous if proper procedures are not followed and appropriate safety gear is not utilized . Read the engine owners’ manual for instructions and safety precautions on engine operation . -
Page 5: Technical Information
Technical Information GENERAL • Plungers: 3 • Pipe Sizes: up to 15" diameter REWIND • Max Water Pressure: 4,000 psi • 12V Electric Motor with Variable Speed Controller • Max Water Flow: 10 GPM FEATURES TRAILER • 3/8" x 350' high pressure jetting hose •... -
Page 6: Machine Overview
Machine Overview 200 gallon baffled Enclosure latches water tank Break-away brake controller Water tank drain valve Pivoting HP reel Fill reel Antifreeze tank 12V battery Antifreeze recirculation selector valves Control panel EZ lube bearings Locking tool box Hose guide Electric brakes... -
Page 7: Towing Instructions
Towing Instructions Fuel Shut Off must be turned "OFF" when towing jet . Failure to shut off fuel can cause fuel to flow through the carburetor and fill the engine cylinders . Before hitching and towing on public roads, check that the tow vehicle uses a 2" ball on a hitch rated class II minimum, make sure keeper engages ball to secure hitch . - Page 8 Towing Instructions Adjust the coupler up or down depending on vehicle Drop Coupler hitch height to ensure the jetter is towed level . TOWING Check that ball size is same as coupler . Check that Ball Load Rating is the same or greater than Coupler Load Rating Breakaway Cable Open clamp on hitch coupler .
-
Page 9: Pump And Pressure System
Pump and Pressure System The pump and relief valve are the heart of your jet . They have been specially designed for use with water temperatures up to 140°F for pipe jetting, but can provide useful water flow for many other cleaning jobs using the optional wash down gun and special attachments . -
Page 10: High Pressure Water Jetting
High Pressure Water Jetting High pressure water jetting is the utilization of high pressure water combined with sufficient water flow to remove debris in drain/sewer pipes . High pressure water jetting can also be used to remove debris on surfaces . A high pressure water jet consists of a pump, a motor or engine, a hose reel, a given length of hose, and a various assortment of nozzles . -
Page 11: Operator Controls
Operator Controls Hydrant Fill Optional Wireless Remote Control Control Panel Throttle Control H .P . Water Control Valve Pressure Gauge Swivel Lock Reel Lock Pigtail Hose Guide Pulsation Up/Down Low Water Control Throttle Override Fill Hose Valve Fill Hose Reel Lock High Ignition Switch Pressure... -
Page 12: Engine Operation
Operator Controls Anti-Freeze Valve Inlet Filter Drain Valve Engine Operation START UP • Check water tank level . This water jet is equipped with a Low Water Shut-Off switch that will prevent the engine from starting at low water levels . •... -
Page 13: Operation Set Up
Operation Set Up • Always locate the jet in the driest and safest place possible . • Avoid high traffic areas and use flashers and safety cones . • Position the jet so that the hose can be pulled directly off of the reel for use . Remember that jetting is most effective when you jet against the water flow . -
Page 14: Power Rewind Instructions
Power Rewind Instructions TO REWIND HOSE ON REEL • Release reel lock . • Turn Speed Selector Dial counterclockwise to begin rewind in "Slow" position . • Use panel mounted push button to initiate rewind . • Adjust Selector Dial to desired rewind speed . Pulsation To activate the pulsation feature, turn toggle switch labeled PULSE to the ON position . -
Page 15: Operating Instructions
• The Elite Soldier Water Jet will pull out past 350' but you will find the going slower because of the pressure loss from extra hose length . Unless longer operation is common, we recommend the hose extensions be added only when needed . If moving the jet before the job is done, the hose can be disconnected from the jet to avoid pulling hose completely out of pipe and restarting . - Page 16 • Although the Elite Soldier is capable of various high pressure cleaning operations, jetting pipes of 4" - 15" is typically the major work required of the jet . The hose reel is designed for outdoor applications . See sections on the mobile hose reel and 1/4" drain hose for indoor or remote applications and for lines smaller than 6"...
-
Page 17: Wash Down Kit - 73817300
Operating Instructions ENCOUNTERING OBSTRUCTIONS • When obstruction or corners are encountered it may be necessary to manually rotate the hose (See Fig . 19-1) to enable feed through that area . The rotation will cause the jetting nozzle to jump over or around those areas . Any rotations in one direction must be followed by an equal number in the opposite direction to prevent kinks from building in the hose . -
Page 18: 1/4" Drain Hose
1/4" Drain Hose The 1/4" hose and nozzle may be used to clean smaller diameter lines . Attach the 1/4" hose to the forward end of the wash down gun as described on the previous page . Use the 1/4" drain hose on lines 2" - 4" similar to the reel hose . Again, use care not to discharge water unless the hose is in the pipe . On inside lines, use short bursts of the gun to limit water backup . -
Page 19: Cold Weather Protection
10 . Connect the H .P . hose to the recirculation connection . NOTE: An Elite Soldier with the 350' hose option will require additional antifreeze . During Step 8 of the winterization procedure, it is recommended that one additional gallon of antifreeze be added to the antifreeze... - Page 20 PROCEDURE Fill Reel Valve 2” Hydrant Fill To reactivate the Elite Soldier following the winterization procedure, follow these steps to preserve the antifreeze . Confirm drain valve and antifreeze valve are closed . Confirm water supply valve and fill reel valve are open (Fig . 20 .1 &...
-
Page 21: Lubrication & Maintenance
Lubrication & Maintenance Engine Air Filter Oil Filter Oil Dipstick Oil Fill Fig. 24.1 See Periodic Maintenance Chart below . For Fuel, Oil, and Coolant Recommendations see page 24 . See Engine Owner's Manual for additional information . - Page 22 Lubrication & Maintenance GENERAL MAINTENANCE • Check entire unit daily for water, fuel, and oil leaks . • Inspect machine daily for loose or lost nuts, bolts, etc . Battery Fig. 25.1 Fig. 25.2 Inlet Filter • Clean inlet filter daily . •...
- Page 23 Lubrication & Maintenance • Note: Use a #2 consistency lithium base grease formulated from a high quality mineral oil with rust and oxidation inhibitors . HIGH PRESSURE REEL ASSEMBLY Oil Drive Chain ever 50 hours (SAE 30 or heavier) . Grease Reel Pivot Bearings every 100 hours .
-
Page 24: Fuel, Oil & Coolant Recommendations
Fuel, Oil & Coolant Recommendations FUEL Use only clean, fresh, unleaded regular grade gasoline . CAUTION: Do not mix oil with gasoline . Octane Rating: The octane rating of a gasoline is a measure of its resistance to "knocking" . Use a minimum of 87 octane of the antiknock is recommended . -
Page 25: Venturi Pump Attachment - 77763700 (Optional)
Venturi Pump Attachment - 77763700 (Optional) HOW THE VENTURI EFFECT WORKS The Venturi Effect uses the venturi pumping attachment and your Spartan Jetter to create a vacuum effect to drain standing water . In Fig . 27 .1, the black circles represent water from the jetter and the white circles represent the water to be pumped . The venturi has two parts: the Venturi Throat, which is a restricted section of the suction tube;... -
Page 26: Optional Hose Footage Counter 75875005
Optional Hose Footage Counter 75875005 Counter Optional Foot Pedal Valve - 77773920... -
Page 27: Optional Wireless Remote Control 75880005
Optional Wireless Remote Control 75880005 Remote Receiver... -
Page 28: Troubleshooting
Troubleshooting PROBLEM POSSIBLE CAUSES CORRECTIVE ACTION Worn packing seals . Replace packing seals . Broken valve spring . Replace spring . Belt slippage . Tighten or replace belt . Worn or damaged nozzle . Replace nozzle . Fouled discharge valve . Clean valve assembly . - Page 29 Troubleshooting PROBLEM POSSIBLE CAUSES CORRECTIVE ACTION Open circuits . Find and correct . Severe underadjustments . Adjust brakes . No brakes. Faulty controller . Test and correct . Short circuits . Find and correct . Grease or oil on magnets or linings . Clean or replace .
- Page 30 Troubleshooting PROBLEM POSSIBLE CAUSES CORRECTIVE ACTION Underadjustment . Test & correct . Lack of lubrication . Lubricate . Noisy brakes. Incorrect brake components . Correct . Broken brake components . Replace components . Out-of-round or cracked brake drums . Machine or repair . Surging brakes.
-
Page 31: Tire Safety Information
. Tire Information Placard The Spartan Elite Soldier's Federal Certification/VIN label is located on the forward half of the left (road) side of the unit . The VIN label will identify the units GVWR and GAWR . - Page 32 The proper air pressure may be found on the Certification/VIN label and/or the Tire Information placard . High speed towing in hot conditions degrades the life of the Elite Soldier's tires . The internal heat generated form high speeds breaks down the tire's internal structure . It is recommended to drive at moderate speeds .
- Page 33 Tire Safety Information Tire Balance and Wheel Alignment • Tires must be properly balanced to avoid vibrations and shaking of the trailer . A wheel alignment adjusts the angles of the wheels to position them correctly relative to the trailer's frame . Such adjustments can maximize the life of the tires, but should be performed by a qualified technician .
-
Page 34: Engine
Care & Maintenance ENGINE • Oil—SAE 10W30 (1 .16 qt capacity) • Check engine oil with every usage . Make the first engine oil change after (1) month or 20 hours of operation and every (6) months or 100 hours of operation thereafter . •... -
Page 35: Warranty Information
Spartan Tool warrants its equipment to be free from defects in material and workmanship for two years from the date of purchase . To obtain warranty service, a purchaser should notify Spartan Tool in writing, at the address provided below, within the warranty period, and Spartan Tool will direct where to take or send the equipment for service . - Page 36 Notes...
- Page 37 CONTACT US Spartan Tool LLC 1618 Terminal Road Niles, MI 49120 800 .435 .3866 SpartanTool.com 7584F000...
