Spartan Tool 746 Owner's Manual

Water jet
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
SP
SP
SP ART
SP
SP
Record the VIN Number of your
Model 746
and give the number to the factory
when ordering parts.
Serial Number ..............................................
74617000 (Rev. -) 10-30-13
ART
ART
ART AN
ART

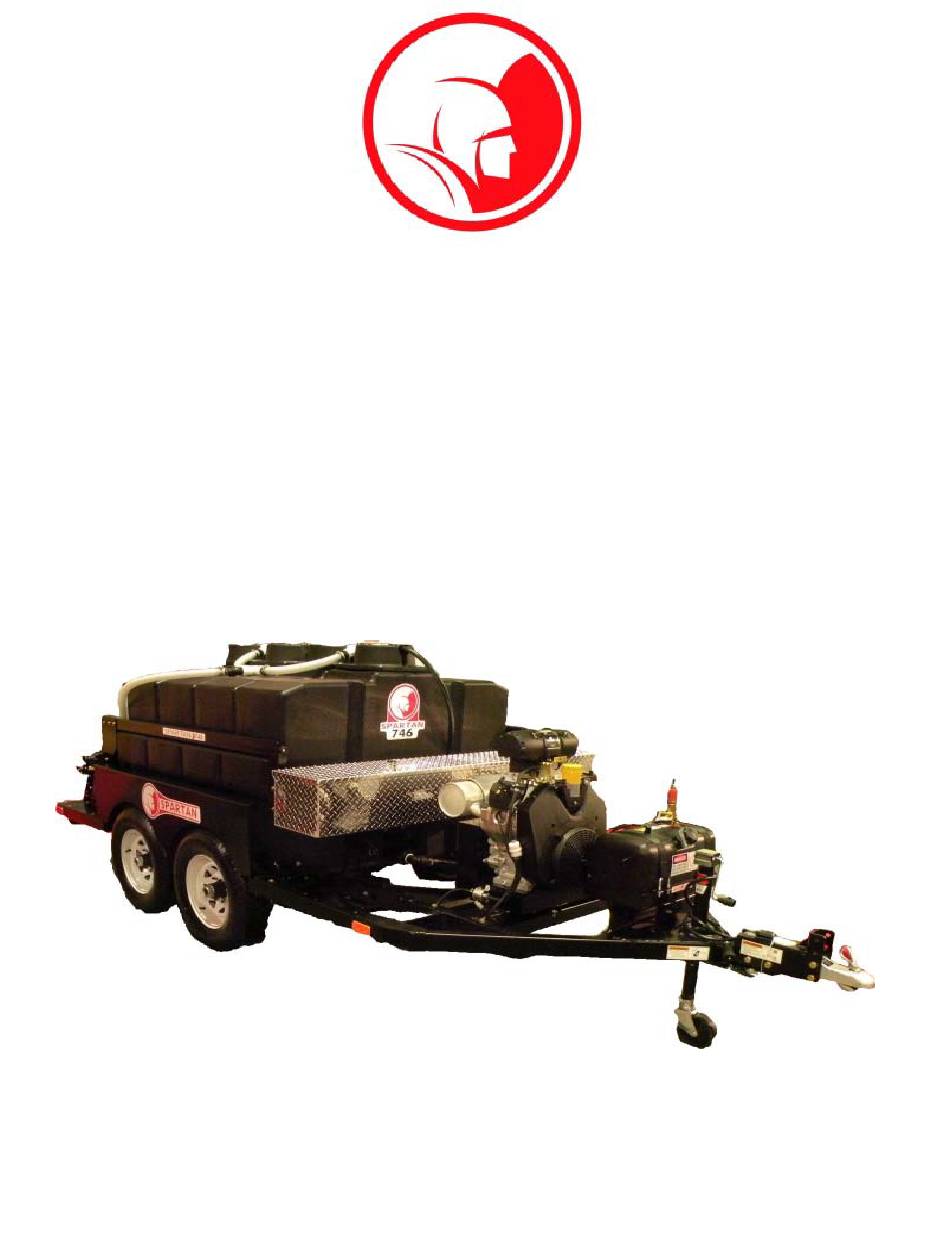

746 Water Jet
Owner's Manual
Spartan Tool L.L.C.
800.435.3866
www.spartantool.com
AN
AN
AN
AN
© 2013 Spartan Tool LLC

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 746 and is the answer not in the manual?

Questions and answers

Related Manuals for Spartan Tool 746

Summary of Contents for Spartan Tool 746

  • Page 1 746 Water Jet Owner’s Manual Record the VIN Number of your Model 746 and give the number to the factory when ordering parts. Serial Number ..........Spartan Tool L.L.C. 800.435.3866 www.spartantool.com 74617000 (Rev. -) 10-30-13 © 2013 Spartan Tool LLC...
  • Page 2 Model 740 LP Gas Version Shown with LP Gas Tank (not included) Page 2...

  • Page 3: Warning

    Warning — Read the safety and operating instructions before using any Spartan Tool product. Drain and sewer cleaning can be dangerous if proper procedures are not followed and appropriate safety gear is not utilized. Read the engine owner’s manual for instruction and safety precautions on engine operation.

  • Page 4: Table Of Contents

    Table of Contents ..........4 Wiring Diagrams ........33-36 OPERATING SECTION LP Gas Operation .......... 37 Model 746 Water Jet Specifications ....5 Final Assembly Gasoline- 74600000 ..38-45 Final Assembly LP Gas 746000LP .... 46-55 Model 746 Water Jet Features ......6 Jet Applications Areas ........

  • Page 5: Model 746 Water Jet Specifications

    Model 743 Water Jet Specifications General Pipe Sizes Up to 12” in Diameter — Max Water Delivery 12 GPM — Max Pressure Delivery 4000 PSI — Trailer Gross Trailer Weight (GTW) 7850 lbs. — Trailer Weight (Empty) 2710 lbs. — Max Tongue Weight 500 lbs.

  • Page 6: Model 746 Water Jet Features

    Model 746 Water Jet Features Features — Equipped with 3/8” x 350’ high pressure jetting hose — Open and Closed nozzles for 3/8 inch hose — Easily accessible pump inlet filter assembly — Axles are torsion design with fully independent wheel suspension —...

  • Page 7: Jet Applications Areas

    Jet Applications Areas There are a wide variety of uses for the Spartan Model 746 Water Jet. Here are just a few: — Apartments/Hotels Mains and garage drains, remove all grease and debris from main lines under the buildings. — Factories Food processing plants and foundries have frequent drain and sewer blockages.

  • Page 8: Preparation

    Preparation Tool box door and engine keys are packed in a bag in the toolbox. Remove the contents. Upon receiving your machine double check the torque of all hitch bolts. (See Fig. 1.) Battery Prior to shipping, the battery cables are disconnected from the terminals of the battery. The battery cables will need to be reconnected to the battery before operating.

  • Page 9: Towing Instructions

    Towing Instructions Before hitching and towing on public roads, check that the tow vehicle uses a 2” ball on a hitch rated class II minimum, make sure keeper engages ball to secure hitch. Adjust if necessary. The following 2 rules may limit your vehicles towing capacity and the tank fill level when towed. Determine towing capacity as described below and follow guidelines in using the lowest value from the 2 rules.

  • Page 10: Pump And Pressure System

    Pump and Pressure System The pump and relief valve are the heart of your jet. They have been specially designed for use with water temperatures up to 140°F for pipe jetting, but can provide useful water flow for many other cleaning jobs using the optional wash down gun and special attachments.

  • Page 11: High Pressure Water Jetting

    High Pressure Water Jetting High pressure water jetting is the utilization of high pressure water combined with sufficient water flow to remove debris in drain/sewer pipes. High pressure water alone cannot do the job. You need proper flow to wash the debris downsstream where it can be collected and removed.

  • Page 12: Water Tank Filling

    Water Tank Filling Fill the water tank from a clean water source. Always flush rust out of hydrants before connecting fill hose to top fill valve. Your water supply hose may remain connected for further filling by controlling water flow at fill valve. Important Note: (If the next 4 items are not followed, cavitation of the pump could occur and reduce operating efficiency and severely damage the pump.) —...
  • Page 13 Operator Controls (cont.) Throttle Oil Filter Choke (Choke is not used on LP version) Ignition Switch Low Oil Pressure warning light Water Drain Valve Inlet Water Supply Filter Valve Page 13...

  • Page 14: Low Water Switch Location

    Low Water Switch Location Low Water Switch Engine Operating Procedure Start Up — Check water tank level. This water jet is equipped with a Low Water Shut-Off switch that will prevent the engine from starting at low water levels. — Check fuel level. Note: Also Check engine and pump oil levels per manufacturer specifications (attached).

  • Page 15: Setting Up For Operation

    Setting up for Operation Always locate the jet in the driest and safest place possible. Avoid high traffic areas and use flashers and safety cones. Position the jet so that hose can be pulled directly off of the reel for use. Remember that jetting is most effective when you jet against the water flow.

  • Page 16: Power Rewind Operating Instructions

    Power Rewind Operating Instructions To Rewind Hose on Reel — Release reel lock. — Use panel mounted push button switch to energize rewind motor. Reel Lock Rewind Push Button Control Page 16...

  • Page 17: Fuel And Oil Recomendations

    Fuel and Oil Recomendations Page 17...

  • Page 18: Lp Gas Tank Recomendations

    LP Gas Tank Recomendations LP (Propane) Gas Tank The model 746 LP jetter requires a vapor service propane tank. Fork truck tanks are liquid service must not be used with this unit. No propane tank is furnished with the Model 746 LP .

  • Page 19: Lubrication & Maintenance

    Lubrication & Maintenance Engine Page 19...
  • Page 20 Lubrication & Maintenance (cont.) General Maintenance • Check entire unit daily for water, fuel, and oil leaks. • Inspect machine daily for loose or lost nuts, bolt etc. a. Clean inlet filter daily. b. Check battery electrolyte level every week or 10 hours. Fill with distilled water if needed.
  • Page 21 Lubrication & Maintenance (cont.) Pump Pump Oil Fill Change pump oil after first 50 hours of operation, then at regular intervals of 500 hours or less depending on operating conditions. Use SAE 90 Gear Oil. High Pressure Reel Assembly Oil rewind final drive chain every 50 hours (SAE 30 or heavier).

  • Page 22: Air Cleaner

    Air Cleaner Page 22...
  • Page 23 Air Cleaner (continued) Page 23...

  • Page 24: Operating Instructions

    Do not let engine run at full throttle without load (hose reel valve OFF) for longer than 1-2 minutes. The Model 746 will pull out past 350’ but you will find the going slower because of the pressure loss from extra hose length.

  • Page 25: Pipe Jetting Procedure

    Pipe Jetting Procedure Equipment: Although the Model 746 is capable of various high pressure cleaning operations, jetting pipes of 4” - 12” is typically the major work required of the jet. The hose reel is designed for outdoor applications. See sections on the mobile hose reel and 1/4”...

  • Page 26: When Obstruction Are Encountered

    When Obstruction Are Encountered Fig. 7 Fig. 8 When obstruction or corners are encountered it may be necessary to manually rotate the — hose (See Fig. 7) to enable feed through that area. The rotation will cause the jetting nozzle to jump over or around those areas.

  • Page 27: Wash Down Kit - 73817300

    Wash Down Kit - 73817300 Note: To use wash-down gun do the following: 1 Turn reel supply valve “off” (down). 2 Connect wash-down gun hose to end of 250 ft hose. 3 Start unit and operate wash-down gun with reel supply valve “on” (up). The wash down gun is used to control the spray lance and the 1/4”...

  • Page 28: Venturi Pump - 77763700 (Optional)

    Venturi Pump Attachment- 77763700 (Optional) How the Venturi Effect works. The venturi effect uses the venturi pumping attachment and your Spartan Jetter to create Jetter HP In. a vacuum effect to drain standing water. In Fig. 9, the black circles represent water Discharge from the jetter and the white circles represent the water to be pumped.

  • Page 29: Pump System Malfunction Chart

    746 Pump System Malfunction Chart Use SAE 90 Gear Oil Page 29...

  • Page 30: Engine Troubleshooting

    Engine Troubleshooting When troubles occur, be sure to check the simple causes which, at first, may seem too obvious to be considered. For example, a starting problem could be caused by an empty fuel tank. Engine Will Not Crank 1. Empty fuel tank 1.

  • Page 31: General Troubleshooting

    General Troubleshooting Symptom Possible Causes Corrective Action Engine will not Run No Fuel Fill Fuel Tank Confirm electric fuel pump is working Low water level Fill water tank Check low water switch Battery is discharged charge or jump battery Low pressure or flow Clogged inlet filter Clean inlet filter element Jetter nozzle is worn...

  • Page 32: How To Use Parts & Accessories Section

    How To Use Parts & Accessories Section Spartan Tool will supply all parts or accessories you require as quickly as possible. In order to do so, we must have information from you, including machine serial number and part numbers. Please record the VIN number of your machine in the space provided below: Spartan Model 746 VIN No.

  • Page 33: Wiring Diagrams

    Wiring Diagram Trailer Lights Page 33...
  • Page 34 Wiring Diagram Kohler Engine wires Page 34...
  • Page 35 Wiring Diagram 746 Gasoline Jetter Page 35...
  • Page 36 Wiring Diagram 746 LP Jetter Page 36...

  • Page 37: Lp Gas Operation

    LP Gas Operation Check Before Starting Check that crankcase is filled to the full mark on the dipstick. (See Fuel and Oil recomendation section). Make sure that the propane tank is installed correctly and secure. Open the water supply valve. Verify that the high pressure water valve at the hose reel is in the Off position. Starting The Engine Open the LP Gas tank shut off valve, (counter clockwise).

  • Page 38: Final Assembly Gasoline- 74600000

    746 Gasoline Final Assembly 74600000 Page 38...
  • Page 39 746 Gasoline Final Assembly 74600000 Page 39...
  • Page 40 746 Gasoline Final Assembly (cont.) Page 40...
  • Page 41 746 Gasoline Final Assembly (cont.) Page 41...
  • Page 42 746 Gasoline Final Assembly (cont.) Item # Qty Part # Description 00113600 SCREW, HX HD 1/4-20 X 5/8 00113700 SCREW, HX HD 1/4-20 X 3/4 00113901 SCREW, HX HD 1/4-20 X 1 ZN 00115300 SCREW, HX HD 5/16-18 X1- 1/4...
  • Page 43 74600100 FENDER, CURB SIDE 74600200 WELDMENT, FENDER STREET 74600300 WELDMENT, STREET SIDE FRONT 74600400 WELDMENT, CURB SIDE FRONT 74602500 DECAL, SPARTAN 746 W/ LOGO 74602600 DECAL, SPARTAN 746 LONG 74604400 HARNESS, WIRING 746 75814700 STRAP, BATTERY HOLD DOWN 75815100 DECAL, GASOLINE ONLY...
  • Page 44 746 Gasoline Final Assembly (cont.) Item # Qty Part # Description 77770800 NIPPLE, HEX 1/2 NPT 77785900 HOSE PUSH LOK 3/4 77800600 ASSY, HOSE GUARD 2" 74301200 HYDRANT FILL ASSY 743 79804200 TIRE, 225/75R15 79811400 ELBOW, 90 DEG STREET 1-1/2 POLY...
  • Page 45 746 Gasoline Final Assembly (cont.) Item # Qty Part # Description 79921710 CLAMP, TANK FILL PIPE 79921800 WELDMENT, FRONT CROSS BRACE 79921850 FLANGE, REAR CROSS BRACE 79921900 WELDMENT, REAR CROSS MEMBER 79931800 FILL TEE-ULTMATE WARRIOR 79936600 WELDMT, S-SIDE ULT-WARRIOR AXLE MOUNT 79936400 WELDMT, C-SIDE ULT-WARRIOR AXLE MOUNT 79942600 WASHER, FLAT SAE 1/2"...

  • Page 46: Final Assembly Lp Gas 746000Lp

    746 LP Gas Final Assembly 746000LP Page 46...
  • Page 47 746 LP Gas Final Assembly (cont.) Page 47...
  • Page 48 746 LP Gas Final Assembly (cont.) Page 48...
  • Page 49 746 LP Gas Final Assembly (cont.) Page 49...
  • Page 50 746 LP Gas Final Assembly (cont.) Page 50...
  • Page 51 746 LP Gas Final Assembly (cont.) Page 51...
  • Page 52 746 LP Gas Final Assembly (cont.) Item # Qty Part # Description 00113600 SCREW, HX HD 1/4-20 X 5/8 00113700 SCREW, HX HD 1/4-20 X 3/4 00113901 SCREW, HX HD 1/4-20 X 1 ZN 00115300 SCREW, HX HD 5/16-18 X1- 1/4...
  • Page 53 74600100 FENDER, CURB SIDE 74600200 WELDMENT, FENDER STREET 74600300 WELDMENT, STREET SIDE FRONT 74600400 WELDMENT, CURB SIDE FRONT 74602500 DECAL, SPARTAN 746 W/ LOGO 74602600 DECAL, SPARTAN 746 LONG 74604400 HARNESS, WIRING 746 75814700 STRAP, BATTERY HOLD DOWN 75815300 BOX, BATTERY (MODIFIED)
  • Page 54 746 LP Gas Final Assembly (cont.) Item # Qty Part # Description 74301200 HYDRANT FILL ASSY 743 79804200 TIRE, 225/75R15 79811400 ELBOW, 90 DEG STREET 1-1/2 POLY 79812000 HOSE BARB, 1-1/4 POLYPRO 79812100 BARB, HOSE 1-1/2 MPT X 1-1/2 POLY 79853500 ADJUSTABLE COUPLER 2"...
  • Page 55 746 LP Gas Final Assembly (cont.) Item # Qty Part # Description 79921710 CLAMP, TANK FILL PIPE 79921800 WELDMENT, FRONT CROSS BRACE 79921850 FLANGE, REAR CROSS BRACE 79921900 WELDMENT, REAR CROSS MEMBER 79931800 FILL TEE-ULTMATE WARRIOR 79936600 WELDMT, S-SIDE ULT-WARRIOR AXLE MOUNT 79936700 WELDMT, C-SIDE ULT-WARRIOR AXLE MOUNT 79942600 WASHER, FLAT SAE 1/2"...

  • Page 56: Reel Assembly - 74024200

    Assy, Reel High Pressure 740 74024200 INCLUDED WITH 74024300 Page 56...
  • Page 57 Assy, Reel High Pressure 740 74024200 Part # Description Item Qty 4 00113500 SCREW, HEX HD CAP 1/4-20 x 1/2 Part # Description Item Qty 2 10 00115100 SCREW, HEX HD CAP 5/16-18 X 1 1 74024530 BRACKET, HP VALVE 4 01950800 NUT, 1/4-20 HEX KEP 1 74024600 SOLENIOD 12 VDC (PART OF 74024300) 1 74024700 PUSH BUTTON WITH BOOT (PART OF 74024300)

  • Page 58: Power Pak - 74301000

    746 Power Pak - 74301000 Page 58...
  • Page 59 746 Power Pak - 74301000 Item # Qty Part # Description 9 00113700 SCREW,HX HD CAP 1/4-20 X 3/4 4 00117000 SCREW, HEX HD 3/8-16 X 2 11 00162700 WASHER, FLAT 3/8" 00165800 WASHER, LOCK SPLIT 3/8 00778000 NUT, HEX 1/2-13...

  • Page 60: Pump Assembly 74015000

    740 Pump Assembly 74015000 Part # Description Item 71707300 ELBOW, 90 DEG MALE 1/4 X 1/8 71707400 VALVE, CHECK W/ AIR VALVE 75803400 BUSHING, REDUCER 3/4 X 1/8 77724300 ELBOW, 90 DEG STREET 1/4 STEEL 77742600 BUSHING, REDUCER 3/4 X 1/2 79802500 PUMP, GIANT MODEL LP301A 79803700 UNLOADER, GIANT MODEL 22973C 79803800 VALVE, DUMP GIANT MODEL 22568...

  • Page 61: Axle, Tire & Wheel - 79804200

    Assy, Tire & Wheel 79804200 ITEM QTY PART # DESCRIPTION 79851300 TIRE, 15" RADIAL-REPAIR PART 79851200 W HEEL, 15 X 6- REPAIR PART BULKHEAD FITTING 73827800 (73827800) Bulk head Fitting Part # Description Item Qty 73827700 Bulkhead Fitting, 1-1/4 73827500 Cap, PVC 2-1/12 NPT Page 61...

  • Page 62: Pump Parts List-79802500

    Pump Parts List 79802500 Part # Description Part # Description Item Qty Item Qty 1 79832000 CRANKCASE 31A 3 79835300 OIL SEAL 1 79832100 OIL FILLER PLUG ASSY 3 79835400 RETAINER, OIL SEAL 1 79832200 CRANKCASE COVER 32A 3 79835500 O-RING 1 79832300 O-RING, CRANKCASE COVER 3 79835600 SEAL 1 79832400 OIL SIGHT GLASS w/GASKET...

  • Page 63: Pump Exploded View-79802500

    Pump - Exploded View 79802500 Plunger Packing Kit Valve Kit 79838500 79838600 Item Qty Part Number Description Item Qty Part Number Description 3 79835800 Leakage Seal 79837300 Valve Seat 3 79836000 O-Ring, Seal Case 79837400 Valve Plate 38A 3 79836100 Support Ring 79837500 Valve Spring...

  • Page 64: Unloader - 79803700

    Unloader Giant 22973C 79803700 Page 64...
  • Page 65 Unloader Giant 22973C 79803700 Item Qty Part Number Description 79803701 VALVE BODY (GIANT 12232) 79803702 GUIDE PLUG (GIANT 12240) 79803703 O-RING (GIANT 12057) 79803704 GUIDE RING (GIANT 12241) 79803705 PISTON RING (GIANT 12242) 79803706 O-RING, VALVE STEM (GIANT 12204) 79803707 BACKUP RING, VALVE STEM (GIANT 12205) 79803708 BALL (GIANT 12207)

  • Page 66: Hand Crank Assembly - 79827300

    Assy, Hand Crank 79827300 Item Qty Part Number Description 79827400 Weldment, Hand Crank 79827800 Plastic Handle w/Bolt & Nut 77763500 Decal, Crank Assembly, 3/8” Anti-Turn Around 75866500 Item Qty Part Number Description 75866510 Nipple, 3/8" x 9" Long 73818400 Coupler, Female 3/8 Hose Page 66...

  • Page 67: Decal Package - 74604600

    746 Decal Package - 74604600 Item # Qty Part # Description 72706400 Decal, Untrained Personnel 77763500 Decal, Crank 77740300 Decal, Clamp 77749500 Decal, Hitch Coupler 77766300 Label, Danger "No Smoking" 74602500 Decal, 746 (w/Logo) 77739800 Decal, Caution Rear Reel 77739900 Decal, Warning Rear...

  • Page 68: Wash Down Package - 73817300

    Wash Down Accessory Package 73817300 Part # Description Item 73816500 ADAPTER, SW IVEL 3/8 M X 3/8 F 77719500 HOSE, 1/4" X 75' 77721400 COUPLER, QUICK GUN MALE 77799800 HANDGUN LANCE VNOZZLE ASSEMBLY 77815800 NOZZLE, 1/4" DOMED (6) HandGun Lance Assembly 77799800 Part # Description...

  • Page 69: Accessories

    746 Optional Accessories P a rt # D e sc ri p ti o n 7 5 8 0 0 9 0 0 N o z z le , O p e n 7 5 8 0 0 8 0 0...

  • Page 70: Tire Safety Information

    Tire Safety Information This portion of the User’s Manual contains tire safety information as required by 49 CFR 575.6. The National Traffic Safety Administration (NHTSA) has published a brochure (DOT HS 809 361) that discusses all aspects of Tire Safety, as required by CFR 575.6. It can be obtained and downloaded from NHTSA, free of charge, from the following web site: http://www.nhtsa.dot.gov/cars/rules/TireSafety/ridesonit/tires_index.html Tire Safety Terminology Glossary...
  • Page 71 If they appear even with the outside of the tread, the tire should be replaced. Replacement tires should be the same size as the original tires. To prevent error and maintain safety, it is recommended that all replacement parts be purchased through Spartan Tool LLC. Page 71...
  • Page 72 Tire Safety Information Tire Balance and Wheel Alignment Tires must be properly balanced to avoid vibrations and shaking of the trailer. A wheel alignment adjusts the angles of the wheels to position them correctly relative to the trailer’s frame. Such adjustments can maximize the life of the tires, but should be performed by a qualified technician.

  • Page 73: Safety Information

    If you believe that your vehicle has a defect that could cause a crash or could cause injury or death, you should immediately inform the National Highway Traffic Safety Administration (NHTSA) in addition to notifying Spartan Tool LLC. If NHTSA receives similar complaints, it may open an investigation, and if it finds that a safety defect exists in a group of vehicles, it may order a recall and remedy campaign.

  • Page 74: Warranty

    Spartan Tool will direct where to take or send the equipment for service. If the defect is covered by the warranty, Spartan Tool will repair or replace, at its option, the defective equipment, without charge for labor or materials. (Freight and insurance are the purchaser’s responsibility.)
