Summary of Contents for Atlas Equipment RJ6

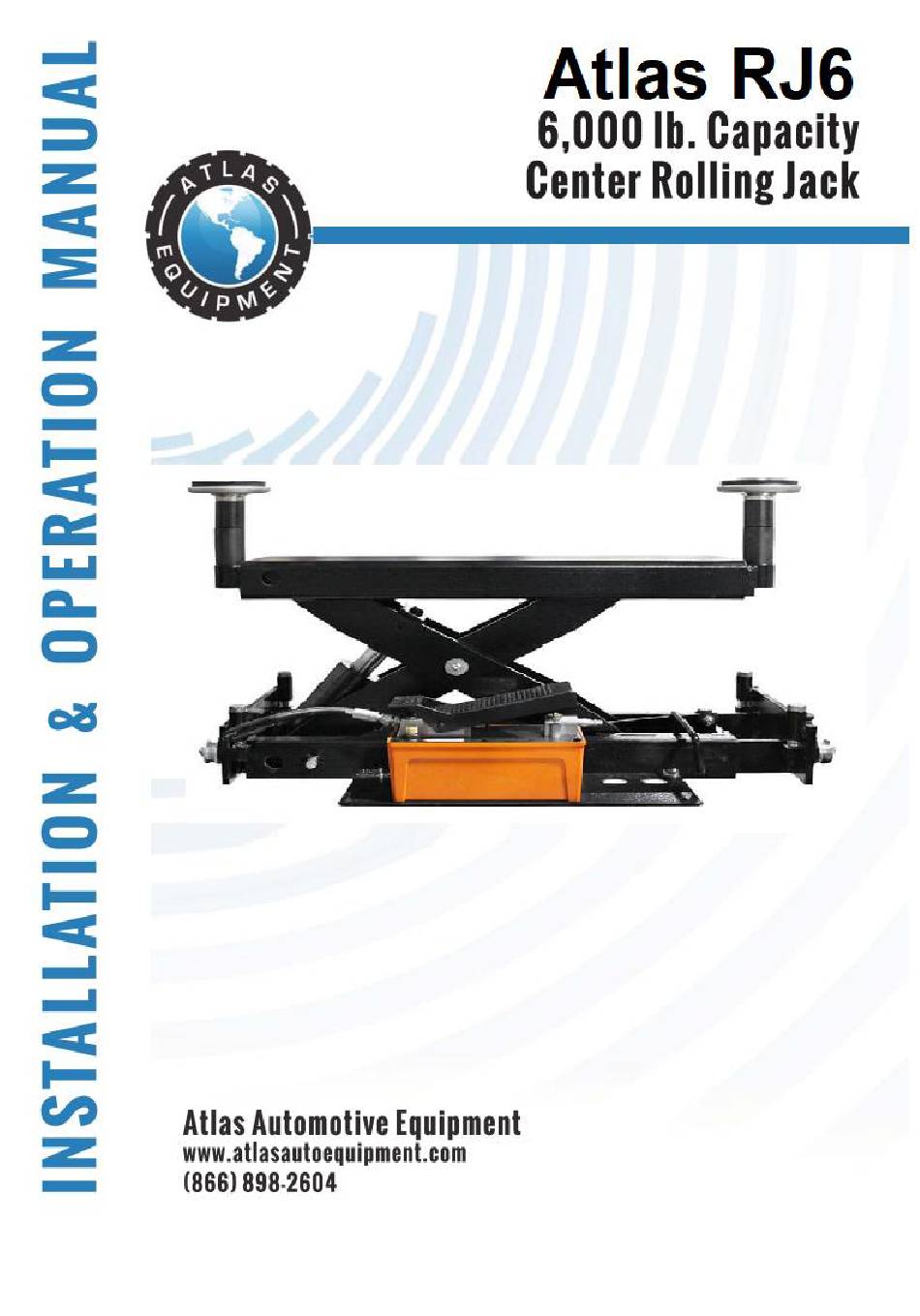

- Page 1 1 / 11 Rev.2 2024...
-
Page 2: Table Of Contents
CONTENTS GENERAL INFORMATION PRODUCT DESCRIPTION INSTALLATION OPERATION MAINTENANCE TROUBLESHOOTING 2 / 11 Rev.2 2024... -
Page 3: General Information
CHAPTER 1 – GENERAL INFORMATION !CAUTION! Before using this product, read and fully understand this manual. Read every section of this manual carefully before operating the rolling jack, following the guidelines provided within this document will prevent damage and injury during operation. The manufacturer/supplier is not liable for possible problems, damage, accidents, etc. -
Page 4: Product Description
CHAPTER 2 - DESCRIPTION 2.1 DESCRIPTION (Ref. Figure 1) This air/hydraulic rolling jack has been designed to be placed on a lift for maintenance of vehicles. This chapter describes the unit’s principal elements, allowing the user to be familiar with the rolling jack. - Page 5 2.2 MAIN FEATURES Capacity 6,000 lbs (2700 Kgs) Max. lifting height with no pad extensions 19 in. Min. lowered height 9.25 in. 33 – 54 in. Lifting points adjusted (Center to Center) 32 – 50 in. Base adjustable Lifting time 20 s Noise level 70 dB(A)/1m...
- Page 6 2.5 HYDRAULIC PLAN (Figure 2) Hydraulic cylinder Air hydraulic pedal pump 6 / 11 Rev.2 2024...
-
Page 7: Installation
CHAPTER 3 – INSTALLATION HYDRAULIC LINE CONNECTION (ref. figure 3) • Connect hydraulic hose to the fittings; • Tighten thoroughly; • Connect the air-hydraulic pump to an external air supply (not included with jack); • Check the pneumatic control operations for proper performance. For extended service and proper operation, it is recommended that external air supply include a water separator, lubricator and pressure reducer. -
Page 8: Operation
CHAPTER 4 - OPERATION Never operate the lift except for intended purpose. Never exceed the rated lifting capacity. Never raise the jack more than the rated height. CONTROLS Controls for operating the jack are: Figure 4 – CONTROLS OF BRIDGE JACK LIFTING SIDE OF PEDAL (1) •... - Page 9 LIFTING Never raise the jack beam beyond rated height. The manufacturer will not be responsible for the damage because of the incorrect operation. • Check and keep the lift rail channel clean of debris and any object that may hinder the movement of the bridge jack.
-
Page 10: Maintenance
CHAPTER 5 - MAINTENANCE Only trained personnel who know how the jack works, should be allowed to service the jack. To properly service the lifting jack, the following should be carried out: • use only genuine spare parts as well as equipment suitable for the work required; •... -
Page 11: Troubleshooting
CHAPTER 6 - TROUBLESHOOTING A list of possible troubles and solutions is given below: ROUBLE OSSIBLE AUSE OLUTION The jack does not raise The oil in the pump reservoir is not Add hydraulic oil sufficient. The pump is faulty Check and replace if necessary. The lifting capacity is The hydraulic pump is faulty Check the pump and replace, if...
