Summary of Contents for Atlas Equipment RJ-8000

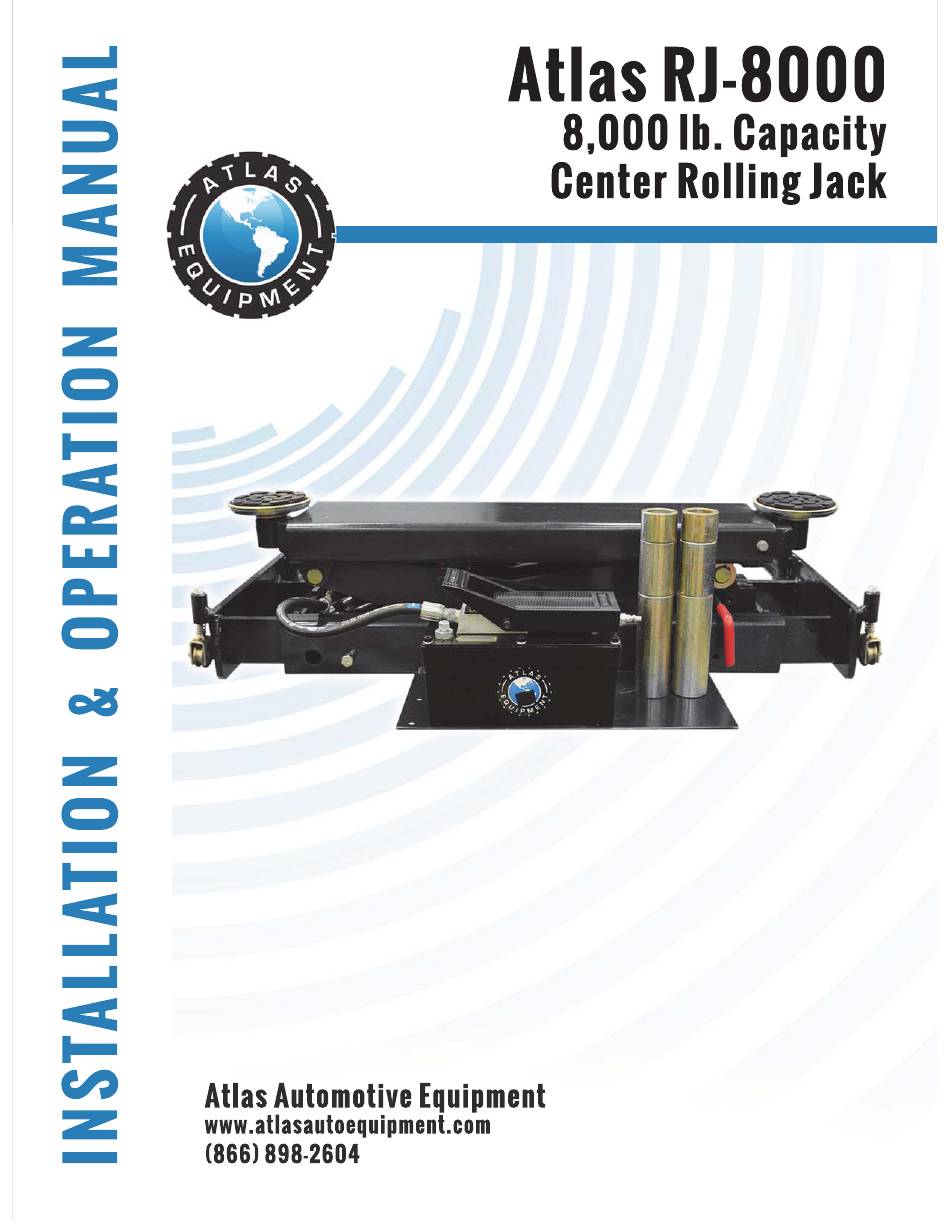

- Page 1 Replace This With Cover PDF...
- Page 2 Read this entire manual before operation begins. Record below the following information which is located on the serial number data plate. Serial No. Model No. Date of Installation...
-
Page 3: Table Of Contents
Contents Specifi cations ... . . 4 Installation ....5 Maintenance & Service ..7 Exploded View . -
Page 4: Specifi Cations
• Can be used separately or match with lifts (four post, scissors, etc.) • Adjustable adapter assembly Speci fi cations Lifting Lifting Lifting Overall Overall Min. Gross Air (Psi) Capacity Height Times Width Depth Height Weight 8000 lbs 20” 40” 23” 10” 330 lbs 70-115 Specifications RJ-8000... -
Page 5: Installation
Fill air into the oil pump (Fig.5) Raise the Jack and lock the Jack in the safety lock (Fig. 6) Upper Extensions 5”, 2.5”, 1.5” adapters Fig. 3 Fig. 4 Lock The Jack Press Down And Fill With Air Fig. 5 Fig. 6 RJ-8000 Installation... - Page 6 Open The Safety Device By Release The Safety Device Pushing The Safety Device Handle Fig. 7 Fig. 8 Press the control plate of the air pump to lower the jack. Press The Control Plate Down Level Position Fig. 9 Fig. 10 Installation RJ-8000...
-
Page 7: Maintenance & Service
Maintenance & Service Check all connectors, bolts and pins to insure proper mounting Lubricate all moving parts with lubricant Maintenance & Service RJ-8000... -
Page 8: Exploded View
Exploded View Cylinder Exploded View RJ-8000... -
Page 9: Parts List
Support Ring 27-2 670006 Head Cap 27-8 201030 Y Ring 27-3 670007 Bore Weldment 27-9 201030A Support Ring 27-4 670008 Piston Rod 27-10 206069 O Ring 27-5 670009 Piston 27-11 206071 Hex Bolt 27-6 201031 O Ring Parts List RJ-8000...
