EGO Power Plus LB7650E - CORDLESS BLOWER Manual

SAFETY SYMBOL

warning Safety Alert Always wear ear protection when operating this product.
Always wear safety goggles or safety glasses with side shields and a full face shield when operating this product. Do Not Expose To Moisture
Keep all bystanders at least 15m away. Guaranteed sound power level. Noise emission to the environment according to the European community's Directive.
Direct Current IPX4 Ingress Protection Degree
m/s Meters Per Second m3/h Cubic Meter Per Hour
V Voltage kg Kilogram
min Minutes min Minutes
N Newton N Newton

SPECIFICATIONS

Voltage 56V
Maximum air volume at nozzle m3/h
Maximum air velocity m/s (without tapered nozzle)
m/s (with tapered nozzle)
Maximum blowing force N
Approximate run time (with EGO BA2800T 56V Battery 5.0Ah) min (Low speed)
min (High speed)
min (Boost mode)
Recommended Operating Temperature -15°C - 40°C
Recommended Storage Temperature -20°C - 70°C
Weight (without battery pack) 2.1 kg
Measured sound power level LWA 98.52 dB(A)
K=0.85 dB(A)
Sound pressure level at operator's ear LPA 82.8 dB(A)
K=2.5 dB(A)
Guaranteed sound power level LWA (measured according to 2000/14/EC) dB(A)
Valuation of vibration ah 0.758 m/s2
K=1.5 m/s2
  • The declared vibration total value has been measured in accordance with a standard test method and may be used for comparing one tool with another;
  • The declared vibration total value may also be used in a preliminary assessment of exposure.

NOTICE: The vibration emission during actual use of the power tool can differ from the declared value in which the tool is used; In order to protect the operator, user should wear gloves and ear protectors in the actual conditions of use.

DESCRIPTION

PRODUCT DESCRIPTION AND PACKING LIST

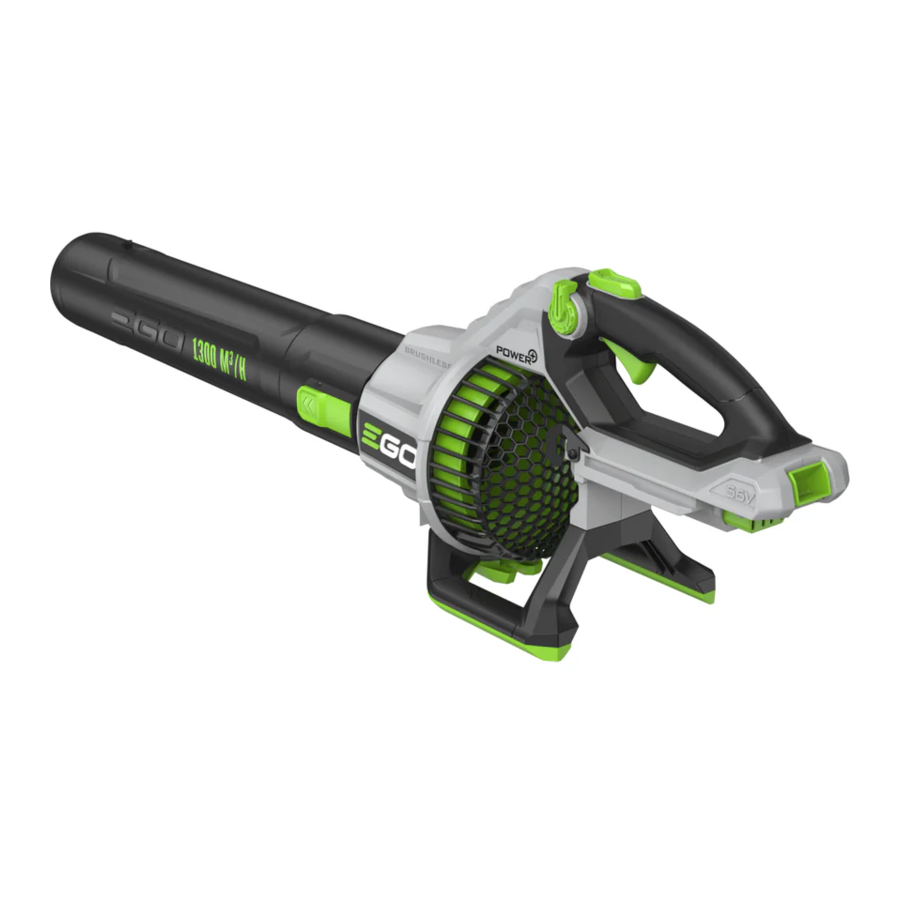

KNOW YOUR BLOWER (FIG. A1)

  1. Speed/Lock-On Dial
  2. Boost Button
  3. Air-Speed Trigger
  4. Battery-Release Button
  5. Latch
  6. Electric Contacts
  7. Ejection Mechanism
  8. Air Intake
  9. Base
  10. Tube-Release Button
  11. Blower Tube
  12. Tapered Nozzle
  13. Spread Nozzle

PACKING LIST

See FIG. A1

RECOMMENDED ACCESSORIES
PART NAME MODEL NUMBER
Gutter Cleaning Attachment AGC1000
Shoulder Strap AP1500

ASSEMBLY

APPLICATION

You may use this product for the purposes listed below:

  • Clearing hard surfaces such as driveways and walkways.
  • Keeping decks and driveways free from leaves and

NOTICE: The tool is to be used only for its prescribed purpose. Any other use is deemed to be a case of misuse.

ASSEMBLING/REMOVING THE UNIT TUBE

  • To Assemble (Fig. B1 & B2 )
    Align the groove and push the tube onto the blower housing until you hear a "click".
    ASSEMBLING THE UNIT TUBE - Step 1
    ASSEMBLING THE UNIT TUBE - Step 2
  • To Remove (Fig. B3)
    Press the tube-release button and remove the tube.
    ASSEMBLY - REMOVING THE UNIT TUBE

ASSEMBLING/REMOVING THE UNIT TAPERED/SPREAD NOZZLE

  • To Assemble (Fig. C1 & C2)
    Align the groove in the tapered nozzle with the tube knob and push the nozzle onto the tube until it snaps into place
    ASSEMBLY - ASSEMBLING UNIT TAPERED/SPREAD NOZZLE
  • To Remove (Fig. C3)
    Press and hold the nozzle-release button to disengage the latch, then pull the nozzle straight from the blower tube.
    Follow the same sequence to assemble or remove the spread nozzle.
    ASSEMBLY - REMOVING THE UNIT TAPERED/SPREAD NOZZLE

OPERATION


Before each use, inspect the entire product for damaged, missing, or loose parts, such as screws, nuts, bolts, caps, etc. Tighten securely all fasteners and caps and do not operate this product until all missing or damaged parts are replaced.

ATTACHING/DETACHING THE BATTERY PACK

Use only with EGO's battery packs and chargers listed in Fig. A2.
Recommended battery packs and chargers

FULLY CHARGE BEFORE FIRST USE

To attach
Align the battery ribs with the mounting slots and press the battery pack down until you hear a "click" (Fig. D1).
OPERATION - ATTACHING BATTERY PACK FOR CHARGING

D1-1 Battery Rib D1-2 Mounting Slot
D1-3 Battery-release button

To detach
Depress the battery-release button and pull the battery pack out (Fig. D2).
OPERATION - DETACHING THE BATTERY PACK

STARTING/STOPPING THE UNIT

OPERATION - STARTING/STOPPING THE UNIT
(Fig. E)

E-1 Air-speed Trigger E-2 Speed/Lock-on Dial
E-3 Boost Button

Air-speed trigger only

  1. Depress the air-speed trigger to turn on the blower.
  2. The air speed of the blower is controlled with the variable speed trigger. More pressure on the trigger results in higher blowing speeds; less pressure on the trigger results in lower blowing speeds. Adjust the speed to suit the task at hand.
  3. Release the air-speed trigger to turn off the blower.

Speed/Lock-on dial only

The blower can be locked at any speed with the speed lock-on dial.

  1. Turn the speed/lock-on dial clockwise to start the blower. The air speed will increase as the dial is rotated clockwise.
  2. To decrease the air speed, turn the speed/lock-on dial counterclockwise.
  3. Keep turning the speed/lock-on dial counterclockwise to the off position to stop the blower.

NOTICE: If the speed/lock-on dial is not turned back to the off position before the battery is removed, the blower will not start when a fully charged battery is installed. This is a protection feature to help prevent accidental startup. Depress the air-speed trigger to deactivate the protection and start the blower.

Boost mode

Press the boost button while working to temporarily increase the air speed to the maximum level. The blower will resume the previous speed when the boost button is released.

TIPS FOR USING THE DEVICE

  • To keep from scattering debris, blow around the outer edges of a debris pile. Never blow directly into the center of a pile.
  • To reduce sound levels, limit the number of pieces of power equipment used at any one time.
  • Use rakes and brooms to loosen debris before blowing. In dusty conditions, slightly dampen surfaces if water is available.
  • Conserve water by using power blowers instead of hoses for many lawn and garden applications, including areas such as gutters, screens, patios, grills, porches, and gardens.
  • The edge of the tapered nozzle helps with removing wet leaves and clean out gaps in the sidewalk.
  • Watch out for children, pets, open windows, or freshly washed cars, and blow debris safely away.
  • After using blowers or other equipment, clean up! Dispose of debris properly.

MAINTENANCE

GENERAL MAINTENANCE

Avoid using solvents when cleaning plastic parts. Most plastics are susceptible to damage from various types of commercial solvents and may be damaged by their use. Use of a piece of clean cloth to remove dirt, dust, oil, grease, etc.


Do not at any time let brake fluids, gasoline, petroleum-based products, penetrating oils, etc. come in contact with plastic parts. Chemicals can damage, weaken or destroy plastic which may result in serious personal injury.

STORAGE

  • Remove the battery pack from the blower.
  • Clean all foreign material from the air intakes of the blower.
  • Store the blower indoors in a place that is inaccessible to children. Keep it away from corrosive agents, such as garden chemicals and de-icing salts.

TROUBLESHOOTING

PROBLEM CAUSE SOLUTION

The unit doesn't work

  • The battery pack is not attached to the blower.
  • Attach the battery pack to the blower.
  • No electrical contact between the blower and battery pack.
  • Remove battery, check contacts and reinstall the battery pack.
  • The battery pack is depleted.
  • Charge the battery pack.
  • The battery pack or blower is too hot.
  • Cool the battery pack and blower until the temperature drops below 67°C.
  • The speed/lock-on dial was not turned back to the off position before the battery was removed.
  • Depress the air-speed trigger to deactivate the protection and start the blower.

The air velocity decreases significantly

  • Excessive wearing of motor fan.
  • Contact EGO service center for repair.
  • The air inlet is blocked by debris.
  • Remove the battery pack, clear the debris.
