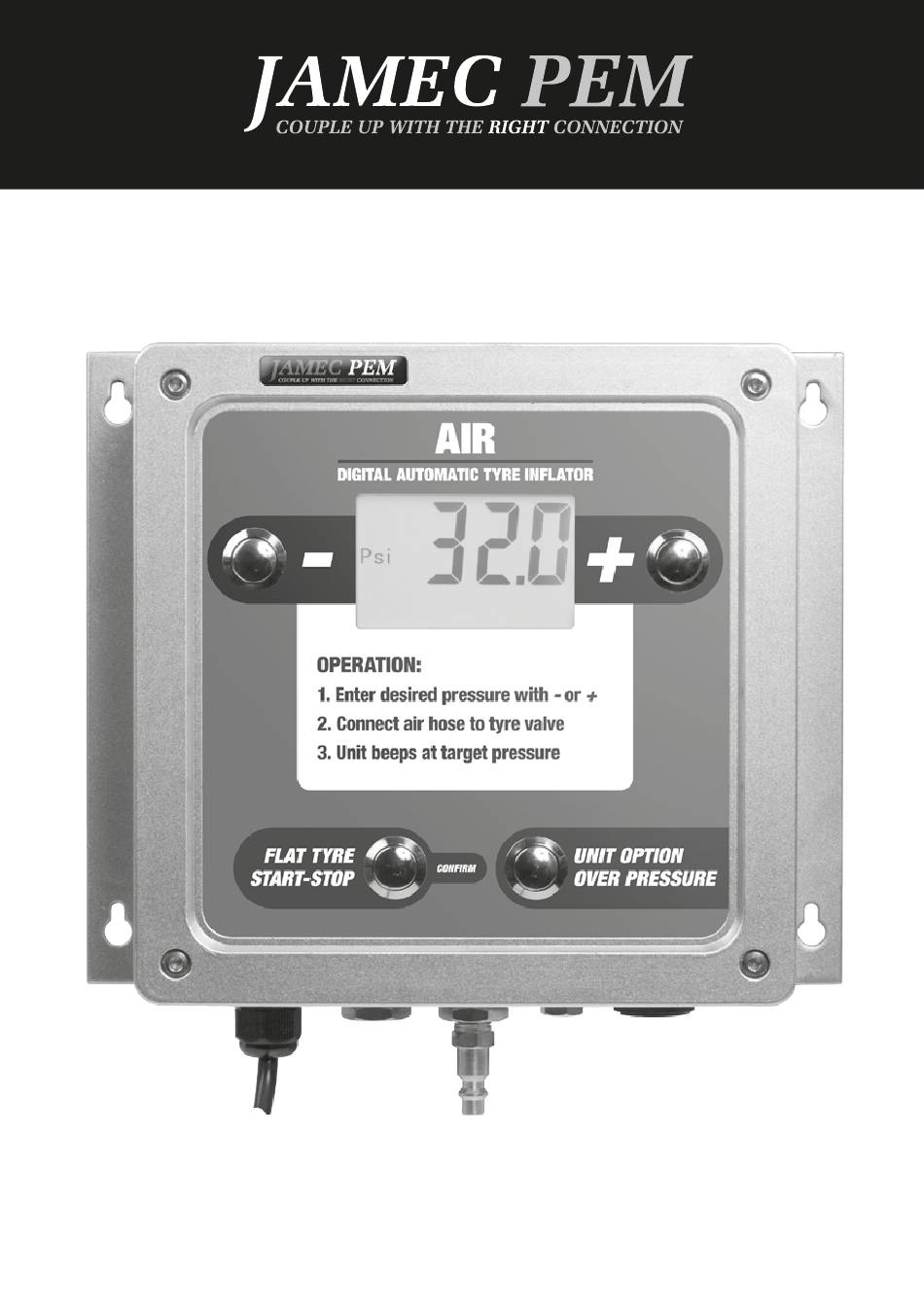

- Page 1 DIGITAL AUTOMATIC TYRE INFLATOR Operating Instructions Part No. 11.0545...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Thank you for selecting this Jamec Pem Automatic Tyre Inflator. Please read this Features ............2 manual before carrying out any installation Components List ......... 2 or service procedure. Installation ............ 3 This manual is an integral and essential part Warning . -
Page 3: Installation
INSTALLATION WARNING 1. Unpack the unit. To avoid the risk of personal injury, especially to the eyes, face or skin, DO NOT 2. H old the unit up on the wall and mark direct the air stream at any person, or any where the four (4) holes are to be drilled. part of the body. 3. Secure the unit using suitable fastener. This equipment is not intended for use by 4. Connect the air supply to the unit. -
Page 4: Product Identification
PRODUCT IDENTIFICATION CONTROL PANEL 1. Mounting Point (x 4) 2. - Target pressure control 3. + Target pressure control 4. Display 5. FLAT TYRE / CONFIRM Flat tyre mode air Start/Stop control; Function Select Confirm 6. Unit Option Unit of measure select; Over Pressure Setting set control Fig. 1 Control panel CONNECTIONS 7. Power cable 8. Pressurised Air Inlet 9. Air Hose Outlet 10. Exhaust Plug 11. B uzzer (Audible Warning) Fig. 2 Connections DISPLAY 12. U nit of measure 13. Pressure display 14. F unction selection 15. Rolling bar... -
Page 5: Operation
OPERATION Inflation and Deflation: 1. P ress + or - to select target pressure. The device includes the OPS (Over Pressure Setting) function which allows for the tyre’s 2. C onnect with tyre, ensure no air leaks, pressure to be set very high and then reduced inflator will start automatically. to the pre-determined pressure. This is very 3. W hen inflation is finished, the tyre inflator handy for use when a new tyre is fitted to a will stop automatically and BEEP to warn rim. users that inflation has reached target pressure. Unit of measure select: This device has four units of measure that can 4. D isconnect the air hose from tyre. be chosen by the user: • k Pa - kilopascals Functions: • b ar 1. P ress UNIT OPTION to enter the function... -
Page 6: Troubleshooting
TROUBLEShOOTING PRObLEm POSSIbLE CAUSE SOLUTION Check the pneumatic connection and Air leak Leak in the connection make sure of seals The inflator works, Obstruction in the filters or in air system Clean the filters and check the air tube but no air inflated Inflation does not Check the hose connection, make sure Air hose improperly connected... -
Page 7: Calibration Certificate
CALIBRATION CERTIFICATE This Digital Automatic Tyre Inflator has been calibrated in its normal working position on test equipment with an accuracy that is traceable to International Standards according to: 86/217/EEC AllowAblE TolErAncE ±0.08 up to and including 4 bar ±0.16 between 4 bar and 10 bar inclusive ±0.25 greater than 10 bar ±1.2 up to and including 58 p.s.i. -
Page 8: Specifications
SPECIFICATIONS MAINTENANCE Daily Maintenance Die cast aluminium Case The device does not require a particular enclosure maintenance routine but a check of the Degree of protection IP66 pneumatic connection is suggested frequently to make sure of correct air supply, the use of Dimensions 23L x 27W x 8.5H cm an air pre-filter is essential for this unit to Shipping weight 5.5 kg operate properly. 0.5 - 10 bar Inflation range (1000 kPa / 145 p.s.i. / Special Maintenance 10 kg / cm This is a sensitive piece of equipment if you...
