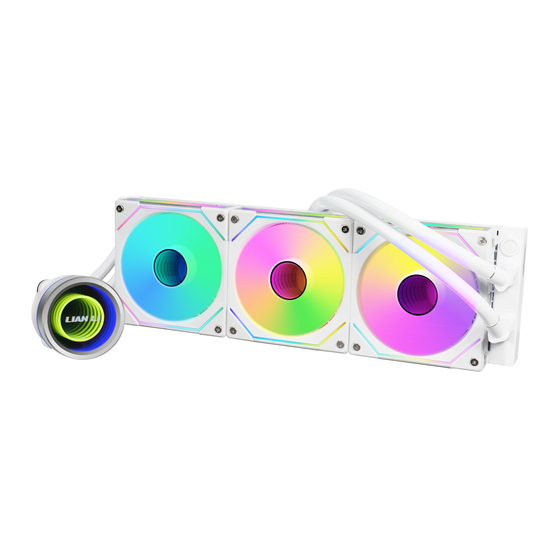

Summary of Contents for Lian-Li Galahad II Trinity Performance 360
- Page 1 Hardware List/零件盒部品⼀覽表/Liste du matériel (1 g) INSTALLATION GUIDE/安裝指南/GUIDE D'INSTALLATION - 1 -...
- Page 2 Apply thermal paste/ /Appliquer de la pâte thermique Intel LGA1700 / 115X / 1200 塗上散熱膏步驟 Adjust position/推動調整/Ajuster la position Use one at a time/ ⼀次使⽤⼀張即可 Utiliser un à la fois The control film direction depends on the CPU, please follow left reference to place the control film as different tube orientation/ 膜⽚⽅向根據...
- Page 3 Mount in the chassis/ Remove the outer cover/ 卸除外觀件 Retirer le couvercle extérieur 安裝於機箱 Monter dans le châssis Install the inner cover L & K/ 安裝 與 注意事項 Installez le couvercle intérieur L & K Customize pump cover/ /Personnaliser le couvercle de la pompe 更換冷頭外觀...
- Page 4 Cable connection of the pump/ /Câble de raccordement de la pompe Cable Connection Guide/ 接線指南 Guide de connexion des câbles 冷頭接線注意事項 Attention! The cable convex side on the interface shall face downward/ Warning! Do not connect the wrong type of LED 注意!線材接⼝凸點靠下安裝...
