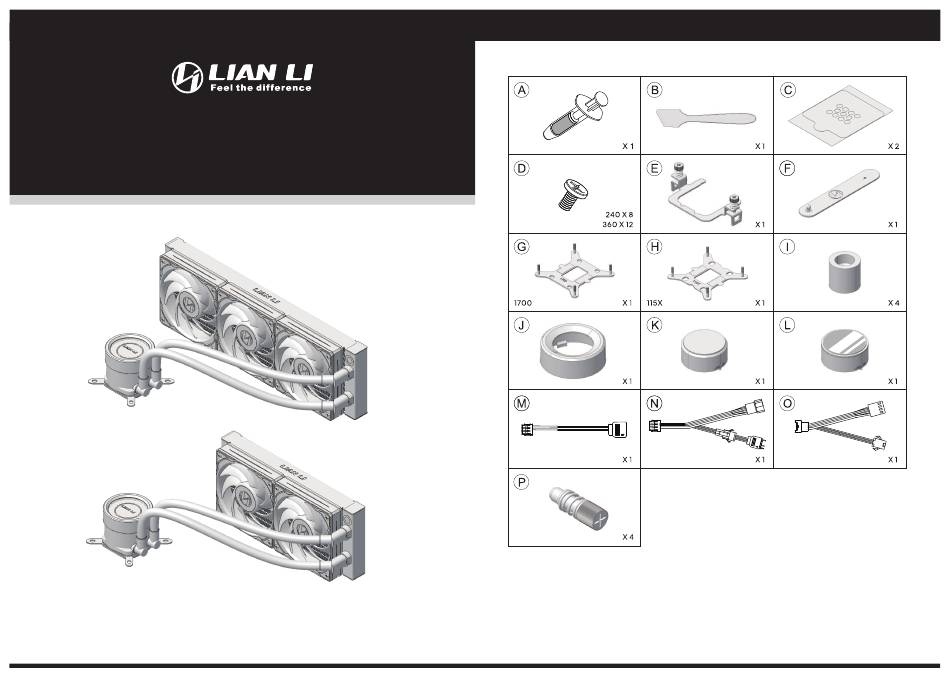

- Page 1 GA II TRINITY 240 / 360 Hardware List/零件盒部品⼀覽表/Liste du matériel GA II TRINITY 240 / 360 (1 g) Spare/備⽤/De rechange INSTALLATION GUIDE/安裝指南/GUIDE D'INSTALLATION - 1 -...
- Page 2 GA II TRINITY 240 / 360 GA II TRINITY 240 / 360 Apply thermal paste/ /Appliquer de la pâte thermique Intel LGA1700 / 115X / 1200 塗上散熱膏步驟 Use one at a time/ ⼀次使⽤⼀張即可 Inner way for 115X & 1200/ Utiliser un à la fois Outer way for 1700/ 內部適⽤115X &...
- Page 3 GA II TRINITY 240 / 360 GA II TRINITY 240 / 360 Mount in the chassis/ Remove the outer cover/ 卸除外觀件 Retirer le couvercle extérieur 安裝於機箱 Monter dans le châssis 240 x 8 pcs 360 x 12 pcs Install the inner cover L & K/ 安裝...
- Page 4 GA II TRINITY 240 / 360 GA II TRINITY 240 / 360 Cable connection of the pump/ /Câble de raccordement de la pompe Cable Connection Guide/ 接線指南 Guide de connexion des câbles 冷頭接線注意事項 Attention! The cable convex side on the interface shall face upward/ Warning! Do not connect the wrong type of LED 注意!線材接⼝凸點靠上安裝...
