Page 1

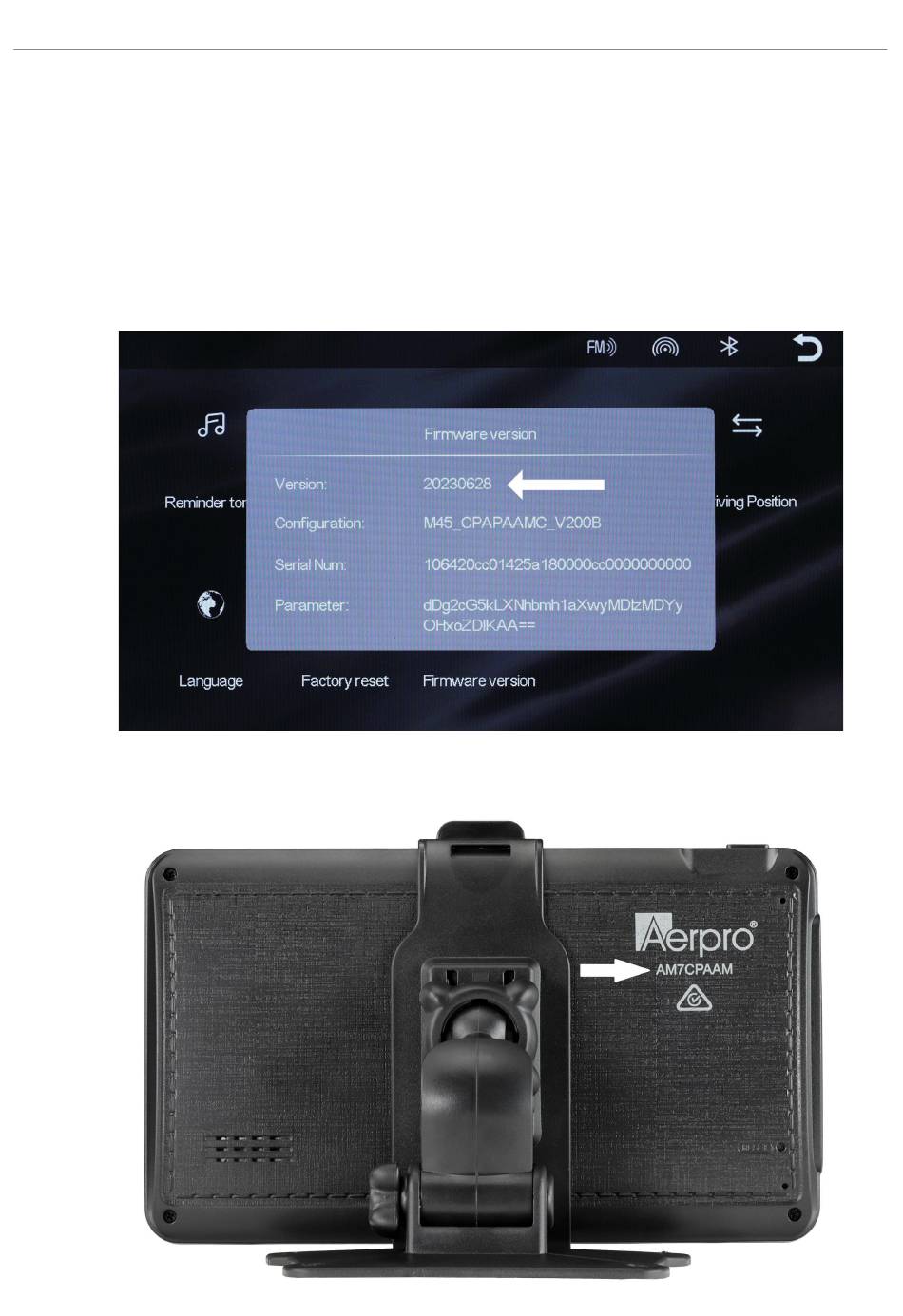

Firmware Update Procedure for AM7CPAAM, AM7M01, AM7M02R & XV7WSMR What's Required ● MicroSD Card 4GB-32GB ● MicroSD Card Adaptor ● Windows Computer NOTES: Please make sure no files of value are on the MicroSD card as it WILL BE FORMATTED and you will lose access to that data.
Page 2
Firmware Update Procedure for AM7CPAAM, AM7M01, AM7M02R & XV7WSMR 3. Navigate to https://tdj.com.au/firmware/ and find the brand then model of your device to download the zip file. You may also click the following link to take you directly to the folder for your model. The firmware file is inside the ‘Firmware Update’...
Page 3
Firmware Update Procedure for AM7CPAAM, AM7M01, AM7M02R & XV7WSMR 6. Navigate to the ‘PhoenixCard’ folder and open up the program called ‘PhoenixCard’. (You may get a pop up asking if you want to open, click yes)
Page 4
Firmware Update Procedure for AM7CPAAM, AM7M01, AM7M02R & XV7WSMR 7. Make sure that the selected MicroSD card in the PhoenixCard Program matches the MicroSD card you have just inserted. Otherwise you risk choosing the wrong drive to be formatted and will lose data. We will not be responsible for choosing the wrong storage device.
Page 5
Firmware Update Procedure for AM7CPAAM, AM7M01, AM7M02R & XV7WSMR 8. Click the ‘Img File’ button and navigate to the folder that was extracted earlier and choose the file that matches the model number followed by the date. Click open once file is selected...
Page 6
Firmware Update Procedure for AM7CPAAM, AM7M01, AM7M02R & XV7WSMR 9. Click the ‘Burn’ Button to put the firmware onto the MicroSD Card. 10. Once finished, safely remove the MicroSD card from the computer and insert it into your 7” Dashmount, make sure the unit is not powered/on.
Page 7
Firmware Update Procedure for AM7CPAAM, AM7M01, AM7M02R & XV7WSMR 11. Turn on the dash mount while the MicroSD card is inserted and you should see a green loading bar. Be patient and wait for the update to fully complete. It may take up to 3 minutes to update.
