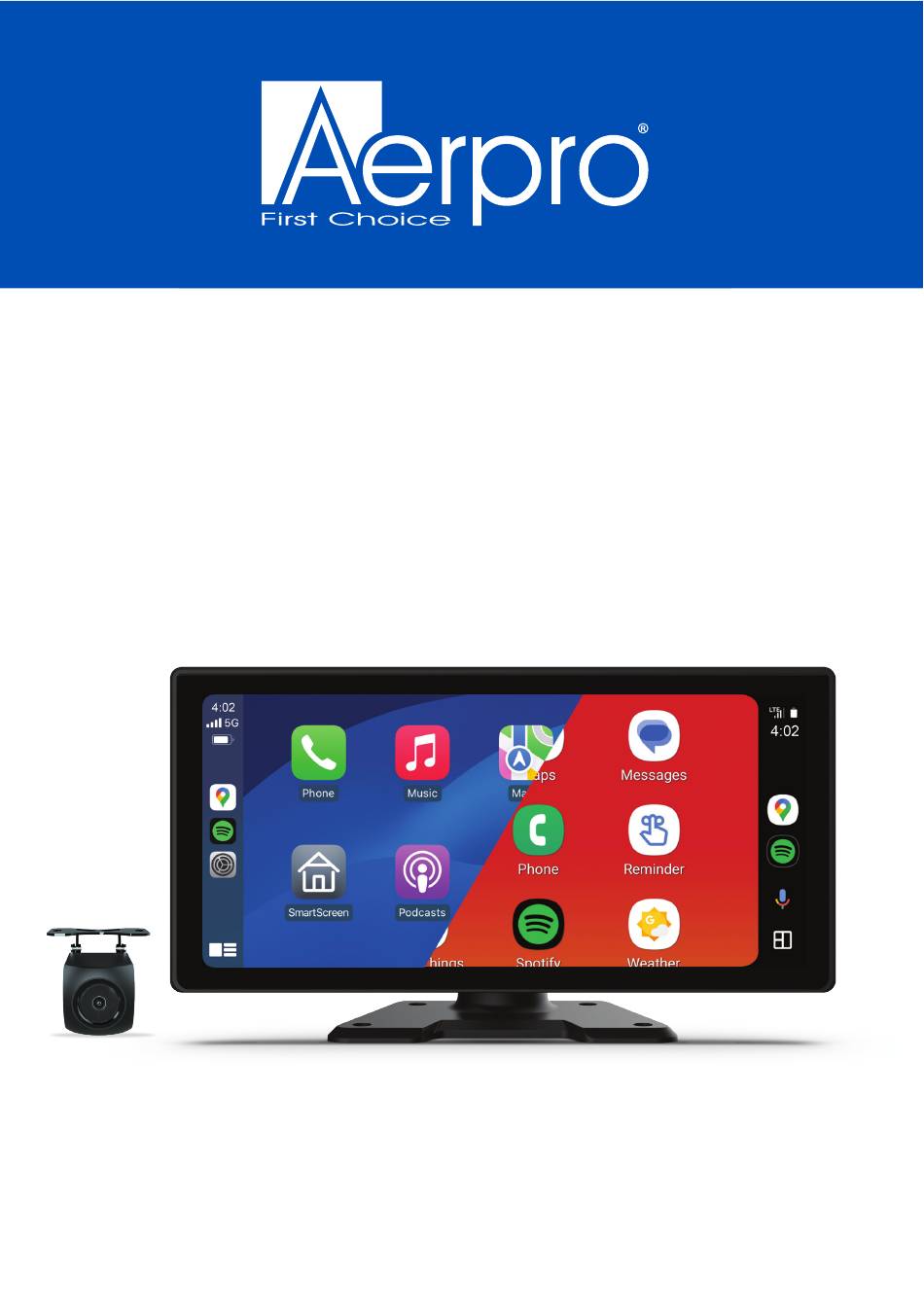

AM10M04
10.36" WIRELESS
SMARTPHONE MONITOR
with 1080p reverse camera
USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AM10M04 and is the answer not in the manual?

Questions and answers

Related Manuals for Aerpro AM10M04

Summary of Contents for Aerpro AM10M04

  • Page 1 AM10M04 10.36" WIRELESS SMARTPHONE MONITOR with 1080p reverse camera USER MANUAL...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Introduction..............2 Inclusions................2 product features ..............2 touch screen functions............3 Audio output settings ............4 Audio output settings (FM transmitter) ........4 Audio output settings (Speaker).........5 Audio output settings (Bluetooth)........5 Audio output settings (CarPlay & Android Auto)....6 Connecting via Apple CarPlay ...........7 Connecting via Android Auto ..........8 Connecting via Apple Airplay ..........9 Camera........

  • Page 3: Introduction

    Android Auto and Apple CarPlay for effortless smartphone connectivity. With wireless smartphone connectivity via Bluetooth & WiFi, you can effortlessly sync your smartphone to the AM10M04, and enjoy audio playback using a variety of options such as the FM transmitter function using your car's sound system or high-quality audio playback through Auxiliary Audio Out.

  • Page 4: Optional Accessories (Sold Separately)

    OPTIONAL ACCESSORIES (Sold separately) The AERPRO AM10M04 Wireless Smartphone Monitor supports up to 4 cameras with quad view display. One camera is included. Additional cameras sold separately. Visit our website for compatibility. PRODUCT STRUCTURE SD card input for updating firmware...

  • Page 5: Product Assembly

    PRODUCT ASSEMBLY The AERPRO AM10M04 Wireless Smartphone Monitor requires you to attach the stand to the mirror monitor with supplied parts. 1. Locate the 4 screw holes on the back of the mirror monitor. 2. Mount the threaded ring to the mirror monitor using the 4 small screws provided.
  • Page 6 PRODUCT ASSEMBLY Cont..4. Place the tightening nut over the swing arm and tighten. 5. Mount the stand base to the swing arm using the 1 larger screw provided. Once secured to the mirror monitor then attach the adhesive pad to the monitor stand.

  • Page 7: Touch Screen Functions

    TOUCH SCREEN FUNCTIONS Home button: Tap to return to home page Brightness button: Tap to adjust the screen brightness Volume button: Tap to adjust the volume CarPlay: Tap to connect apple carplay Android Auto: A dedicated car screen projection program for Android phones Camera: Tap to select the camera views Audio output: Tap to select the audio output mode Settings: Tap to enter the function setting interface...

  • Page 8: Audio Output Settings

    AUDIO OUTPUT SETTINGS As shown in the figure below, tap the [Audio Output] button to enter the audio output selection interface. AUDIO OUTPUT SETTINGS (SPEAKER) 1. Tap the Speaker tab along the top. The sound will be played from the internal speaker of the device.

  • Page 9: Audio Output Settings (Bluetooth)

    AUDIO OUTPUT SETTINGS (BLUETOOTH APPLE CARPLAY & ANDROID AUTO) 1. The CarPlay/Auto feature allows you to use the CarPlay features on the display whilst streaming audio to your factory audio system over Bluetooth if supported. 2. Make sure that the CarPlay/Auto feature is selected. 3.
  • Page 10 AUDIO OUTPUT SETTINGS (FM TRANSMITTER) Use the FM transmitter mode if you want to listen to audio on your cars sound system without connecting any wires. 1. Tap the [Audio Output] button on the home screen. Select the FM tab to use FM transmitter function.

  • Page 11: Connecting Via Apple Carplay

    3. Navigate to the Bluetooth settings on your compatible device and select AM10M04- XXX followed by some numbers and letters for pairing. 4. A pair message and a pairing request code may appear on your compatible device and head unit. Click allow to accept.

  • Page 12: Connecting Via Android Auto

    3. Navigate to the Bluetooth settings on your compatible device and select AM10M04- XXX followed by some numbers and letters for pairing. 4. A pair message and a pairing request code may appear on your compatible device. Click allow to accept.

  • Page 13: Camera

    CAMERA As shown in the figure below, tap the [Camera] icon to view camera inputs. Channel 1 (CH1): Tap to display camera 1 input in full screen Channel 2 (CH2): Tap to display camera 2 input in full screen Channel 3 (CH3): Tap to display camera 3 input in full screen Channel 4 (CH4): Tap to display camera 4 input in full screen Split screen display: Tap to display all input channels on screen simultaneously (2 Modes, H-view, Quad view)

  • Page 14: Settings

    SETTINGS As shown in the figure below, tap the [Settings] icon to enter the setting interface. SETTINGS-GENERAL As shown in the figure below, tap the [General] tab to enter the General settings interface. Then select the appropriate icon setting. Auto-dimming: ON / OFF / Night brightness / Start / End time Screen saver: Turn OFF / 10 sec / 30 sec / 1 min Driving position: Left Hand Drive / Right Hand Drive Split screen mode*: Full screen mode / Split screen mode (Split screen camera...

  • Page 15: Settings-Camera

    SETTINGS-CAMERA As shown in the figure below, tap the [Camera] tab to enter the Camera settings interface. Then select the appropriate icon setting. Camera count: Select either 2 or 4 camera input. Camera will display Dual or Quad display. Image mirror: Turn ON / OFF for camera CH1 / CH2 / CH3 / CH4. Reverse line calibration: Allows the user to adjust the reversing guidelines for CH2 only.

  • Page 16: Settings-System

    SETTINGS-SYSTEM As shown in the figure below, tap the [System] tab to enter the system settings interface. Then select the appropriate icon setting. Language: Multiple languages can be selected. Touch sound: Turn ON / OFF for touch screen sounds. Date and Time: Allows the user to enter the date and 12/24 hour time format. Factory reset: Restores the monitor back to factory settings.

  • Page 17: Safety Information & Warnings

    TECHNICAL ASSISTANCE Please retain this user guide for future reference. If you would like to download a digital copy of this manual, or other Aerpro manuals/software, please visit the Aerpro.com website and search for information on your model.
