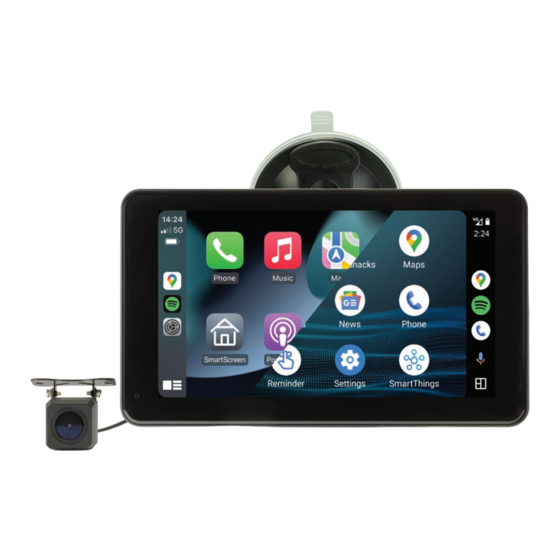

Aerpro AM7M02R User Manual

7” wireless smartphone monitor with reverse camera
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
AM7M02R
7" WIRELESS
SMARTPHONE MONITOR
with reverse camera
USER MANUAL
aerpro.com

Advertisement

Table of Contents
loading

Related Manuals for Aerpro AM7M02R

Summary of Contents for Aerpro AM7M02R

  • Page 1 AM7M02R 7” WIRELESS SMARTPHONE MONITOR with reverse camera USER MANUAL aerpro.com...

  • Page 2: Table Of Contents

    Contents Intoduction..............2 Interface display..............3 Audio output settings (FM transmitter) ........4 Audio output settings (AUX output)........5 Audio output settings (Monitor speaker) ......5 Audio output settings (Apple CarPlay & Android Auto) ...6 Connecting via Apple CarPlay ...........7 Connecting via Android Auto ..........8 Connecting via Apple Airplay ..........9 Connecting via Android Mirror Cast .........10 Bluetooth Music ..............11...

  • Page 3: Intoduction

    With wireless smartphone connectivity via Bluetooth & WiFi, you can effortlessly sync your smartphone to the AM7M02R, and enjoy audio playback using a variety of options such as the FM transmitter function using your car's sound system or high-quality audio playback through Auxiliary Audio Out.

  • Page 4: Interface Display

    Interface display 1. Screen off: Tap to turn off the screen. 2. Brightness: tap to adjust screen brightness 3. Camera/Connection shortcut: Click to view inputs 4. Volume/FM Transmit/Bluetooth/AUX: Changes with inputs 5. Settings: Click to enter the settings interface 6. Previous song: Click to switch to the previous song 7.

  • Page 5: Audio Output Settings (Fm Transmitter)

    Audio output settings (FM transmitter) Use the FM transmitter mode if you want to listen to audio on your cars sound system without connecting any wires. 1. Tap the Audio output icon on the home screen. Select the FM icon to use FM transmitter function. 2.

  • Page 6: Audio Output Settings (Aux Output)

    Audio output settings (AUX output) Output audio over auxiliary to your factory head unit system. 1. Tap the Audio Output icon on the home screen and select AUX along the bottom. 2. Plug in an AUX cable between the monitor's AUX output and the AUX input of your head unit.

  • Page 7: Audio Output Settings (Apple Carplay & Android Auto)

    Audio output settings (Apple CarPlay & Android Auto) The CarPlay/Auto feature allows you to use the CarPlay features on the display whilst streaming audio to your factory audio system over Bluetooth if supported. 1. Make sure that the CarPlay/Auto feature is selected. 2.

  • Page 8: Connecting Via Apple Carplay

    WiFi function on the compatible device. 3. Navigate to the Bluetooth settings on your compatible device and select AM7M02R- followed by some numbers and letters for pairing. 4. A pair message and a pairing request code may appear on your compatible device and head unit.

  • Page 9: Connecting Via Android Auto

    WiFi function on the compatible device. 3. Navigate to the Bluetooth settings on your compatible device and select AM7M02R- followed by some numbers and letters for pairing. 4. A pair message and a pairing request code may appear on your compatible device.

  • Page 10: Connecting Via Apple Airplay

    Connecting via Apple Airplay 1. Tap the Apple AirPlay icon on the home screen to activate Apple AirPlay function. 2. Connect a compatible Apple phone to the Wi-Fi displayed on your screen. Typically starts with CARLINK-XXXXX. The password is ‘12345678’. 3.

  • Page 11: Connecting Via Android Mirror Cast

    Connecting via Android Mirror Cast 1. Tap the Android Cast icon on the home screen to enter Android Mirroring where you can mirror your Android’s smartphone screen to your display. 2. Download the ‘TcLink’ app on your smartphone by scanning your QR code on screen.

  • Page 12: Bluetooth Music

    Bluetooth (Setup information) Here you will be able to see and edit the Bluetooth device name. The default name is typically AM7M02R- followed by a string of numbers and letters. You can turn Bluetooth off or on, see if a device is currently paired, unpair the current device or...

  • Page 13: Media Player

    Media Player Tap the [Media Player] icon on the home screen to enter the Media Player function which allows the user to play video or music files from an SD Card.

  • Page 14: Settings

    Settings Tap the [Settings] icon on the home screen to enter the Mirrors settings. Tap the icons to enter each setting, tap the return icon on the top right of the screen to exit settings. Setting Function Reminder Tone Turn ON / OFF Image mirror Turn ON / OFF Camera format...

  • Page 15: Camera Input

    Camera Input Tapping on the camera icon on the home screen will display the reverse camera. Tap the screen to reveal the home screen icon. Press to exit back to home the home screen. NOTE: The guidelines will not show when pressing this button. They will only show if the camera is wired to a reverse trigger and the car is in reverse.

  • Page 16: Inclusions

    • Size (182*116*66mm) • Weight (300g) Technical assistance If you need assistance setting up or using your Aerpro product now or in the future, call Aerpro Support Australia TEL: 03 – 8587 8898 FAX: 03 – 8587 8866 Mon-Fri 9am – 5pm...
