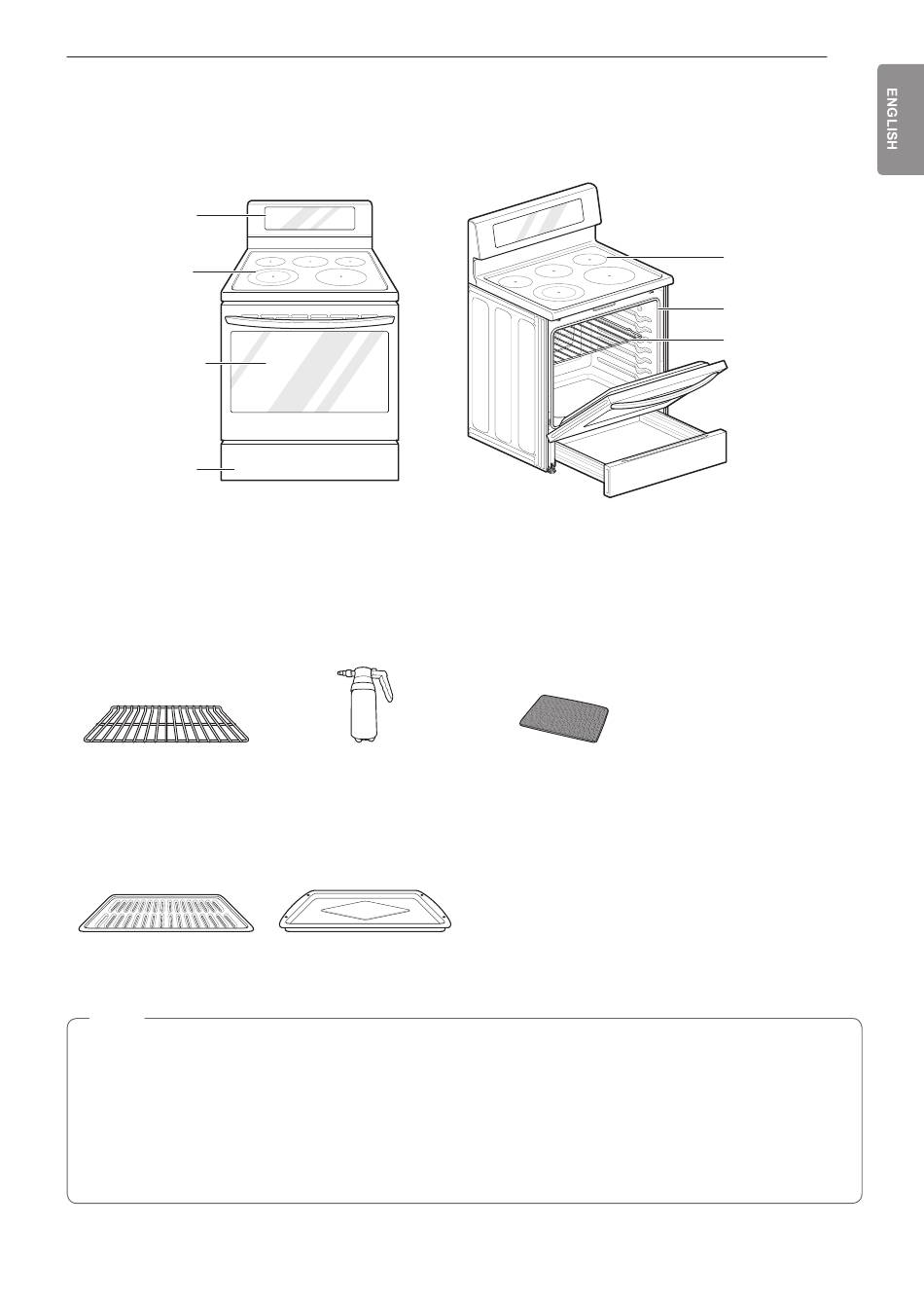

PRODUCT OVERVIEW
Parts
Controller
Cooktop
Oven door
Warming drawer /
Storage drawer
Accessories
Included Accessories
Standard Rack
- LRE3061/LRE3193 (2ea)
- LRE3083 (3ea)
Optional Accessories
Grid
NOTE
• Contact LG Customer Service at 1-800-243-0000 (1-888-542-2623 in Canada) if any accessories are
missing.
• For your safety and for extended product life, only use authorized components.
• The manufacturer is not responsible for product malfunction or accidents caused by the use of separately
purchased, unauthorized components or parts.
• The images in this guide may be different from the actual components and accessories, which are subject
to change by the manufacturer without prior notice for product improvement purposes.
Spray bottle
Non-scratch scouring pad
(1ea)
Broiler pan
PRODUCT OVERVIEW
(1ea)
9
Glass-ceramic
Gasket
Rack
