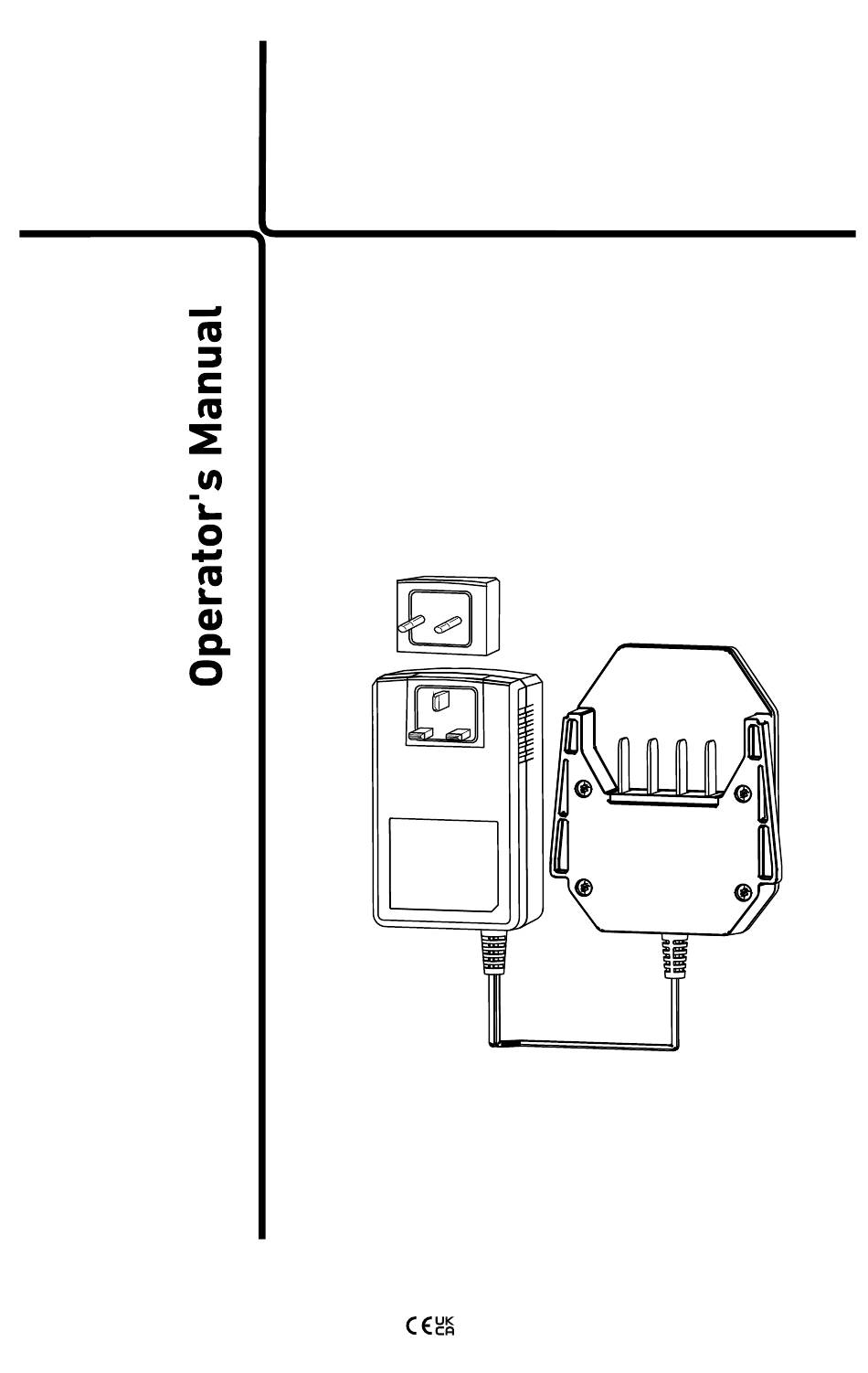

- Page 1 Form No. 3464-282 Rev A Flex-Force Power System ™ 1 AMP 60V MAX Battery Charger Model No. 86901—Serial No. 324000000 and Up *3464-282* Original Instructions (EN)
- Page 2 Introduction This battery charger is intended to be used by residential homeowners. This charger is designed to charge only Flex-Force 60V lithium-ion battery packs. It is not designed to charge any other batteries. Using this product for purposes other than its intended use could prove dangerous to you and bystanders.
-
Page 3: Safety Alert Symbol
Safety-Alert Symbol The safety-alert symbol (Figure 2) shown in this manual and on the machine identifies important safety messages that you must follow to prevent accidents. g000502 Figure 2 Safety-alert symbol The safety-alert symbol appears above information that alerts you to unsafe actions or situations and is followed by the word DANGER, WARNING, or CAUTION. -
Page 4: Important Safety Instructions
Safety IMPORTANT SAFETY INSTRUCTIONS SAVE THESE INSTRUCTIONS—This manual contains important safety and operating instructions for Flex-Force 60V lithium-ion battery packs and Flex-Force 60V lithium-ion battery chargers. Before using the battery charger, read all the instructions and cautionary markings on the battery charger, battery pack, and product using the battery pack. - Page 5 Charge the battery pack in a well-ventilated area only. Follow all charging instructions and do not charge the battery pack outside of the temperature range specified in the instructions. Otherwise, you may damage the battery pack and increase the risk of fire.
-
Page 6: Safety And Instructional Decals
Safety and Instructional Decals Safety decals and instructions are easily visible to the operator and are located near any area of potential danger. Replace any decal that is damaged or missing. decal161-3772 161-3772 1. Read the 3. Double Operator’s insulated Manual. - Page 7 Setup Installing the Correct Plug If necessary, remove and install the correct plug from the charger to match your receptacle as shown in Figure g347487 Figure 3...
-
Page 8: Product Overview
Product Overview Specifications Battery Charger Model 86901 Type 60V MAX Lithium-Ion Battery Charger Input 220 to 240V AC 50-60Hz Max 2.0A Output 60V MAX DC 1.0A Appropriate Temperature Ranges Charge battery pack at 5°C (41°F) to 40°C (104°F)* Use battery pack at -30°C (-22°F) to 49°C (120°F) -
Page 9: Operation
Operation Charging the Battery Pack Important: Charge the battery pack only in temperatures that are within the appropriate range; refer to Specifications (page Note: At any time, press the battery-charge-indicator button on the battery pack to display the current charge (LED indicators). Ensure that the vents on the battery are clear of any dust and debris. - Page 10 Refer to the following table to interpret the LED indicator light on the battery charger. Indicator Indicates light No battery pack inserted Green Battery pack is charging blinking Battery pack is charged Green Battery pack and/or battery charger is over or under the appropriate temperature range Red blinking Battery pack charging fault*...
-
Page 11: Maintenance
Maintenance Maintenance and servicing are not required under normal conditions. When you clean the surface of the equipment, wipe it only with a dry cloth. Do not disassemble the equipment; if it is damaged, contact your Authorized Service Dealer or distributor. Storage Important: Store the charger only in temperatures that are within... -
Page 12: Troubleshooting
Troubleshooting Perform only the steps described in these instructions. All further inspection, maintenance, and repair work must be performed by an authorized service center or a similarly qualified specialist if you cannot solve the problem yourself. Problem Possible Cause Corrective Action The battery charger is not 1.
