Extended instructions
9.7 Diagnostics (PROFINET or PROFIBUS)
9.7.2

RD_SINFO (Read current OB start information)

Description

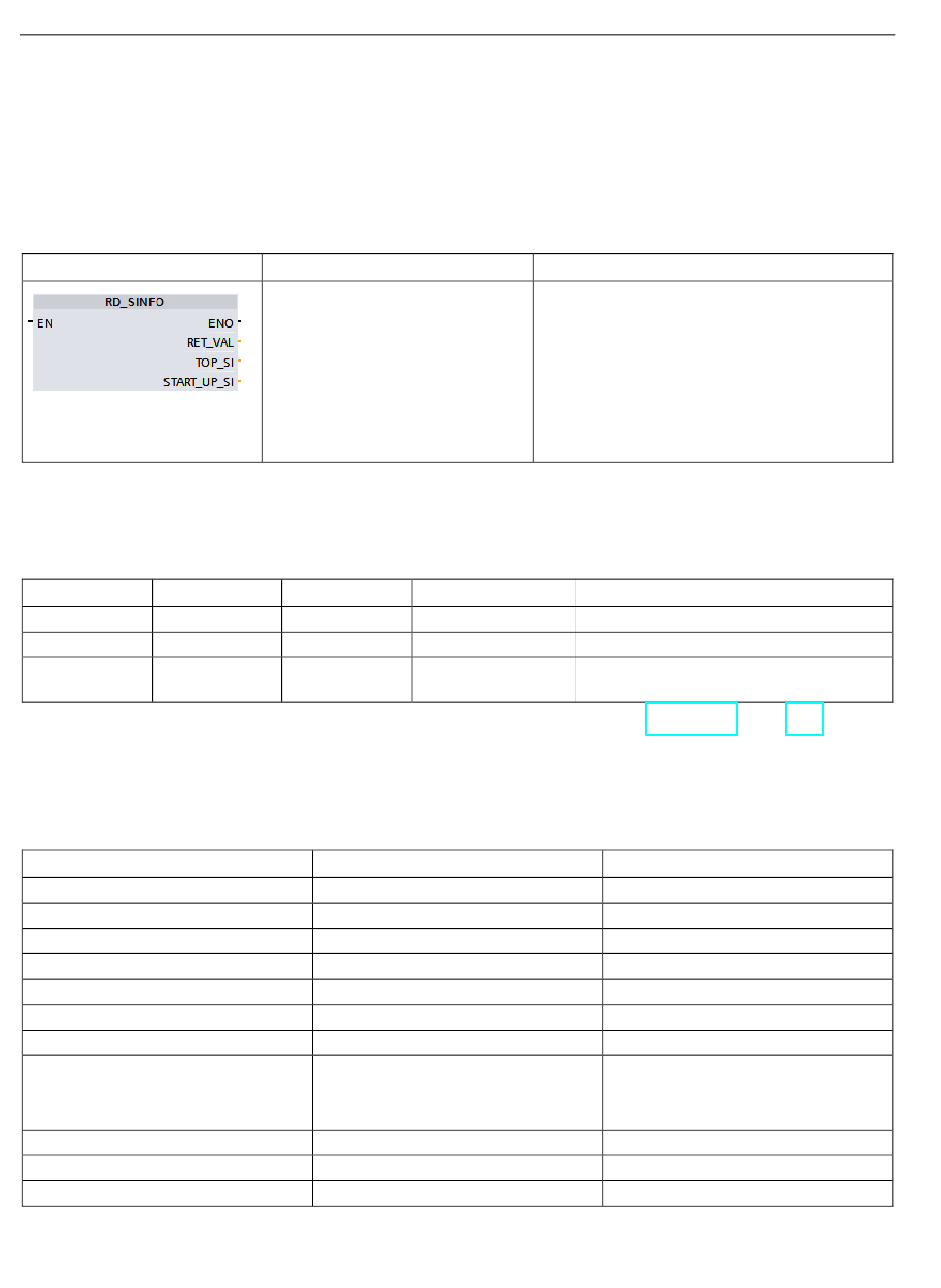

Table 9- 127 RD_SINFO instruction
LAD / FBD
Parameter
The following table shows the parameters of the "RD_SINFO" instruction:
Parameter Declaration
RET_VAL Return
TOP_SI Output
START_UP_SI Output
You will find more detailed information on valid data types in "Data types (Page 125)".
SDTs of the TOP_SI parameter
The following table shows the possible SDTs for the TOP_SI parameter:
Organization blocks (OB)
Any
ProgramCycleOB
TimeOfDayOB
TimeDelayOB
CyclicOB
ProcessEventOB
ProfileEventOB
StatusEventOB
UpdateEventOB
SynchronousCycleOB
IOredundancyErrorOB
CPUredundancyErrorOB
440
SCL
ret_val := RD_SINFO(
TOP_SI=>_variant_out_,
START_UP_SI=>_variant_out_)
;
Data type Memory area
INT I, Q, M, D, L
VARIANT D, L
VARIANT D, L
System data types (SDT)
SI_classic*
SI_none
SI_ProgramCycle
SI_TimeOfDay
SI_Delay
SI_Cyclic
SI_HWInterrupt
SI_Submodule
SI_SynchCycle
SI_IORedundancyError
SI_CPURedundancyError
Description
You use the instruction "RD_SINFO" to read the
start information of the following OBs:
Last OB called that has not yet been com-
•
pletely executed
Last startup OB that the CPU started
•
There is no time stamp in either case. If the call is
in OB 100, OB 101 or OB 102, two identical start
information messages will be returned.
Description
Error information
Start information of the current OB
Start information of the startup OB l ast
started
System data type numbers
592*
593
594
595
596
597
598
601
602
604
605
