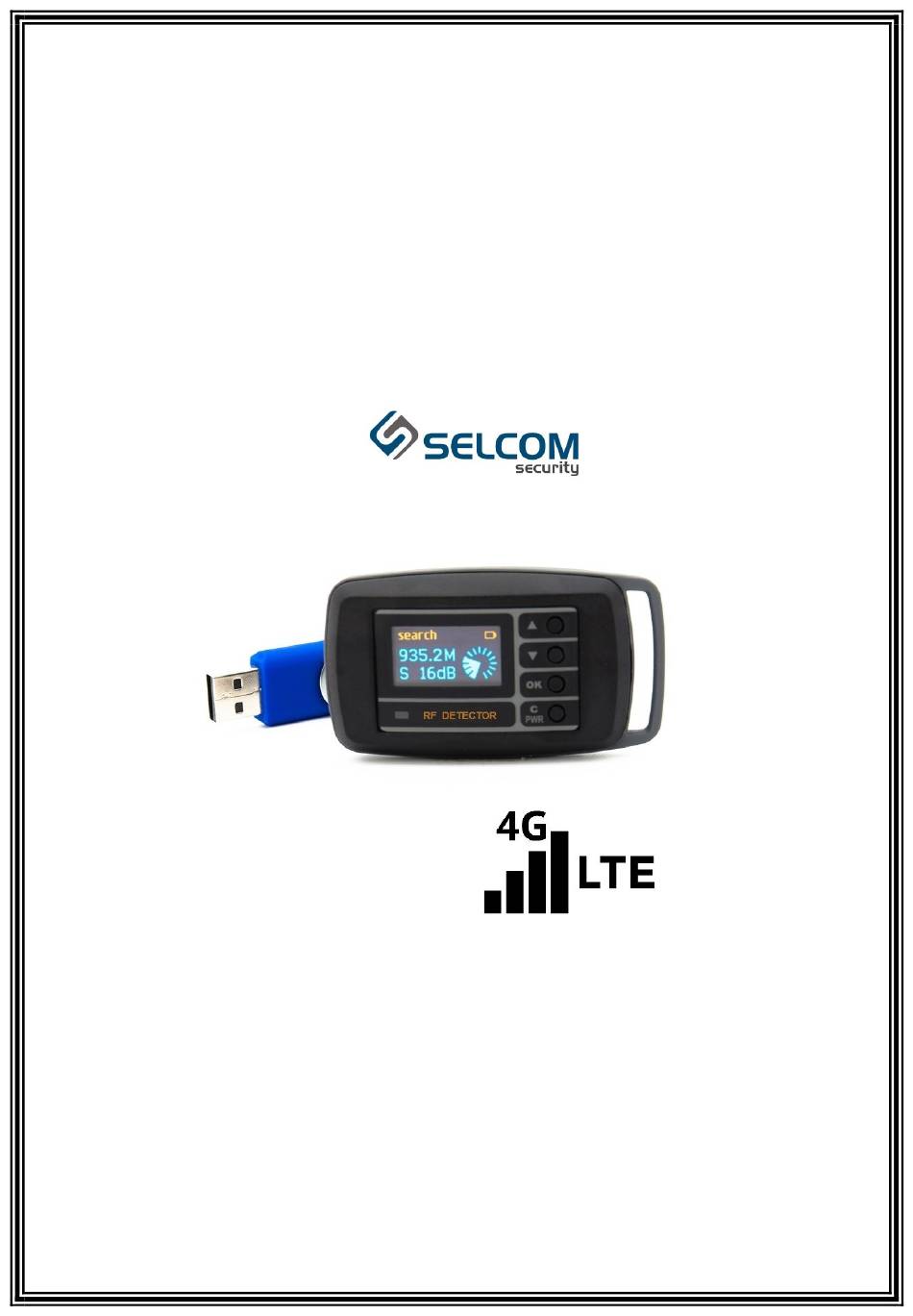

- Page 1 RF DETECTOR – FREQUENCY METER SEL SP-71R RAKSA (4G/LTE) OWNER’S MANUAL 2024...
-
Page 2: Table Of Contents
All information contained within this manual is subject to change without notice. Table of Contents 1. Introduction 2. Operating Principle 3. Operation Instructions 4. Battery Charging 5. ON/OFF and Operation 6. The Main Menu 7. Monitoring Mode 7.1 Monitoring Mode, when to use 7.2 Monitoring Mode, how to operate 7.3 Threat Signal Monitoring 7.4 Log Review from the Monitoring Mode... -
Page 3: Introduction
1. Introduction SEL SP-71R Raksa (4G/LTE) can be used to detect and locate in near field a wide variety of radio transmitters used for secret access to information, including mobile phones of GSM900/1800, UMTS(3G), CDMA450 standards, cordless DECT telephones, Bluetooth and Wi-Fi devices. Special Features: •... -
Page 4: On/Off And Operation
as soon as the charging process is completed. The charging state will also be indicated on the display after pressing any button. After the charging is completed unplug the charging unit. Simultaneous operation and charging is possible but the recharging period will increase. The continual plug-in charging unit might shorten the life cycle of the battery. -
Page 5: Threat Signal Monitoring
the display indicates “ALARM”, specifying the type and strength of the signal; the alarm sound is produced as well as vibration. The next alarm sound will occur only after five minutes and only for a new threat signal. The alarm vibration will repeat every five minutes. -
Page 6: 10. Difference Search Mode
10. Difference Search Mode 10.1 Difference Search Mode, when to use Difference Search Mode is used for detection and localization of analog transmitters. This mode has its advantage in case the transmitter is located in the same room. In this Mode the device defines the relative level of the signal — its difference with the reference spectrum that was fixed at the beginning of operation in this Mode. -
Page 7: 14. Settings
14. Settings To choose the settings press [OK], make changes, pressing ▲ or ▼, to save the new parameter press [OK], to return to the previous parameter press [C]. 14.1 Types of Detected Signals Selection of signal types in Monitoring and Search Modes. The types of signals selected are marked by «√». “Menu ->... -
Page 8: 14.9 Current Time Setting
The rate of adaptation defines how quickly the deducted background spectrum traces the changes of current signals. The algorithm of adaptation used in the device ignores the constant signals and noise. The normal rate of adaptation equals 2-3 min which is enough in the majority of cases. 14.9 Frequency Bands of Cellular Networks Selection of frequency bands for GSM and UMTS cell phone signals. -
Page 9: 17. Package Contents
17. Package Contents SEL SP-71R Raksa 4G/LTE Selective RF Detector Charging Device Owner’s Manual 18. Transporting and Storage Please check the battery regularly while storing. Don't allow full discharge. (see Battery Charging). Please avoid mechanicаl damage, direct sun and high humidity while transporting and storing the device. 19.
