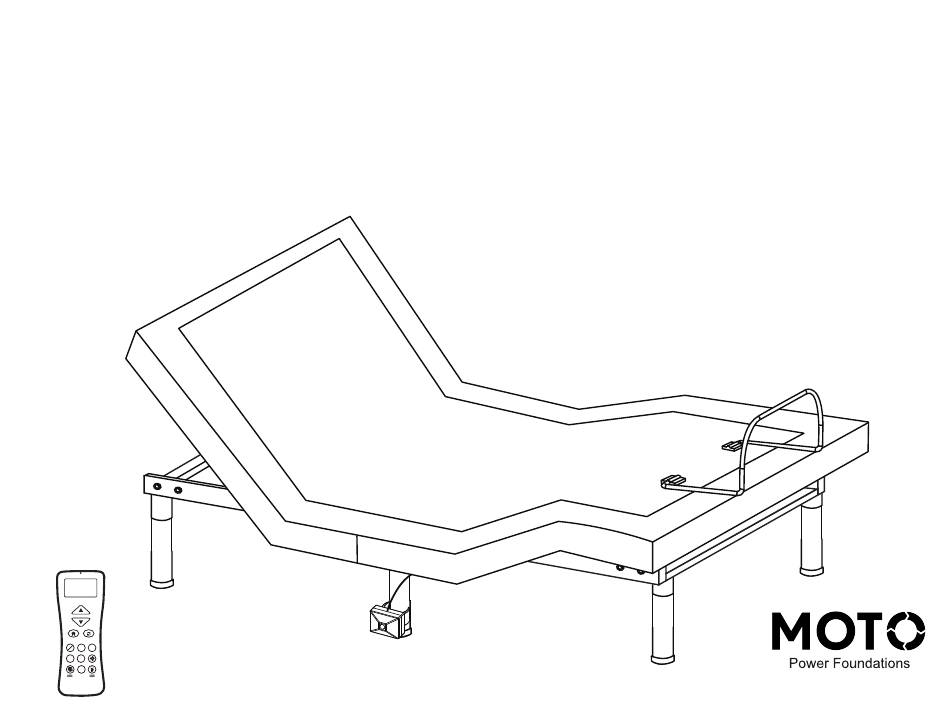

OWNER'S MANUAL
XFB/XSF/SFL Low-Prof ile Bed
With Motion Sensor
HOME
SELECT
SNORE
TV
Z-G
1
2
STOP
LPB13W4MS Rev 7.0 08/2023

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XFB and is the answer not in the manual?

Questions and answers

Summary of Contents for Moto XFB

  • Page 1 OWNER’S MANUAL XFB/XSF/SFL Low-Prof ile Bed With Motion Sensor HOME SELECT SNORE STOP LPB13W4MS Rev 7.0 08/2023...
  • Page 2: Accessories Box

    Setup the power foundation without the bed frame. Take out all the accessories from the packaging and put them aside. All electronics and components that need to be installed are located in boxes under the foundation or attached to the frame. Before Open the box lid.
  • Page 3 Keep the bed folded. Flip over the Install the remaining 2 legs on the foot Install 4 legs, make sure the bed with the bottom box on and let end of the bed, make sure the legs are tight. legs are tight. the bed stand on the 4 legs.
  • Page 4 Motion sensor installation Motion Mounting Sensor Bracket Prepare The Motion Sensor Hardware. STEP 1: Connect the motion STEP 2: Rotate the STEP 3: mounting bracket 90 sensor to the mounting degrees clockwise bracket. DONE ! Connect The Motion Sensor Connectors. STEP 1: Clip the mounting bracket onto the center adjustable legs as illustrated.
  • Page 5 Install the mattress retainer bar Make the bed completely flat. one side after another. A R D D B O H E A Insert the batteries into Uncoil the AC power cord, connect the DC power cord to the the remote control. power supply and then connect the power supply to the AC power source.
  • Page 6 Setup the power foundation with the bed frame and slat base. Take the bed out of the box, put it on the slat base, do not Uncoil the DC power cord. install any legs. Keep the bed folded. A R D A R D motion sensor D B O...
  • Page 7 Motion sensor installation STEP 1: Connect the motion sensor connectors as illustrated. STEP 2: Use the double sided tape to secure the motion sensor when necessary. A R D D B O H E A Control Box Pull the DC power cord towards the direction of the AC power source through either the bottom or the side of the bed frame.
  • Page 8 Uncoil the AC power cord, connect the DC power cord to the Insert the batteries into power supply and then connect the power supply to the AC the remote control. power source. AC Power Source A R D HOME SELECT D B O SNORE STOP...
  • Page 9: Control Box

    Electronics Quick Reference Guide If simultaneous operation of two foundations is Remote Control Head Massage Neck Motor Lumbar Motor desired, please follow the steps listed below. (2 for King) Sync cable is not required if both Foot Motor Model No.:****** adjustable bases are equipped with V2.0 ******...
  • Page 10: One Touch Button

    Remote Control Instructions Pairing Remote The original remote that comes in the box is already paired to the foundation. No further action is required. In the event when the remote is not paired with the foundation, follow the pairing instructions below. HOME SELECT SNORE...
  • Page 11: Device Pairing

    MotoSleep Mobile APP (Optional) Device Pairing Before you start. Switch on the pairing function on your mobile device. Make sure your General Information MotoSleep Power Foundation is correctly connected and is power-on. The MotoSleep APP will automatically pair your MotoSleep Power Foundation once you start MotoSleep Mobile APP is a mobile application to control the MotoSleep Power Foundation with the APP and does not require additional settings.
  • Page 12: Headboard Bracket Installation Guide (Optional)

    Legs Installation Guide Headboard Bracket Installation Guide (Optional) Headboard brackets are optional and not included. A 1/2” (13 mm) Leg Configuration Table socket and 1/2” (13 mm) wrench are required to complete the installation. (2) T-Brackets (8) M8*16 (4) Nuts (4) Washers (2) Headboard Brackets Configuration...
  • Page 13 Spacing Connector for TXL/T/CKS (Optional) Product Serial Number (Figure B) Install two spacing connectors to ensure the gap between the two Each power foundation has its unique serial number. The serial adjustable bases is consistent. number can be found on the metal (2) SPACING CONNECTOR (TXL/T/CKS ONLY) frame near the legs at the foot area.
