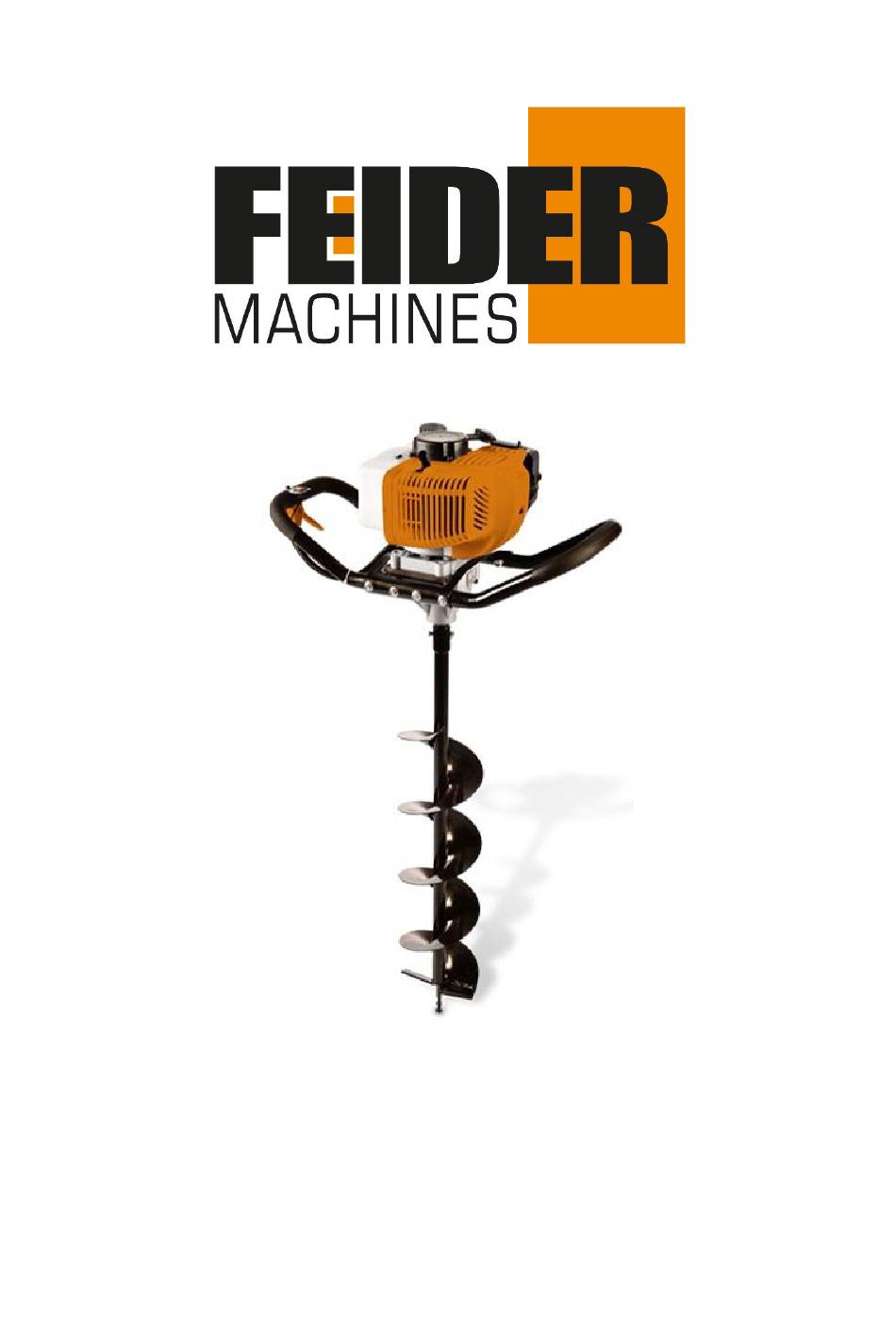

- Page 1 ORIGINAL INSTRUCTIONS >EN PETROL EARTH AUGER FTTDP52 USER GUIDE CAUTION: Read this manual before using this machine!
-
Page 2: Table Of Contents
CONTENTS 1. INTENDED USE............................3 2. SAFETY INSTRUCTIONS........................3 3. YOUR PRODUCT........................... 7 4. FILLING THE FUEL TANK........................9 5. ASSEMBLY AND OPERATION......................9 6. MAINTENANCE AND STORAGE..................... 14 7. TOUBLESHOOTING........................... 16 8. STORAGE AND TRANSPORTATION..................... 17 9. DECLARATION OF CONFORMITY....................18 10. WARRANTY............................19 11. -
Page 3: Intended Use
1. INTENDED USE This electric auger is designed to work for the ground (drilling holes for planting small trees, fence posts and similar objects). It is designed to be used with both hands. This machine is not designed to operate on frozen soil, on very rocky and particularly hard soil, in areas with underground electrical, gas or telephone lines. - Page 4 Always make sure that all handles and guards are installed when operating the machine. Never attempt to use an incomplete machine or a machine equipped with an unauthorizedmodification When transporting or storing the machine, always install the cutting device protection ifprovided;...
- Page 5 Before checking, cleaning or working on the product; After hitting a foreign object; Every time the product starts to vibrate abnormally. Pay attention to foot and cutting injuries. Inspect and regularly service the product. Repairs should be carried out only by an authorizedservice center or a similar qualified specialist.
- Page 6 can bend causing breakage or loss of control, resulting in personal injury. Fuel Handling Be very careful when handling fuels. They are flammable and the vapors are explosive. Use only an approved container. Never remove the fuel cap or add fuel while the machine is on. Turn off the unit and allow theengine and exhaust components to cool before refueling.
-
Page 7: Your Product
Wear protective equipment: protective helmet, safety glasses, noise protection helmet. Wear protective gloves. Wear protective foot wear. CAUTION: Hot surface. Don't smoke. Guarantee sound power level. Wear a mask of protection. Beware of thrown objects. 3. YOUR PRODUCT 3.1 DESCRIPTION... - Page 8 1. Fuel cap/tank 6. Auger/Drill 2. ON/OFF Switch 7. Spark plug 3. Throttle 8. Air filter/Carburetor 4. Handle 9. Choke lever 5. Gear box 10. Recoil starter handle 2.2 TECHNICAL DATA Engine displacement 52cm³ Maximum engine power: 1.45kW Maximum speed of the motor 8500/min Engaging speed 3800/min...
-
Page 9: Filling The Fuel Tank
4. FILLING THE FUEL TANK WARNING: When filling the tank: The drill should always be stopped and cooled. Never smoke during refueling. It must not have flames or sparks near the fuel. Do not attempt to refuel when the engine is hot. ... - Page 10 Fig. 1 2. Lock with 8sets of M8x40 screws and M8 lock nuts firmly. (Fig. 2) Fig. 2 3. Machine ready for assembly the drill bits. (Fig. 3) Fig. 3 5.2 Attaching the auger/drill bit. ( Fig.4) Remove the securing pin and then the screw from the bit. ...
- Page 11 Fig. 4 5.3 Starting the engine. ( Fig.5-6-7) Fill with fuel as described in section 4. Put the I/0 switch (ON/OFF) to the I position (ON). Push the chose lever to the close position Push the primer bulb until fuel flows into the clear tube. Fig.
- Page 12 Fig. 7 Warning: Keep everything clear of the drill because it will start rotating upon starting of engine. When the engine has started, gradually open the choke lever Allow the engine to warm up for a half minutes before starting operation. Note: - When re-starting immediately after stopping the engine, keep the choke open.
- Page 13 Fig. 9 5.6 Adjusting the carburetor. The carburetor on your unit has been factory adjusted, but may require fine tuning due to change in operating conditions. Before adjusting the carburetor, make sure that the air/fuel filters are clean the machine has fresh, properly mixed fuel. ...
-
Page 14: Maintenance And Storage
6. MAINTENANCE AND STORAGE Warning: Before cleaning, inspecting or repairing the auger, make sure that the engine has stopped andcooled down. Disconnect the spark plug terminal to avoid accidental engine starts. Irregular and improper maintenance/cleaning will deteriorate the tool and bring damages andaccidents. - Page 15 Warning: The spark plug MUST be fully tightened otherwise the engine will overheat causing damage. Always complete the following steps with the engine off and cooled. 6.3.3. Undo retaining screw (1) and lift spark plug cover (2) clear. 6.3.4. Disconnect the spark plug cap (3) carefully. Do not pull on the HT lead instead pull on thespark plug cap (3).
-
Page 16: Toubleshooting
6.5. Gear box. (Fig. 6.5.1. Check oil level of the gear box every 50 hours of use and change with new oil as necessary(SAE 80 - 90). 6.5.2. To remove old oil undo drain bolt (2) and pour used oil into an approved container and dispose of at your local recycling center. -
Page 17: Storage And Transportation
7.2 Difficulties during operation. Situation Cause Solution Motor does not come up to Choke is in "cold start"position, Open choke, exhaust system speed exhaust system doesnot clog ignition coil exchange check air supply, worn Movable orreplace, flywheel Adjust elements, spark weak Sooty spark plug cylinder head Power run out... -
Page 18: Declaration Of Conformity
32 rue Aristide Bergès - Z.I. du Casque - 31270 Cugnaux - France Declares that the machinery designated below: PETROL EARTH AUGER FTTDP52 Serial number: 20231256295-20231256444 Complies with the provisions of the Directive “machinery” 2006/42/EC and national laws transposing it:... -
Page 19: Warranty
10. WARRANTY WARRANTY The manufacturer guarantees the product against defects in material and workmanship for a period of 2 years from the date of the original purchase. The warranty only applies if the product is for household use. The warranty does not cover breakdowns due to normal wear and tear. The manufacturer agrees to replace parts identifed as defective by the designated distributor. -
Page 20: Product Failure
11. PRODUCT FAILURE WHAT TO DO IF MY MACHINE BREAKS DOWN? If you bought your product in a store: a) Empty the fuel tank if your product has one. b) Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine. -
Page 21: Warranty Exclusions
12. WARRANTY EXCLUSIONS THE WARRANTY DOES NOT COVER: • Start-up and setting up of the product. • Damage resulting from normal wear and tear of the product. • Damage resulting from improper use of the product. • Damage resulting from assembly or start-up not in accordance with the user manual. •... - Page 22 BUILDER SAS 32 rue Aristide Bergès - Z.I. du Casque - 31270 Cugnaux - France MADE IN PRC 2023...
