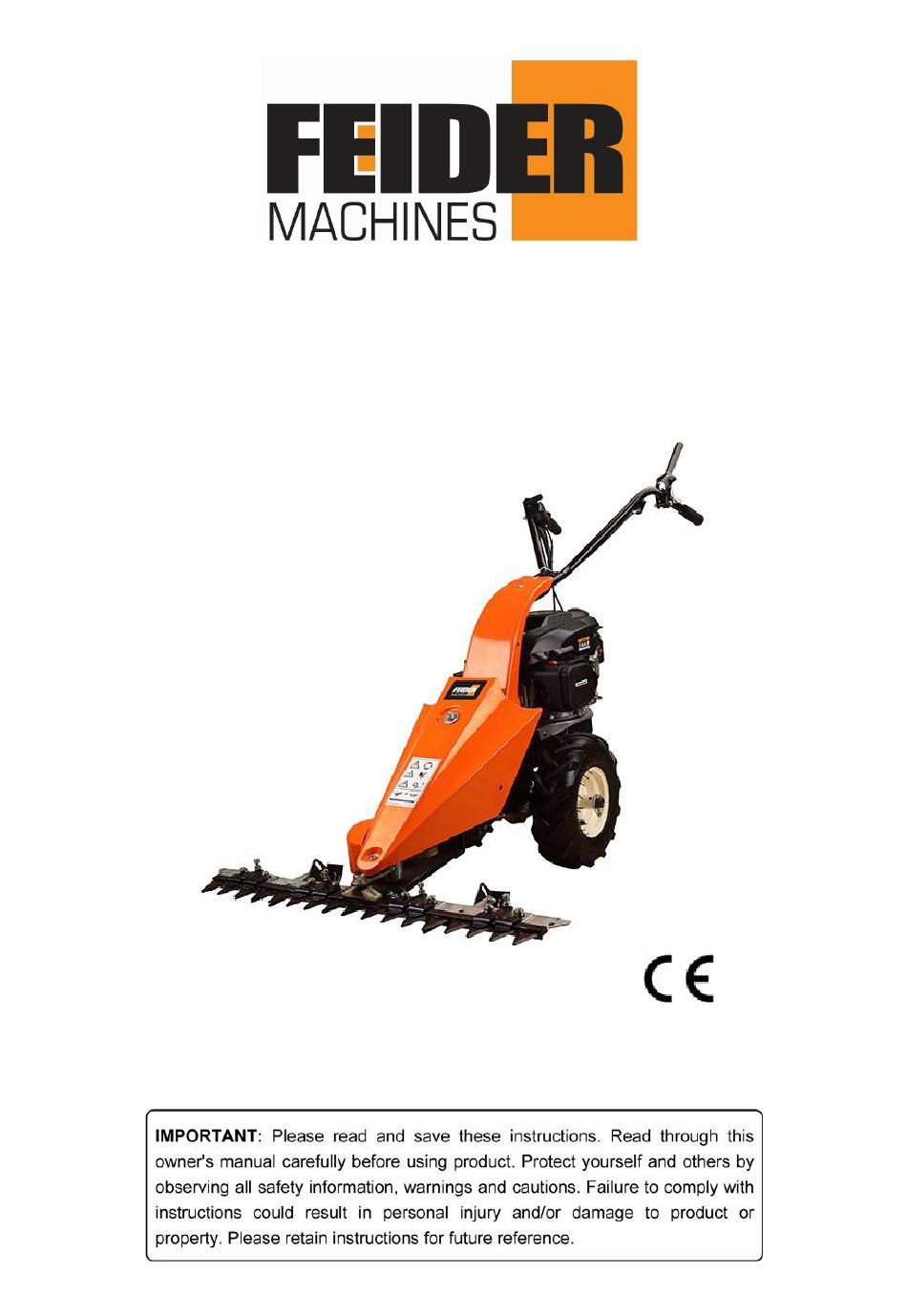

- Page 1 ORIGINAL INSTRUCTIONS INSTRUCTION MANUAL PETROL REAPER MODEL : FFT200 BUILDER SAS 32, rue Aristide Bergès - ZI 31270 Cugnaux – France Made in PRC...
-
Page 2: Table Of Contents
ORIGINAL INSTRUCTIONS CONTENTS PROPER USE..............................3 GENERAL SAFETY INSTRUCTIONS......................3 RAYNAUD'S SYNDROME (WHITE-FINGER SYNDROME) ..............4 PRODUCT-SPECIFIC SAFETY INFORMATION ..................4 GENERAL INSTRUCTION ..........................4 PREPARATORY ACTIONS ..........................5 WARNING SYMBOLS ............................6 PRODUCT DESCRIPTION ..........................7 TECHNICAL DATA ............................8 ASSEMBLY................................ 8 USING FOR THE FIRST TIME ........................ -
Page 3: Proper Use
ORIGINAL INSTRUCTIONS 1. PROPER USE The product is intended for cutting grass areas in private and hobby gardens. The product may not be used for commercial purposes. The product may not be used in potentially explosive environments. The product may not be used in environments in which a fire hazard exists. The product must be operated according to the manufacturer's specifications in the instructions for use. -
Page 4: Raynaud's Syndrome (White-Finger Syndrome)
ORIGINAL INSTRUCTIONS Never leave the product unattended with the motor running. • Check the fuel system for leaks or defective parts on a regular basis. • Always switch off the motor when transporting or refueling. • Carefully remove overflowing fuel without delay. •... -
Page 5: Preparatory Actions
ORIGINAL INSTRUCTIONS Remember that the operator or the user is responsible for accidents involving other persons or • damage to their property. 6. PREPARATORY ACTIONS Always work wearing sturdy shoes and long trousers. Do not operate the product barefoot or •... -
Page 6: Warning Symbols
ORIGINAL INSTRUCTIONS MAINTENANCE AND STORAGE Always make sure that all nuts, bolts and screws are firmly tightened. This will ensure that the • product is in a safe working condition. While petrol is in the tank, never store the product in a building in which petrol vapours may •... -
Page 7: Product Description
ORIGINAL INSTRUCTIONS 8. PRODUCT DESCRIPTION... -
Page 8: Technical Data
ORIGINAL INSTRUCTIONS 1) Coupling handle (for cutting tool) 9) Cutting tool 2) Latch 9a) Cutting tool guard 3) Steering 10) Air filter unit 4) Arm housing 11) Fuel pump (without pump on this model) 5) Motor oil filling screw 12) Tank cover (for fuel) 6) Exhaust with protective grille 13) Pull-starter 7) Wheel... - Page 9 ORIGINAL INSTRUCTIONS 2) Mounting the arm housing Unscrew the screws (19) with the circlip and the washer on both sides of the product. Place the arm housing (4) onto the product and screw down to the product again with the screws (19).
- Page 10 ORIGINAL INSTRUCTIONS Note: Make sure that the vibration damper (22) between the arm housing (4) and the steering (3) is installed. 4) Mounting the Bowden cable guide CAUTION! Product damage! Pay attention to the routing of the Bowden cables. The Bowden cables may neither be routed in too small a radius not may they be crushed! ...
-
Page 11: Using For The First Time
ORIGINAL INSTRUCTIONS 11. USING FOR THE FIRST TIME PRODUCT CONTROLS WARNING! Risk of injury! Before performing any adjustment work, always switch the product off and remove the spark plug connector. 1) Setting the steering height Slightly loosen the screws (19) with the circlip and the washer on both sides of the arm housing (4). - Page 12 ORIGINAL INSTRUCTIONS 3) Adjusting the cutting height WARNING! Risk of injury! Never set the cutting height too low. The ground sliders (8) must still touch the ground. The cutter (9) could become caught in the ground and cause to product to suddenly come to a halt ...
- Page 13 ORIGINAL INSTRUCTIONS 5) Coupling handle for wheel drive When the coupling handle is released (15), the cable pull must be completely relieved. Coupling handle released (15) = product standstill • Coupling handle (15) pulled = Wheels (7) begin to move and the product starts running. •...
- Page 14 ORIGINAL INSTRUCTIONS 8) Filling with motor oil CAUTION! Product damage! The product is supplied without motor oil. Make sure it is filled with motor oil before using for the first time. The motor oil must be changed after the first five operating hours. The oil level must be checked and topped up refilled each time before using the motor 1) Switch off the motor.
-
Page 15: Operation
ORIGINAL INSTRUCTIONS 1) Switch off the motor. 2) Disconnect the spark plug. 3) Unscrew and remove the gearbox oil filling plug (36) using a suitable tool. 4) Carefully top up the gearbox oil. Do not spill! 5) Re-tighten the gearbox oil filling plug (36) 12. - Page 16 ORIGINAL INSTRUCTIONS Spilled fuel can set the product on fire. Carefully wipe up any spilled fuel up before starting. Start the product a minimum of nine meters away from where you filled it. CAUTION! Product damage! The motor's durability and operating safety hinges on its run-in time. Always allow a cold motor to warm up for a few minutes, do not demand full power immediately.
-
Page 17: Cleaning And Maintenance
ORIGINAL INSTRUCTIONS 13. CLEANING AND MAINTENANCE WARNING! Risk of injury! Changing the blades according to the opposite steps of mounting the cutter. WARNING! Risk of injury! Before any maintenance or cleaning work: Switch off motor. Allow the product to cool down. ... - Page 18 ORIGINAL INSTRUCTIONS 2) Cleaning the product WARNING! Risk of injury! Clean the cutting tool carefully. The cutting tool may still move even though the product is switched off. Careful handling and regular cleaning ensure that the product remains functional and efficient for a long time.
- Page 19 ORIGINAL INSTRUCTIONS Hold a collecting container below the motor oil drain plug (35). Unscrew and remove the motor oil drain plug (35) using a suitable tool. Allow the motor oil to drain completely. Insert the motor oil drain plug (35) and tighten using a suitable tool. ...
- Page 20 ORIGINAL INSTRUCTIONS CAUTION! Product damage! The product must never be operated without the air filter, as this can cause damage to the motor. The air filter must be replaced if it is damaged or badly contaminated. Switch off the motor. –...
-
Page 21: Storage And Transport
ORIGINAL INSTRUCTIONS wrench. Do not tighten spark plug too tight, otherwise the threads will be damaged. Replace the spark plug connector (40) firmly on the spark plug. – 8) Changing the gearbox oil Draining the gearbox oil – Filling with gearbox oil –... - Page 22 ORIGINAL INSTRUCTIONS Incorrect fuel? Drain tank and fill up with the correct fuel Spark plug connector not firmly Push the connector firmly onto attached? the spark plug. Spark plug connector Clean spark plug contaminated? connector. Spark plug contaminated? Clean the spark plug Electrode clearance of spark Adjust gap to 0.7 mm to 0.8 plug incorrect?
-
Page 23: Declaration Of Conformity
32 rue Aristide Bergès - Z.I. du Casque - 31270 Cugnaux - France Tel: +33 (0) 5.34.508.508 Fax: +33 (0) 5.34.508.509 Declare that the machine designated below PETROL REAPER FFT200 S/N: 20221010581-20221010756 Conforms to the provisions of the Machinery Directive 2006/42 / EC and the national regulations transposing it;... -
Page 24: Warranty
1 8 . WARRANTY WARRANTY The manufacturer guarantees the product against defects in material and workmanship for a period of 2 years from the date of the original purchase. The warranty only applies if the product is for household use. The warranty does not cover breakdowns due to normal wear and tear. -
Page 25: Product Failure
1 9 . PRODUCT FAILURE WHAT TO DO IF MY MACHINE BREAKS DOWN? If you bought your product in a store: a) Empty the fuel tank if your product has one. b) Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine. -
Page 26: Warranty Exclusions
20. WARRANTY EXCLUSIONS THE WARRANTY DOES NOT COVER: • Start-up and setting up of the product. • Damage resulting from normal wear and tear of the product. • Damage resulting from improper use of the product. • Damage resulting from assembly or start-up not in accordance with the user manual. •...
