Summary of Contents for Feider Machines FTDT511ZT

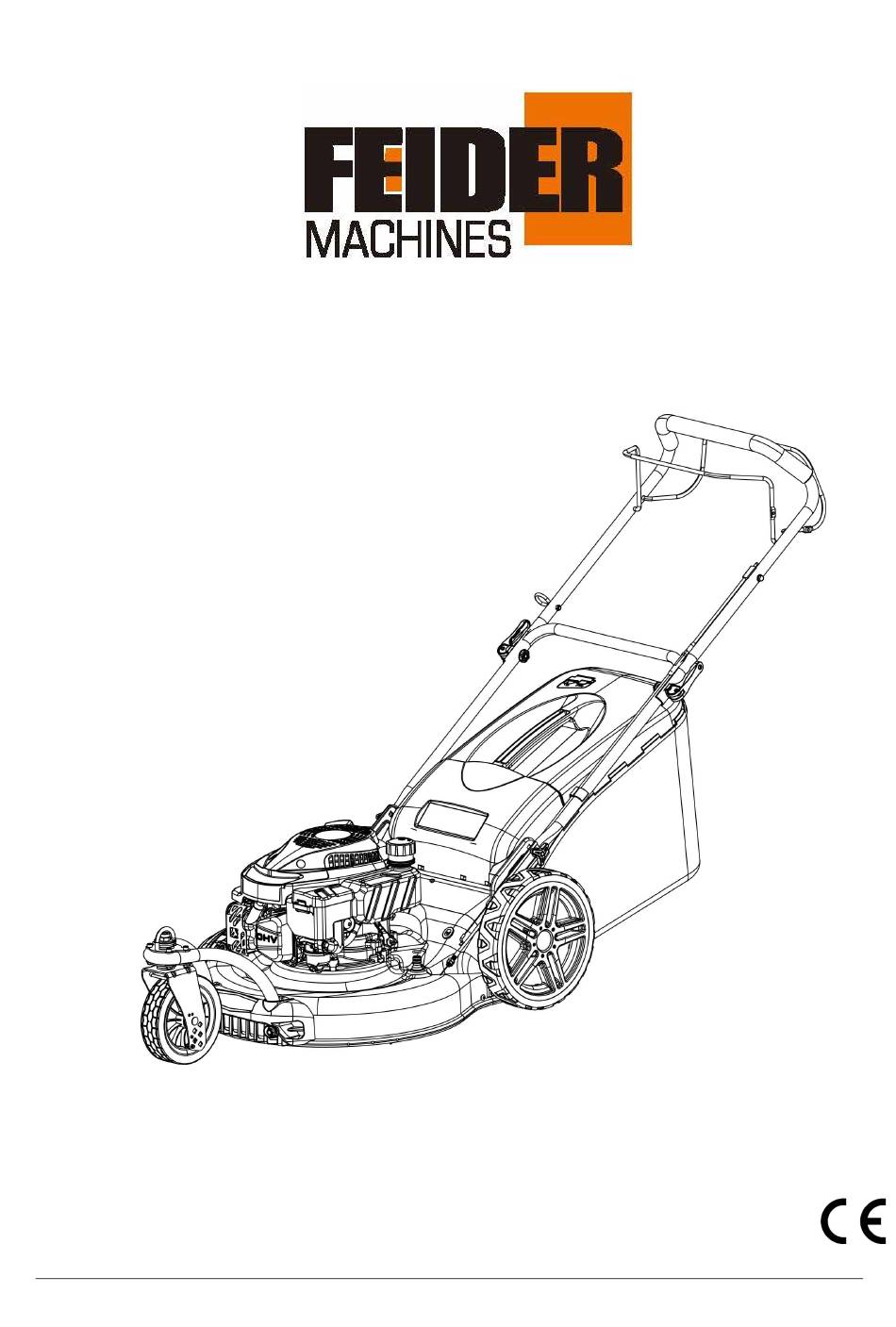

- Page 1 ORIGINAL INSTRUCTIONS PETROL LAWNMOWER FTDT511ZT OWNER’S MANUAL CAUTION: Read and follow all Safety Rules and Instructions before operating this equipment BUILDER SAS 32, rue Aristide Bergès - ZI 31270 Cugnaux - France MADE IN PRC 1. SAFETY INSTRUCTIONS...
- Page 2 Instructions Read the instructions carefully. Be familiar with the controls and proper use of the equipment. Never allow children to use this mower. If the mower is given to an other people, also give this manual. Also make sure that this person uses this device only after receiving the necessary instructions. Local laws may restrict the age of the user.
- Page 3 Stop the machine and remove the ignition key, disconnect the spark plug from the spark plug: o Before cleaning or unclogging the grass extractor. o Before checking, cleaning, and working on the mower. o After hitting an object. Inspect the mower for damage and repair before re-using the mower. o If the mower begins to vibrate abnormally, stop the engine immediately and check according to previous recommendations.
- Page 4 Use the tool on daylight or under a good lighting. Always keep bystanders away. Warning: Take an extreme precaution when operating the lawnmower in slopes and near drop-offs, ditches or embankments; always be sure of your footing and stay in alert. the lawnmower safety systems or features shall not be tampered with or disabled;...
- Page 5 Warning Read the instruction manual Warning! Risk of projections. Keep bystanders away Risk of injury from sharp blades! Keep your feet and hands away. Stop the machine before removing any foreign objects from the working area. Never mow while people, especially children, or animals are nearby. Guarantee sound power level.
- Page 6 Technical data Model FTDT511ZT Engine displacement 170.1 cm³ Power 2.5 kW Engine speed 2900/min Cutting width 51 cm Adjustable cutting height 6 positions Grass collection capacities weight 29.8kg Guaranteed Sound Power Level 98dB Sound pressure level (LpA) 85,5 dB (A); K...
- Page 7 Mount the front wheel Assemble the front wheel and bracket as below picture shown: Instruction for grass bag assembly Before using the grass catcher, the side discharge must be removed. Pull plastic loops over basket rods. Open the flap then Install the grass catcher on the hook on the rear of the tool. Release the flap. Disassemble the grass catcher Lift the flap and remove the grass catcher.
-
Page 8: Filling Fuel Tank
Disassembly Lift the flap. Press the center of the mulching kit firmly. Hold and pull the handle to remove the mulching kit. ADJUST CUTTING HEIGHT Raise wheels for low cut and lower wheels for deep cut; adjust cutting height to suit your requirements. Medium position is best for most lawns. -
Page 9: Operation
a. Engine oil Recommended oil: We recommend the use of high quality detergent oil classified such as SAE30. Do not use special additives. Filling oil tank Open the oil tank. Fill directly the oil in the tank. Do not overfill. Close the oil tank. -
Page 10: Maintenance And Storage
Work instructions Mow dry grass as much as possible to save grass. Adjust the cutting height so that the machine is not overworked. Drive the machine at moderate speed (walking) along the belt as straight as possible. For a perfect mowing result, the strips must always overlap for a few centimetres Do not back away. - Page 11 Changing the Oil Have a container ready to catch the oil and remove the drain plug. We should incline machine to make sure all the oil could be go out. Once the oil has been emptied, replace the drain plug making sure that the washer is in place and wipe clean any spillages.
-
Page 12: Maintenance Schedule
MAINTENANCE SCHEDULE After 8 h After 50 h Once a Before After After5 h SERVICE year Mowing check and tighten nuts, bolts and screws Check the oil / fuel level and refill oil / fuel if necessary Clean control elements / ... -
Page 13: Declaration Of Conformity
Tel: +33 (0)5.34.502.502 Fax: +33 (0)5.34.502.503 Declares that the machines: PETROL LAWN MOWER Model: FTDT511ZT Serial No.: 20210112388-20210112507 the people name holding the technical file：Mr. Olivier Patriarca have been designed in compliance with the following standards: EN ISO 5395-1:2013 +A1... -
Page 14: Warranty
WARRANTY WARRANTY The manufacturer guarantees the product against defects in material and workmanship for a period of 2 years from the date of the original purchase. The warranty only applies if the product is for household use. The warranty does not cover breakdowns due to normal wear and tear. The manufacturer agrees to replace parts identified as defective by the designated distributor. -
Page 15: Product Failure
PRODUCT FAILURE WHAT TO DO IF MY MACHINE BREAKS DOWN? If you bought your product in a store: a) Empty the fuel tank. b) Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine. -
Page 16: Warranty Exclusions
WARRANTY EXCLUSIONS THE WARRANTY DOES NOT COVER: • Start-up and setting up of the product. • Damage resulting from normal wear and tear of the product. • Damage resulting from improper use of the product. • Damage resulting from assembly or start-up not in accordance with the user manual. •...
