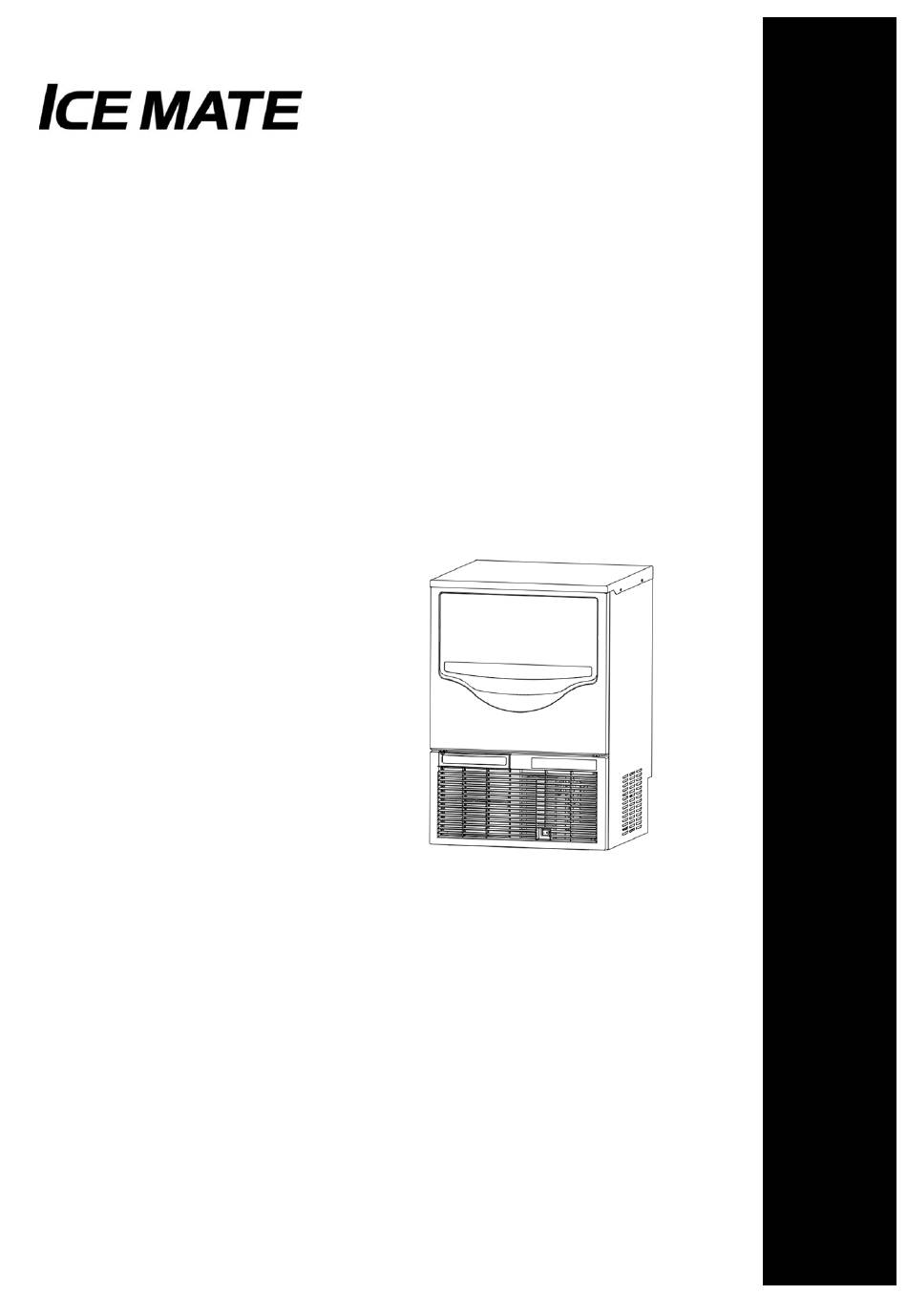

COMMERCIAL SELF-CONTAINED RHOMBIC
ICE MAKER
INSTRUCTION MANUAL
●This booklet is an integral and essential part of the product and should be kept and
preserved by the user.
●Please read carefully the guidelines and warnings contained herein as they are
intended to provide the installer / user with the essential information for the proper
installation and continued safe use and maintenance of the product.
●Please preserve this booklet for any further consultation that may be necessary.
Manufacturer: HOSHIZAKI (SUZHOU) CO., LTD
No. 15 Qingqiu Street, Suzhou Industrial Park, Suzhou 215126.China
SRM-125UB
SRM-125UB
L1M180102(052324)
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Hoshizaki ICE MATE SRM-125UB
Summary of Contents for Hoshizaki ICE MATE SRM-125UB
- Page 1 / user with the essential information for the proper installation and continued safe use and maintenance of the product. ●Please preserve this booklet for any further consultation that may be necessary. Manufacturer: HOSHIZAKI (SUZHOU) CO., LTD No. 15 Qingqiu Street, Suzhou Industrial Park, Suzhou 215126.China L1M180102(052324)
-
Page 2: Table Of Contents
CONTENT IMPORTANT SAFETY INFORMATION ................. 1 INSTALLATION INSTRUCTIONS ..................2 Ⅰ. 1. CONSTRUCTION ......................2 2. ACCESSORIES ......................2 3. UNPACKING ......................... 3 4. LOCATION ........................4 5. INSTALLATION ......................4 6. ELECTRICAL CONNECTIONS ................... 4 7. WATER SUPPLY AND DRAIN CONNECTIONS ............5 II. -
Page 3: Important Safety Information
IMPORTANT SAFETY INFORMATION Throughout this manual, notices appear to bring your attention to situations which could result in death, serious injury or damage to the unit. WARNING Indicates a hazardous situation which, If not avoided, could result in death or serious injury. CAUTION Indicates a hazardous situation which, If not avoided, could result in minor or moderate injury. -
Page 4: Installation Instructions
I. INSTALLATION INSTRUCTIONS 1. CONSTRUCTION Top Panel Door handle Storage Bin Name Plate Air Filter Louver Power Switch [SRM-125UB] 2.ACCESSORIES SRM-125UB Instruction Manual Scoop Instruction Manual Scoop... -
Page 5: Unpacking
3. UNPACKING WARNING Children should not be allowed in reach of the Packaging elements (plastic bags and expanded polystyrene, etc.) as they are potential sources of danger. CAUTION Do not lift or manoeuvre the carton by using the shipping bands. When moving the unit, hold the unit bottom. -
Page 6: Location
4. LOCATION WARNING This ice maker is not intended for outdoor use. This ice maker should not be located next to ovens, grills or other high heat producing equipment. This appliance is not suitable for installation in an area where a water jet could be used. CAUTION The location should provide a firm and level foundation for the icemaker. -
Page 7: Water Supply And Drain Connections
＊Usually an electrical permit and services of a licensed electrician are required. ＊If the power cord is damaged, it must be replaced by a replacement cord available from Manufacturer's Parts/Service centres. 7. WATER SUPPLY AND DRAIN CONNECTIONS WARNING Connect to potable water supply only. ＊The connection to the main water supply must be made in accordance with the countries’... -
Page 8: Operating Instructions
Ⅱ. OPERATING INSTRUCTIONS. CAUTION Do not put your hand into the back of the storage bin or the right side pump. The ice on the evaporator may drop off, a hard block of ice may suddenly break down, or pump motor may suddenly start-up, resulting in injury. Water Tank Storage Bin NOTICE... -
Page 9: Maintenance
Ⅲ.MAINTENANCE 1.CLEANING WARNING Before carrying out any cleaning or maintenance operations, unplug the icemaker from the electrical supply network. This appliance must not be cleaned by use of a water jet. CAUTION When using a neutral cleaner or sodium hypochlorite, thoroughly read and understand the instructions provided to prevent potential health problems. - Page 10 ●Please wash the work clothes you wear when handling agents. About agent ■use the agent recommended by the manufacturer. ■Please contact Hoshizaki sales company about agents. ■If you have any other questions, please contact the agent's manufacturer. ■Please prepare the agent according to the following proportions:...
- Page 11 ■ NOTE WHEN USING THE CLEANING FUNCTION, IT SHOULD BE TRAINED BY PROFESSIONAL PERSONNEL BEFORE IT CAN BE OPERATED. DURING OPERATION, THE HAND SHOULD NOT EXCEED THE WARNING LINE. ■...
-
Page 12: [D] Air Filter And Condenser
[d] Air Filter and Condenser Plastic mesh air filters removed dirt or dust from the air, and keep the condenser from getting clogged. If the filters get clogged, the icemaker's performance will be reduced. Remove and clean the air filters at least twice per month. Step 1: Slide the air filter off the louver. -
Page 13: Fault And Treatment
3. . FAULT AND TREATMENT Please operate the machine according to the instructions. If there are any exceptions, please check the follow table firstly. If it cannot be solved, please contact the authorized distributor or maintenance agency of our company in time. So as not to cause a loss to you. -
Page 14: Warranty
Warranty repair should be completed by an approved manufacturer dealer or service agency using genuine manufacturer components. To obtain full details of your warranty and the approved service agency, please contact your dealer / supplier or the nearest manufacturer's service office. Repair Hotline: 400-720-6910 E-mail: service@hoshizaki.com.cn SPECIFICATION 125UB 125UB -cooled, rhombic ice cube...
