Summary of Contents for SCHEU BIOSTAR 4 ALIGNER

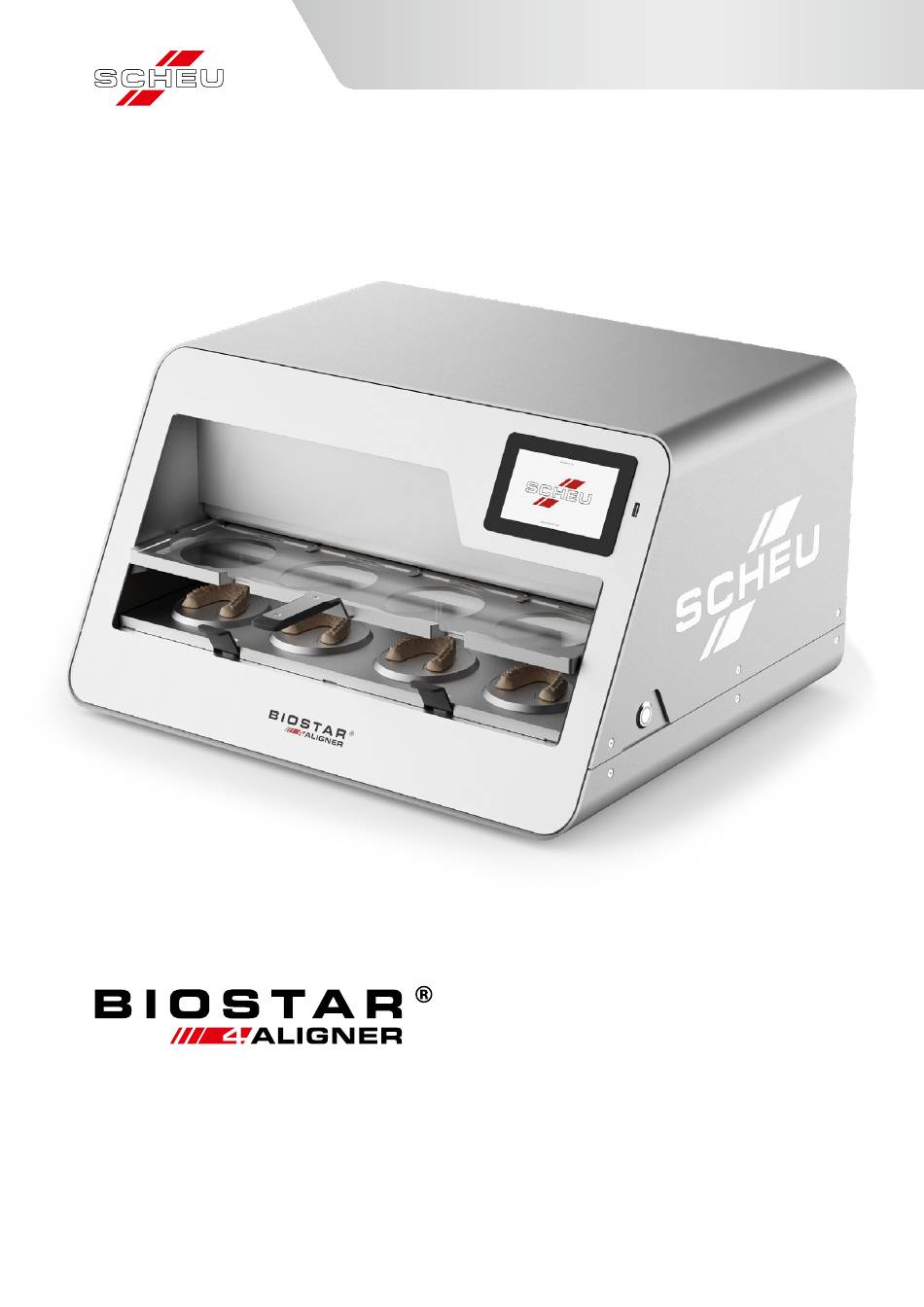

- Page 1 Bedienungsanleitung Operation Manual Mode d’emploi Manual de Instrucciones Istruzioni per l‘uso...
- Page 2 Abb./ Fig. 1 Abb./ Fig. 2 Abb./ Fig. 3 Abb./ Fig. 5 Abb./ Fig. 4 Abb./ Fig. 7 Abb./ Fig. 6 Heater 4 Heater 3 Heater 2 Heater 1 Abb./ Fig. 8 Abb./ Fig. 9...
-
Page 3: Safety Instructions
• Make sure that the heater is not exposed to any load during transport. • Safe operation of the device can only be ensured using the original SCHEU-DENTAL spare parts. • Any kind of service operation shall always be performed by service technicians instructed by SCHEU-DENTAL or at the SCHEU-DENTAL facilities. Any conversion or modification of the device compromises product safety and leads to the expiration of warranty and guarantee claims. -
Page 4: Using The Device
4. Switching on the device The device is switched on using the on/off switch on the back. A startup screen with Scheu logo is shown for approx. 10 sec, before the standard dialogue appears. 5. First-time-use settings... - Page 5 There are 3 options to load the parameters of a round foil: Type in REF number A. Place the round SCHEU-DENTAL foil under the scanner B. Type in 4 digit REF number for SCHEU-DENTAL foils C. Fill in heating and cooling parameters manually Set parameters Pressure 4.0 bar...
-
Page 6: Device Settings
Reset In this menu the above settings of the device can be reset, and there is the option to unlink the device from the SCHEU- DENTAL account. Maintenance IMPORTANT SAFETY NOTICE: before performing any maintenance please ensure that the device is completely turned off and unplugged from its power source. Failure to do so may result in serious injury, electrical shock, or damage to the... -
Page 7: Export Log Data
Use a non-aggressive cleaning agent to clean the housing parts of the device. Firmware 1. Download the firmware Go to https://www.scheu-group.com/biostar4aligner/update. 2. Upload the firmware on an empty USB-stick Save the downloaded file to an empty USB-stick and place this in the slot next to the screen. 3. Select and install the firmware In the 'About device' menu the new firmware version can be installed. Select the new firmware version from the USB-stick... -
Page 8: Error Codes
2. Check the USB-stick functionality on another device. Error 013 CMOS battery voltage is low. User settings Please contact SCHEU-DENTAL service about are lost, and time and date are not showing CMOS battery voltage is low. replacing the CMOS battery. -
Page 9: Warranty
GmbH The machine you bought has been carefully checked and found to be in perfect condition, meeting highest technical demands. SCHEU-DENTAL GmbH does not provide warranties for: • repair services effected by the buyer or unauthorised staff • in case of damages due to inappropriate use or handling •... - Page 10 Our pressure moulding material has been tested and approved in terms of cell biology in compliance with the international standards ISO 10993 and ISO 7405. SCHEU-DENTAL GmbH www.scheu-dental.com Phone +49 2374 9288-0 Fax +49 2374 9288-90 Am Burgberg 20 58642 Iserlohn • Germany...
