MC201-F Interface Converter
Quick Installation Guide
3onedata Co., Ltd.
Address:
3/B, Zone 1, Baiwangxin High Technology
Industrial Park, Song Bai Road, Nanshan
District, Shenzhen, 518108, China
www.3onedata.com
Website:
+86 0755-26702688
Tel:
+86 0755-26703485
Fax:
Package Checklist
Please check the integrity of package and accessories while
first using the interface converter.
1. Interface converter X 1 c Power Adapter
3. Warranty card 4. Certification
If any of these items are damaged or lost, please contact our
company or dealers, we will solve it ASAP.
Product Overview

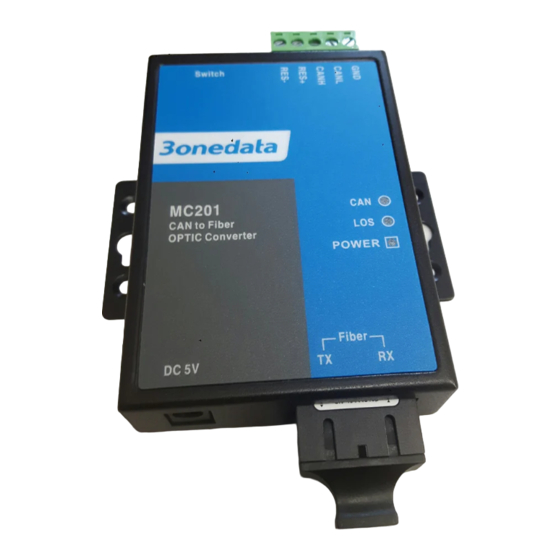

The product is a CAN-bus signal to optical signal interface
converter. The model is MC201-F(1 fiber port + 1 CAN port).

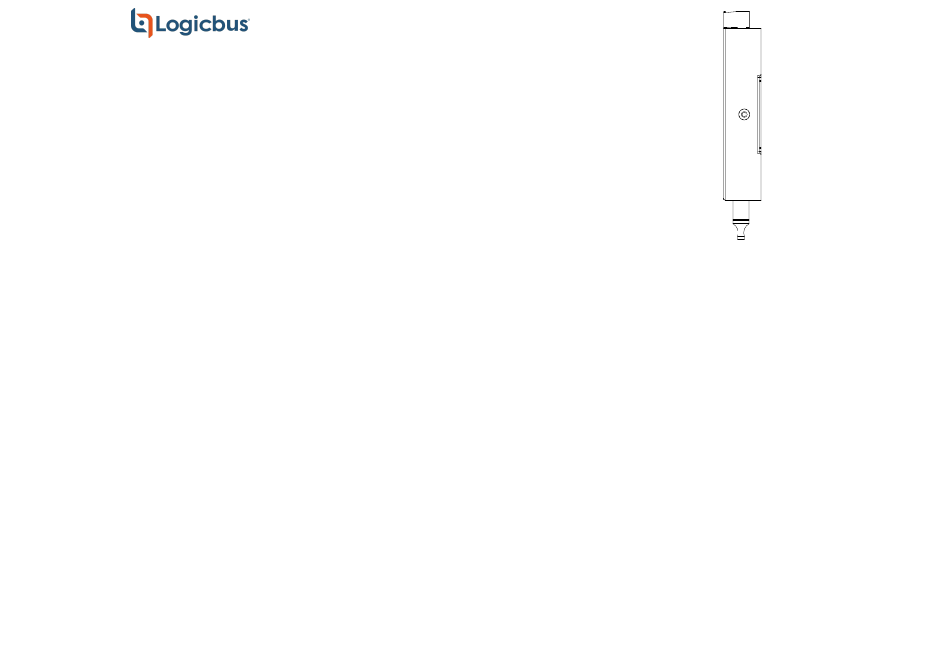

Panel Design
Front view
Bottom view
Top view
Left view and right view
1.
CAN port (5-pin terminal blocks)
2.
Lugs
3.
CAN port running status indicator
4.
Network error status indicator
5.
Power supply (POWER) indicator
6.
Fiber interface
7.
DC 5V power supply input
8.
DIP switch
Mounting Dimension
Unit: mm
Advertisement
Related Manuals for 3onedata Logicbus MC201-F
Summary of Contents for 3onedata Logicbus MC201-F
- Page 1 MC201-F Interface Converter Quick Installation Guide CAN port (5-pin terminal blocks) Lugs CAN port running status indicator 3onedata Co., Ltd. Network error status indicator Address: 3/B, Zone 1, Baiwangxin High Technology Industrial Park, Song Bai Road, Nanshan Power supply (POWER) indicator...
- Page 2 baud rate would be set to 1Mbps by default. User need to power on the device again when changing the status of DIP switch. Valid values of IO2~IO6 status Recognizable (DIP switch that set to ON means 1, baud rate otherwise it represents 0) (Unit: bps) 000 00...
- Page 3 Checking LED Indicator Access terminal block DC round head The interface converter provides LED indicators to monitor the Power consumption device working status with a comprehensive simplified No-load consumption 1.39W@5VDC 1.31W@5VDC troubleshooting; the function of each LED is described in the Full-load consumption table as below: -40℃...
