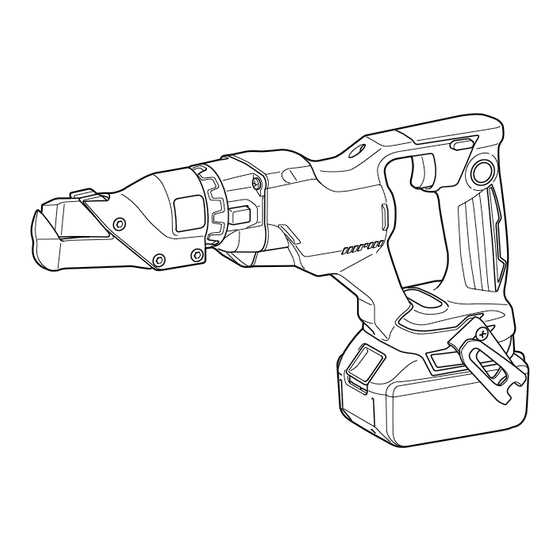

- Page 1 INSTRUCTION MANUAL Cordless Metal Shear DJS132 Read before use.
-
Page 2: Specifications
SPECIFICATIONS Model: DJS132 Max. cutting capacities * Steel up to 400 N/mm 1.3 mm (18 ga) Stainless Steel up to 600 N/mm 1.0 mm (20 ga) Strokes per minute 0 - 3,000 min Overall length (with BL1860B) 370 mm Rated voltage D.C. - Page 3 Avoid body contact with earthed or grounded Always wear protective goggles to protect surfaces, such as pipes, radiators, ranges and your eyes from injury when using power tools. refrigerators. There is an increased risk of elec- The goggles must comply with ANSI Z87.1 in tric shock if your body is earthed or grounded.
- Page 4 Always be sure you have a firm footing. When using the tool, do not wear cloth work gloves which may be entangled. The entangle- Be sure no one is below when using the tool in ment of cloth work gloves in the moving parts may high locations. result in personal injury. Do not touch the blade or the workpiece imme- diately after operation. They may be extremely Battery tool use and care hot and cause burn your skin.
-
Page 5: Functional Description
18. Keep the battery away from children. SAVE THESE INSTRUCTIONS. CAUTION: Only use genuine Makita batteries. Fig.1 Use of non-genuine Makita batteries, or batteries that ► 1 . Red indicator 2. Button 3. Battery cartridge have been altered, may result in the battery bursting causing fires, personal injury and damage. It will also void the Makita warranty for the Makita tool and CAUTION: Always install the battery cartridge charger. - Page 6 Charge the battery(ies) or replace it/them with Fig.2 recharged battery(ies). ► 1 . Indicator lamps 2. Check button Let the tool and battery(ies) cool down. If no improvement can be found by restoring protection Indicator lamps Remaining system, then contact your local Makita Service Center. capacity Switch action Lighted Blinking 75% to 100% CAUTION: Before installing the battery car- tridge into the tool, always check to see that the...
- Page 7 Removing cutting head Accidental re-start preventive function Use the hex wrench (5/32") to loosen the bolts which secure the cutting head. Pull the cutting head straight out by turning it left and right alternately. Even if you install the battery cartridge while pulling the switch trigger, the tool does not start. To start the tool, first release the switch trigger and then pull the switch trigger. Lighting the lamp CAUTION: Do not look in the light or see the...
- Page 8 Installing shear blades Installing hook Insert the center blade, the side blade L, the side blade R, and the sleeve into the cutting head. WARNING: Use the hanging/mounting parts Tighten the bolts. In this process, the bolt heads should for their intended purposes only, e.g., hanging the be protruding 2 - 3 mm from the cutting head surface.
-
Page 9: Operation
Centers, always using Makita replacement parts. OPTIONAL ACCESSORIES CAUTION: These accessories or attachments are recommended for use with your Makita tool specified in this manual. The use of any other accessories or attachments might present a risk of injury to persons. Only use accessory or attachment Fig.12 for its stated purpose. ► 1 . Rotation button... - Page 12 Makita Corporation 3-11-8, Sumiyoshi-cho, Anjo, Aichi 446-8502 Japan 885A58-927 20230915 www.makita.com...
