- Page 1 Bender MP9000 More metal fabrication for your money OPERATIONS MANUAL 4715 136th Avenue, Hamilton, MI 49419 (262) 679-0504 metalprocorp.com August 2022...
-
Page 2: Table Of Contents
Bender MP9000 More metal fabrication for your money TABLE OF CONTENTS Introduction ..............1 Warranty .................1 Return and Refund Policy..........1 Safety ................2 Unboxing and Installation Process .........2 Operating Instructions ............2 Machine Description ............3 Dimensions and Capacity ..........4 Capacity................4 Specifications ..............4 Hardware and Components..........4 Bill of Material ..............5... -
Page 3: Introduction
WARRANTY INFORMATION Metalpro Corporation (seller) will, within one (1) year from date of purchase replace F.O.B. the factory, any goods which are defective in materials and/or workmanship provided the buyer, at the seller’s option, return the defective goods prepaid to the seller. Punches, dies, and/or blades are warranted to be free of defects in materials and workmanship with thirty (30) days of purchase date. -
Page 4: Safety
For assembly and installation, refer to the exploded views as well as the bill of materials. • Use a forklift or pallet jack to move the palletized MP9000 Bender as close as practical to the workstation where the bender will be assembled and installed. -
Page 5: Machine Description

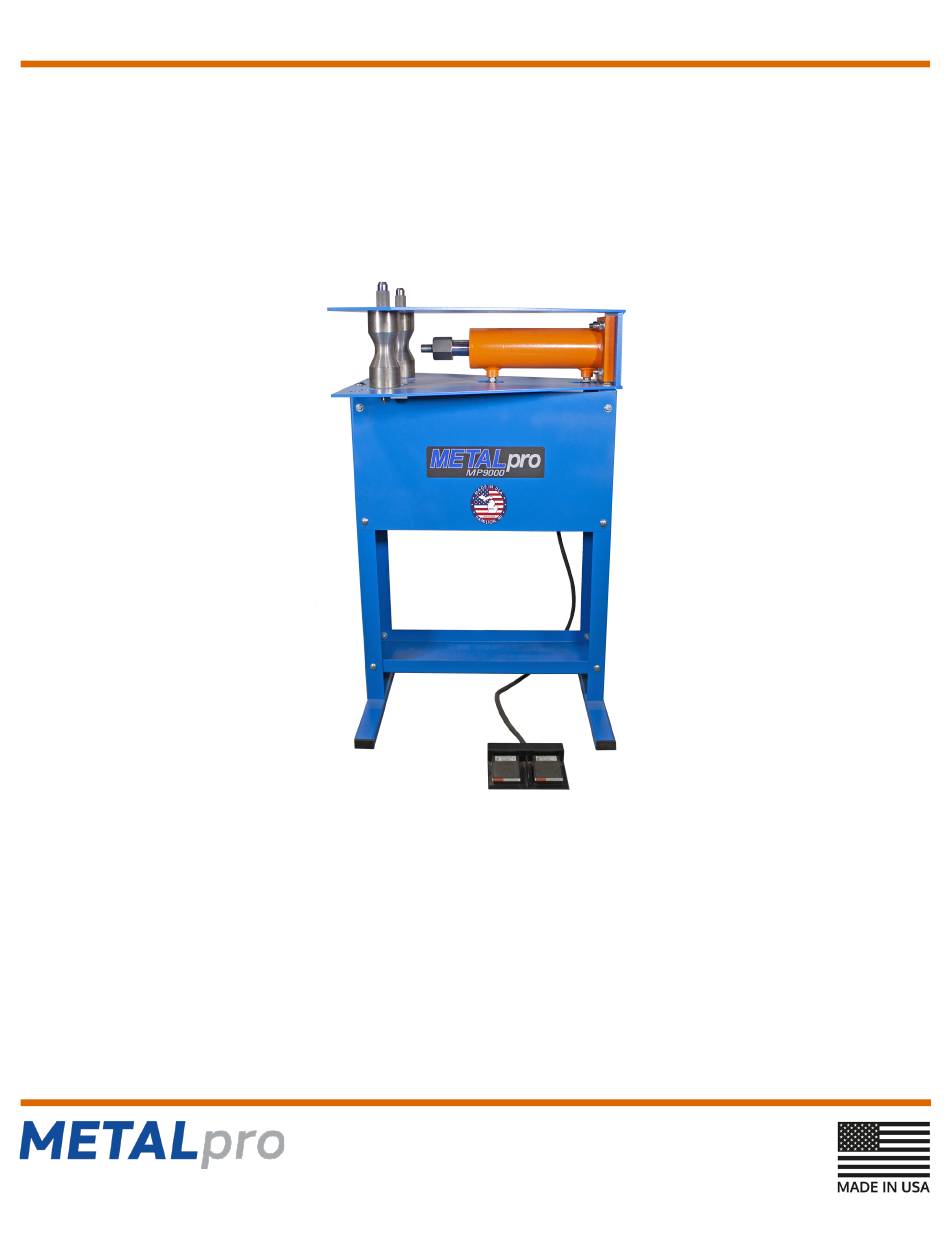

The MP9000 Bender is a multipurpose bending machine. The straightforward design allows for quick set up and ease of use. The MP9000 Bender is a single stroke machine. The foot switch controls stroke direction. When the pedal is held in one direction, the bender cylinder rod will travel in that direction and will stop only if the lever is released, or the maximum stroke is reached. -
Page 6: Dimensions And Capacity
Approximately 4 to 5 strokes per minute for the smallest pipe Maximum force 12 tons BENDER CAPACITY The MP9000 Bender easily handles a wide variety of professional, farm, and industrial production jobs. Using different dies, the ¼ ¼ machine can bend from "... -
Page 7: Bill Of Material
Bender MP9000 More metal fabrication for your money BILL OF MATERIAL Item MP Number Description 9013 power head weldment ..... .1... -
Page 8: Leg Stand Assembly
Bender MP9000 More metal fabrication for your money LEG STAND ASSEMBLY – Refer to Figure 1 Step 1: Place the two legs (59) on edge and position the lower shelf (57) and the upper shelf (58) with pump/motor assembly between them. -
Page 9: Exploded View
Bender MP9000 More metal fabrication for your money FIGURE 1: EXPLODED VIEW metalprocorp.com (262) 679-0504 page 7... -
Page 10: Hydraulic Installation
Bender MP9000 More metal fabrication for your money HYDRAULIC INSTALLATION – Refer to Figure 2 CAUTION: DO NOT ALLOW PIPE TAPE TO OBSTRUCT THE FITTING OPENINGS. IF YOU USE PIPE SEALANT, USE ONLY ENOUGH TO ACHIEVE A GOOD SEAL. DO NOT ALLOW ANY OF THE PIPE SEALING COMPOUND TO GET IN THE HYDRAULIC SYSTEM. -
Page 11: Ram Stroke
Bender MP9000 More metal fabrication for your money RAM STROKE Tube Diameter – Nominal (inches) Bend Angle .500 .750 1.000 1.250 1.500 2.000 Included Degrees Hole 5 Hole 4 Hole 3 Hole 2 Hole 2 Hole 1 3.106 4.453 5.711 6.320... -
Page 12: Maintenance
MAINTENANCE During maintenance of the machine, check condition of all hydraulic and moving parts. Repair any damage and replace worn parts. Call METALpro customer service with any questions or concerns. CLEANING WARNING: ALWAYS WEAR EYE PROTECTION WHEN CLEANING THE Bender.
