THE-8000 DVB-C
Encoder Modulator User Manual
Teknoline Technological Systems S.A.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the THE-8000 DVB-C and is the answer not in the manual?

Questions and answers

Related Manuals for Teknoline THE-8000 DVB-C

Summary of Contents for Teknoline THE-8000 DVB-C

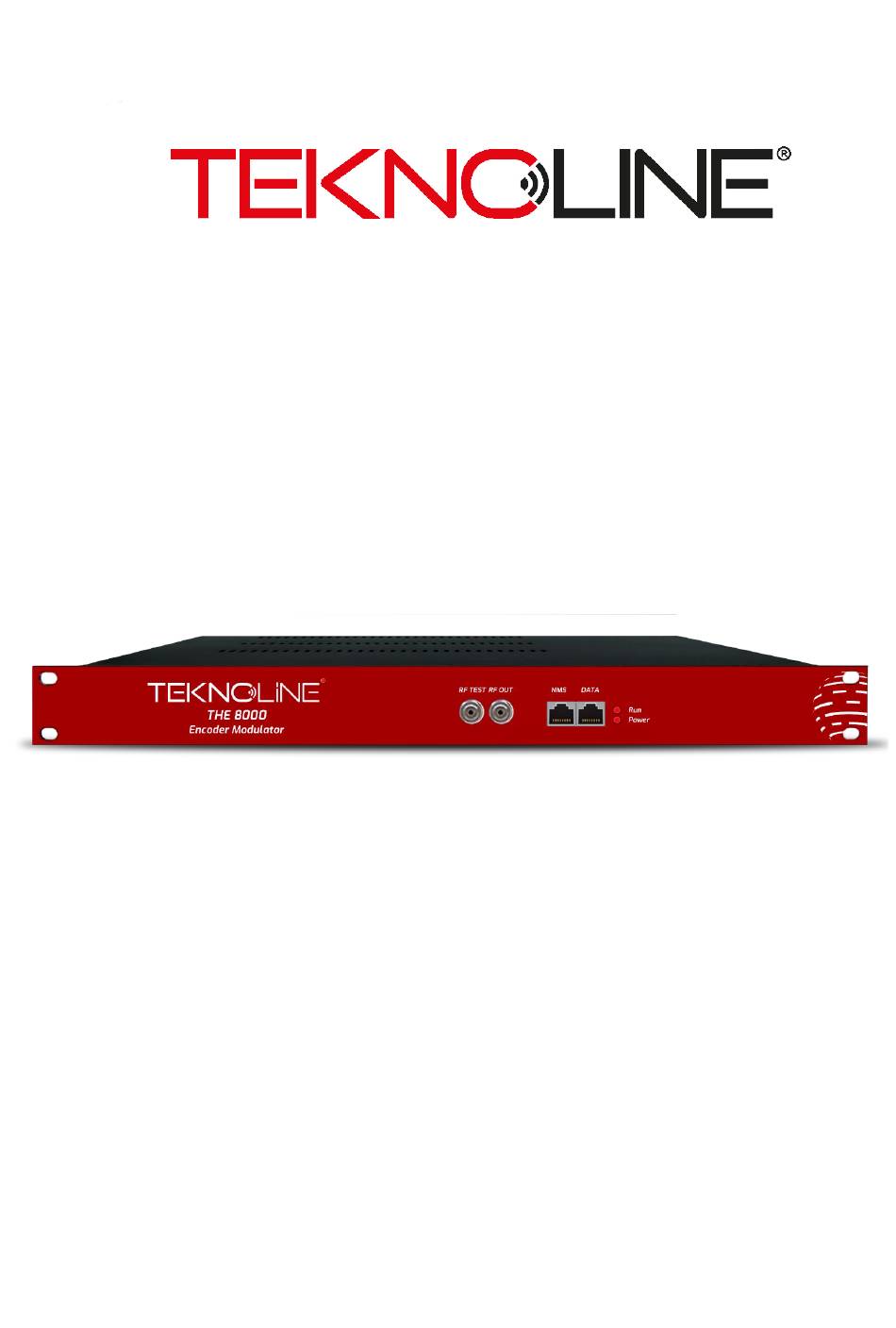

  • Page 1 THE-8000 DVB-C Encoder Modulator User Manual Teknoline Technological Systems S.A.

  • Page 2: Table Of Contents

    Directory CHAPTER 1 INTRODUCTİON ......................1 1.1 P ..........................1 RODUCT VERVİEW 1.2 K ............................1 EATURES 1.3 S ............................. 1 PECİFİCATİONS 1.4 P ..........................3 RİNCİPLE HART 1.5 A ......................3 PPEARANCE AND ESCRİPTİON CHAPTER 2 INSTALLATİON GUİDE ....................4 2.1 G ........................

  • Page 3: Chapter 1 Introduction

    Chapter 1 Introduction 1.1 Product Overview THE-8000 is a professional high integration device which includes encoding, multiplexing, and modulating in one box. It supports 8 HDMI inputs, 128 IP inputs and DVB-C RF out with 4 adjacent carries and 4 MPTS out as mirror out of the 4 modulation carriers via DATA (GE) port.

  • Page 4: Specifications

    1.3 Specifications Input 8 HDMI inputs; 128 IP inputs Encoding MPEG-4 AVC/H.264 1920×1080_60P, 1920×1080_60i, 1920×1080_50P, 1920×1080_50i, In-put 1280×720_60P, 1280×720_50P, 720×576_50i,720×480_60i, Resolution Video 1920×1080_30P, 1920×1080_25P, Out-put 1280×720_30P, 1280×720_25P, 720×576_25P,720×480_30P, Bit-rate 1Mbps~13Mbps each channel Rate Control CBR/VBR Encoding MPEG-1 Layer 2, LC-AAC, HE-AAC and AC3 Pass Through Sampling rate 48KHz Resolution...

  • Page 5: Principle Chart

    4 IP MPTS output over UDP/RTP/RTSP, 1*1000M Base-T Ethernet interface Network management(WEB) System Chinese and English language function Ethernet software upgrade Dimension (W×L×H) 482mm×328mm×44mm Miscellaneous Environment 0~45℃(work)；-20~80℃（Storage） Power requirements AC 110V± 10%, 50/60Hz, AC 220 ±10%,50/60Hz 1.4 Principle Chart HDMI 1 Encoding Carrier 1 MUX 1#...

  • Page 6: Chapter 2 Installation Guide

    RF test and RF out port Port Power supply and Grounding Pole 8 HDMI inputs Run Indicators Power Indicators DATA: IP input and output port(GE) NMS (Network management port) Chapter 2 Installation Guide This section is to explain the cautions the users must know in some case that possible injure may bring to users when it’s used or installed.

  • Page 7: Device's Installation Flow Chart Illustrated As Following

    2.3 Device’s Installation Flow Chart Illustrated as following Connecting Grouding Connecting Acquisition Installing Setting Running Wire and Signal Check Device Parameter Device Power cable Cord 2.4 Environment Requirement Item Requirement When user installs machine frame array in one machine hall, the Machine Hall distance between 2 rows of machine frames should be 1.2~1.5m Space...

  • Page 8: Chapter 3 Web Nms Operation

    they are the most important guarantee of lightning arresting and interference rejection. Therefore, the system must follow this rule.  Grounding conductor must adopt copper conductor in order to reduce high frequency impedance, and the grounding wire must be as thick and short as possible. ...

  • Page 9: Operation

    Figure-1 3.2 Operation Summary → Status When we login into encoder module, it displays the status interface as Figure-2. User can click any item here to enter the Current software version information corresponding interface check information or set the parameters. Figure-2 Parameters →...
  • Page 10 General settings for the Encoding program: User can edit any item listed as needed. The light will turn green if there is source inputting Figure-3 from module. Otherwise, the light will turn red. Parameters → OSD: Clicking “OSD”, it displays the interface as Figure-4/5/6 where to set Logo/ Caption/ QRCode parameters.
  • Page 11 Select the text color and background color Put your caption anywhere Enter your text here Set when to show caption. So do Logo and QRCode. Figure-5 Put the QRcode everywhere Input the QRcode URL here Browse and select the QRcode which has been created Figure-6 Page 9 / 19...
  • Page 12 Parameters → TS Config: From the menu on left side of the webpage, clicking “TS Config”, it displays the interface where users can configure the TS output parameters.  TS Config→Output TS X: Clicking “Output TS X”, it displays the interface where users can select the TS output carrier (Figure-7) Clicking output TS 1-4 to set each output channel’s programs, general parameters...
  • Page 13 Output Area Input Area Operation Area Click this button to get a pop up window to add the IP input streams Page 11 / 19...
  • Page 14 Add the IP input streams Figure-8 Configure ‘Input Area’ and ‘Output Area’ with buttons in ‘Operation Area’. Instructions are as below: : To check encoder stream locked or not, green means current encoder stream locked : To check current TS overflowing or not, red color means current TS overflowing, need reduce program : To filter/not filter the source CA information : To enable/disable the PID remapping...
  • Page 15 (Figure-9) where users can input new information. Figure-9  TS Config→General: From the TS Config menu on up side of the webpage, clicking “General”, it displays the interface where users can enable PSI/SI table out, NIT insert and Character Encoding. (Figure-10) Figure-10 ...
  • Page 16 Figure-11 Parameters → Modulator: Clicking “Modulator”, it displays the Modulator Configuration screen as Figure-12. THE- 8000 supports 4 DVB-C RF out. Here user can set modulation parameters, such as level, frequency and bandwidth etc. Quickly Config Channel Config Figure-12 Parameters → IP Stream: THE-8000 supports 4 TS to output in IP format through the DATA port.
  • Page 17 Click icon to get a pop up window to edit the parameters Figure-13 When users click “pen” button, it triggers a dialog box (Figure-14) where users can set the corresponding channel configuration. Figure-14 When users click “ASI Out” list, users can set MPTS 1, 2 3 or 4 as the TS out via ASI out （ASI out is optional as per your order）.
  • Page 18 Figure-15 System → Account: Clicking “Account”, it displays the screen as Figure-16 where to set the login account and password for the web NMS. Both the current username and password are “admin”. Figure-16 System → Configuration: Clicking “Configuration”, it displays the screen as Figure-17 where to save/ restore/factory setting/ backup/ load your configurations.
  • Page 19 Figure-17 System → Firmware: Clicking “Firmware”, it displays the screen as Figure-18 where to update firmware for the modulator. Figure-18 System→ Date/Time: From the menu on left side of the webpage, clicking “Date/Time”, it will display the screen as Figure-19 where to set date and time for the device. Figure-19 Page 17 / 19...

  • Page 20: Chapter 4 Troubleshooti̇ng

    System→ Log: Clicking “Log”, it displays the log interface as Figure-20 where to check or export the Kernel/System log. Figure-20 Page 18 / 19...
