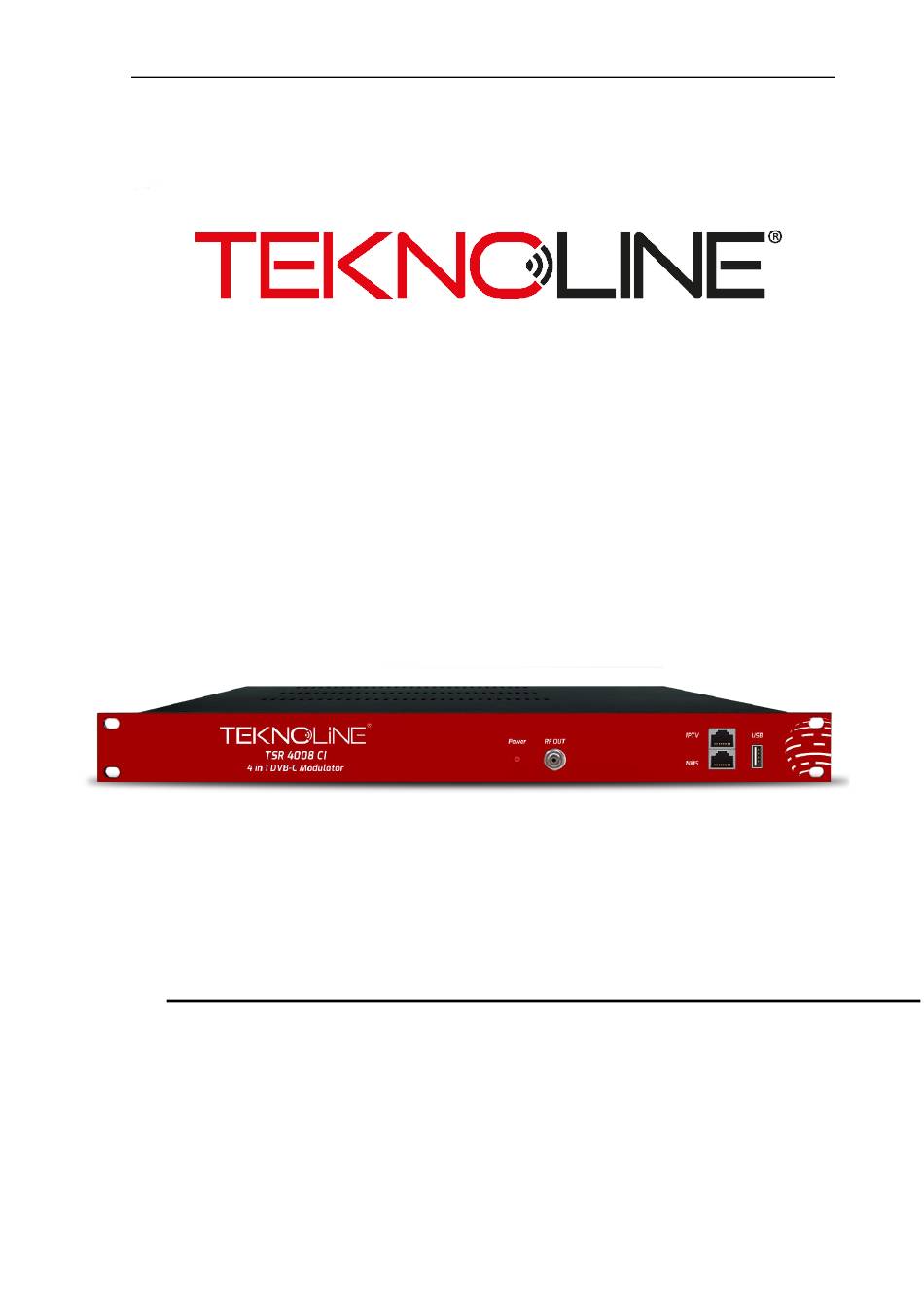

TSR-4008CI 4 in 1 DVB-C Modulator
User's Manual
Teknoline Technological Systems S.A.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TSR-4008CI and is the answer not in the manual?

Questions and answers

Related Manuals for Teknoline TSR-4008CI

Summary of Contents for Teknoline TSR-4008CI

  • Page 1 TSR-4008CI 4 in 1 DVB-C Modulator User’s Manual Teknoline Technological Systems S.A.

  • Page 2: Table Of Contents

    DIRECTORY Chapter 1 Product Outline ................1 1.1 Outline ........................1 1.2 Features ........................1 1.3 Principle Chart ......................2 1.4 Technical Specifications ..................... 2 1.5 Appearance and description ..................3 Chapter 2 Installation Guide ................5 2.1 Acquisition Check ..................... 5 2.2 Installation Preparation ....................

  • Page 3: Chapter 1 Product Outline

    Moreover, the four CAMs/CIs accompanied and BISS modules can descramble the programs input from 8 Tuner and IP input. TSR-4008CI can be upgraded and controlled through network system, which allows it to be widely used in setting up digital broadcasting network and very adaptable to newly generation CATV broadcasting system.

  • Page 4: Principle Chart

    TSR-4008CI 4 in 1 DVB-C Modulator User’s Manual 1.3 Principle Chart Tuner 1 DVB-C Carrier 1 MPTS 1 Tuner 4 DVB-C Carrier 2 Tuner 5 MPTS 2 DVB-C Carrier 3 Tuner 8 MPTS 3 IP 128 DVB-C Carrier 4 MPTS 4 CAM1-4 1.4 Technical Specifications...

  • Page 5: Appearance And Description

    TSR-4008CI 4 in 1 DVB-C Modulator User’s Manual Maximum PID 256 per input channel Remapping A/V PID filtering Multiplexing PID Remapping Function Accurate PCR adjusting Generate PSI/SI table automatically Maximum simulcrypt CA Scrambling Standard ETR289, ETSI 101 197, ETSI 103 197...
  • Page 6 TSR-4008CI 4 in 1 DVB-C Modulator User’s Manual Rear Panel Illustration Module 1: with 2 CAMs /Smart card slots and 2 tuner signal input and loop-through Module 2: with 2 CAMs /Smart card slots and 2 tuner signal input and loop-through...

  • Page 7: Chapter 2 Installation Guide

    TSR-4008CI 4 in 1 DVB-C Modulator User’s Manual Chapter 2 Installation Guide 2.1 Acquisition Check When user opens the package of the device, it is necessary to check items according to packing list. Normally it should include the following items: ...
  • Page 8 TSR-4008CI 4 in 1 DVB-C Modulator User’s Manual 1.2~1.5m and the distance against wall should be no less than 0.8m. Electric Isolation, Dust Free Volume resistivity ground anti-static material: Machine Hall Floor 1X10 ~1X10 10 Ω ，Grounding current limiting resistance: 1M (Floor bearing should be greater than 450Kg/㎡)

  • Page 9: Wire's Connection

    When the device adopts united way, the grounding resistance should be smaller than 1Ω. Caution: Before connecting power cord to TSR-4008CI 4 in 1 Modulator, user should set the power switch to “OFF”. 2.4 Signal Cable Connection The signal connections include the connection of input signal cable and the connection of output signal cable.

  • Page 10: Chapter 3 Web-Based Nms Management

    Users cannot use front buttons to set configuration, and can only control and set the configuration in computer by connecting the device to web NMS Port. Users should ensure that the computer’s IP address is different from the TSR-4008CI’s IP address; otherwise, it would cause IP conflict.
  • Page 11 This device supports 4 Tuner (DVB- C/T/T2/S/S2 optional) + 4 Tuner with CAM (DVB-C/T/T2/S/S2/ ATSC optional) (Figure-3) Figure-3 Parameters → CI Card: TSR-4008CI supports 4 CI cards to descramble programs from Tuner input. Users can click “CI Card” to configure the 4 cards respectively. (Figure-4)
  • Page 12 TSR-4008CI 4 in 1 DVB-C Modulator User’s Manual Card Selection Area Figure-4 CI Max Bit rate: CI Max Bitrate options range from 48-108Mbps. Select a value in the pull-down list as principle: Actual Input Bitrate≤ Max Bitrate≤CI Max decrypting capacity.
  • Page 13 TSR-4008CI 4 in 1 DVB-C Modulator User’s Manual Program list from the channel selected in ‘Input Source’ Figure-5 Check the program(s) to be descrambled and click button to start descrambling the checked program(s). The program quantity to be descrambled will depend on the CAM/CI performance you apply to.
  • Page 14 TSR-4008CI 4 in 1 DVB-C Modulator User’s Manual Figure-6 BISS TS Mode: ‘Skip BISS’ means to skip the Biss function without descrambling. Word Mode supports “Mode-1” and “Mode-E” First select input source and BISS TS Mode, click “Set Config” to save; Second set “Descrambler Key”...
  • Page 15 TSR-4008CI 4 in 1 DVB-C Modulator User’s Manual Set output IP address of streamer Figure-8 Configure ‘Input Area’ and ‘Output Area’ with buttons in ‘Operation Area’. Instructions are as below: : To add IP in which can from data port...
  • Page 16 TSR-4008CI 4 in 1 DVB-C Modulator User’s Manual Program Modification: The multiplexed program information can be modified by clicking the program in the ‘output’ area. For example, when clicking , it triggers a dialog box (Figure- 9) where users can input new information.
  • Page 17 TSR-4008CI 4 in 1 DVB-C Modulator User’s Manual Figure-11 Parameters → Scrambler: Click “Scrambler”, it displays the scrambler Configuration screen as Figure-12. Here user can set scrambler modulation parameters. The programs of Scr CH1-4 correspond to Output TS1- CA channel select...
  • Page 18 TSR-4008CI 4 in 1 DVB-C Modulator User’s Manual Parameters → Modulator: Click “Modulator”, it displays the Modulator Configuration screen as Figure-13. Here user can set modulation parameters. Quickly Config Channel Config Figure-13 When users click “quickly config” button, it triggers a dialog box as follow where users can set all channels configration.
  • Page 19 TSR-4008CI 4 in 1 DVB-C Modulator User’s Manual set the corresponding channel configration. Parameters → IP Stream: TSR-4008CI supports TS to output in IP (4*MPTS) format through the DATA port. Click ‘IP Stream’, it displays the interface as Figure-14 where to set IP out parameters. Quickly Config...
  • Page 20 TSR-4008CI 4 in 1 DVB-C Modulator User’s Manual Parameters → Network: Click ‘Network’, it displays the interface as Figure-15 where to set network parameters. Set NMS IP address, the default address 192.168.0.136 Set data port IP address Figure-15 System → Password:...
  • Page 21 TSR-4008CI 4 in 1 DVB-C Modulator User’s Manual and password for the web NMS. Figure-16 System → Configuration: Click “Configuration”, it displays the screen as Figure-17 where to set your configurations for the device. Select areas Figure-17 System → Firmware: Click “Firmware”, it displays the screen as Figure-18 where to update firmware for the device.
  • Page 22 TSR-4008CI 4 in 1 DVB-C Modulator User’s Manual Click “Date/Time”, it displays the screen as Figure-19 where to set the device’s date and time. Figure-19 System → Log: From the menu on left side of the webpage, clicking “Log”, it will display the log interface as Figure-20 where to check or export the Kernel/System log.
