Teknoline TQM 1616 User Manual

16 in 1 mux scrambling qam modulator
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
TQM 1616 16 in 1 Mux Scrambling QAM Modulator
User's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TQM 1616 and is the answer not in the manual?

Questions and answers

Related Manuals for Teknoline TQM 1616

Summary of Contents for Teknoline TQM 1616

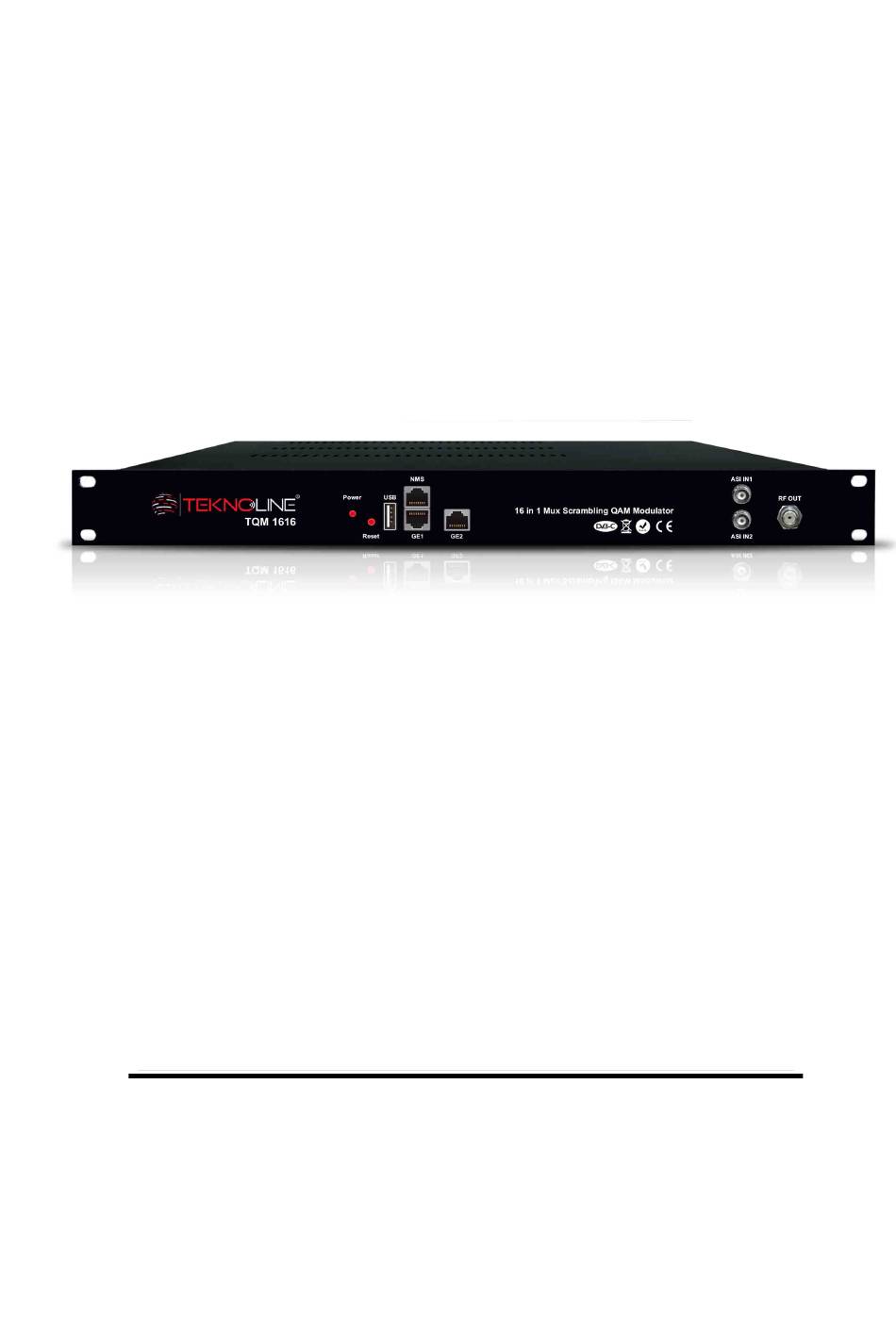

  • Page 1 TQM 1616 16 in 1 Mux Scrambling QAM Modulator User’s Manual...

  • Page 2: Table Of Contents

    DIRECTORY Chapter 1 Product Outline..................1 1.1 Outline...........................1 1.2 Features..........................1 1.3 Principle Chart........................2 1.4 Technical Specifications.......................2 1.5 Appearance and description....................3 Chapter 2 Installation Guide..................5 2.1 Acquisition Check.........................5 2.2 Installation Preparation......................5 2.3 Wire’s Connection........................ 7 2.4 Signal Cable Connection...................... 7 Chapter 3 Web-based NMS Management..............9 3.1 login............................

  • Page 3: Chapter 1 Product Outline

    TQM1616 16 in 1 Mux-Scrambling QAM Modulator User’s Manual Chapter 1 Product Outline 1.1 Outline TQM1616 is a high performance and cost-effective QAM modulator designed by TEKNOLİNE. It supports 16 DVB-C (DVB-T/-T2/-S/-S2, ATSC, ISDB-T Optional) FTA tuner input, maximum 512 IP input through GE1 and TS input for re-mux through 2 ASI ports.

  • Page 4: Principle Chart

    TQM1616 16 in 1 Mux-Scrambling QAM Modulator User’s Manual 1.3 Principle Chart 1.4 Technical Specifications 16 DVB-C (DVB-T/-T2/-S/-S2) FTA Tuner 512 IP input through GE1 over UDP and RTP protocol Input 2 ASI input, BNC interface J.83A(DVB-C), J.83B, Standard J.83C DVB-C Frequency In 30 MHz~1000 MHz...

  • Page 5: Appearance And Description

    TQM1616 16 in 1 Mux-Scrambling QAM Modulator User’s Manual Max simulscrypt CA 4 Scrambling Scramble Standard ETR289, ETSI 101 197, ETSI 103 197 Parameters Connection Local/remote connection QAM Channel 16 non-adjacent carriers output Standard EN300 429/ITU-T J.83A/B ≥40db RF frequency 50~960MHz, 1KHz step RF output level -20~+10dbm(87~107 dbµV),0.1db step...
  • Page 6 TQM1616 16 in 1 Mux-Scrambling QAM Modulator User’s Manual NMS port: Network management interface Data port: GE1: IP input and output port GE2: reserved for future ASI input port RF out port Rear Panel Illustration 16 channels RF IN Interface Integrated power switch and socket Grounding Wire...

  • Page 7: Chapter 2 Installation Guide

    TQM1616 16 in 1 Mux-Scrambling QAM Modulator User’s Manual Chapter 2 Installation Guide 2.1 Acquisition Check When user opens the package of the device, it is necessary to check items according to packing list. Normally it should include the following items: ...
  • Page 8 TQM1616 16 in 1 Mux-Scrambling QAM Modulator User’s Manual should be 1.2~1.5m and the distance against wall should be no less than 0.8m. Electric Isolation, Dust Free Volume resistivity of ground anti-static material: Machine Hall Floor 1X10 ~1X10 10  ，Grounding current limiting resistance: 1M (Floor bearing should be greater than 450Kg/㎡) 5~40℃(sustainable )，0~45℃(short time)，...

  • Page 9: Wire's Connection

    TQM1616 16 in 1 Mux-Scrambling QAM Modulator User’s Manual 2.2.4 Frame Grounding All the machine frames should be connected with protective copper strip. The grounding wire should be as short as possible and avoid circling. The area of the conduction between grounding wire and grounding strip should be no less than 25mm 2.2.5 Device Grounding Connecting the device’s grounding rod to frame’s grounding pole with copper wire.
  • Page 10 TQM1616 16 in 1 Mux-Scrambling QAM Modulator User’s Manual  RF Input/Loop Cable Illustration:  ASI input cable illustration:...

  • Page 11: Chapter 3 Web-Based Nms Management

    TQM1616 16 in 1 Mux-Scrambling QAM Modulator User’s Manual Chapter 3 Web-based NMS Management Users cannot use front buttons to set configuration, can only control and set the configuration in computer by connecting the device to web NMS Port. Users should ensure that the computer’s IP address is different from the TQM1616’s IP address;...
  • Page 12 TQM1616 16 in 1 Mux-Scrambling QAM Modulator User’s Manual System language setting System information User can click any item here to enter the corresponding interface to check information or set the parameters. Figure-2 Parameters → Tuner 1-16 TQM1616 support 16 DVB-S/S2 (DVB-T/T2/C Tuner input. From the menu on left side of the webpage, clicking “Tuner1-16”, it displays the information of each encoding channel as Figure-3.
  • Page 13 TQM1616 16 in 1 Mux-Scrambling QAM Modulator User’s Manual Figure-3 Parameters → TS Config: From the menu on left side of the webpage, clicking “TS Config”, it displays the interface where users can configure the TS output parameters.  TS Config→Output TS: From the menu on top side of the webpage, clicking “Output TS X”, it displays the interface where users can select output TS channel.
  • Page 14 TQM1616 16 in 1 Mux-Scrambling QAM Modulator User’s Manual  TS Config→Stream select: Clicking “Stream select”, it displays the interface where users can select program(s) to multiplex out and modify program info. (Figure-5) Input Area Output Area Operation Area Figure-5 Configure ‘Input Area’...
  • Page 15 TQM1616 16 in 1 Mux-Scrambling QAM Modulator User’s Manual program to the right box to output. Similarly, user can cancel the multiplexed programs from the right box. To select all the input programs To select all the output programs To parse programs time limitation of parsing input programs ...
  • Page 16 TQM1616 16 in 1 Mux-Scrambling QAM Modulator User’s Manual Figure-7  TS Config→PID Bypass: Clicking “PID Bypass”, it displays the interface as Figure-8 where user can add PIDs to be passed, click the “+” symbol, input current IP channel number, then input current IP source PID and output PID which is customer needed , then click “set”...
  • Page 17 TQM1616 16 in 1 Mux-Scrambling QAM Modulator User’s Manual Figure-8 Parameters → Scrambler: From the menu on left side of the webpage, clicking “Scrambler”, it displays the interface where users can choose the programs to scramble (Figure-9). Output carrier select CA channel select EMMG and ECMG working state, green means it work...
  • Page 18 TQM1616 16 in 1 Mux-Scrambling QAM Modulator User’s Manual Quickly Config Channel Config Figure-11 When users click “quickly config” button, it triggers a dialog box as follow where users can set all channels configration. When users click “Channel config” button, it triggers a dialog box as follow where users can set the corresponding channel configration.
  • Page 19 TQM1616 16 in 1 Mux-Scrambling QAM Modulator User’s Manual through the DATA port. Clicking “IP Stream”, it displays the interface where to set IP out parameters (Figure-12). Click here Config IP output Figure-12 System → Network: Clicking “Network”, it displays the interface as Figure-13 where to set network parameters.
  • Page 20 TQM1616 16 in 1 Mux-Scrambling QAM Modulator User’s Manual Figure-13 System → password From the menu on left side of the webpage, clicking “Password”, it displays the screen as Figure-14 where to set the login account and password for the web NMS. Figure-14 System →...
  • Page 21 TQM1616 16 in 1 Mux-Scrambling QAM Modulator User’s Manual From the menu on left side of the webpage, clicking “Firmware”, it will display the screen as Figure-16 where to update firmware for this modulator. Figure-16 System→ Log: From the menu on left side of the webpage, clicking “Log”, it will display the log interface as Figure-17 where to check or export the Kernel/System log.

  • Page 22: Chapter 4 Troubleshooting

    TQM1616 16 in 1 Mux-Scrambling QAM Modulator User’s Manual Chapter 4 Troubleshooting ISO9001 quality assurance system has been approved by CQC organization. For guarantee the products’ quality, reliability and stability. All products have been passed the testing and inspection before ship out factory. The testing and inspection scheme already covers all the Optical, Electronic and Mechanical criteria which have been published by .

  • Page 23: Chapter 5 Packing List

    TQM1616 16 in 1 Mux-Scrambling QAM Modulator User’s Manual Chapter 5 Packing List TQM1616 16 in 1 Mux-Scrambling QAM Modulator  User’s Manual  Power Cord ...
