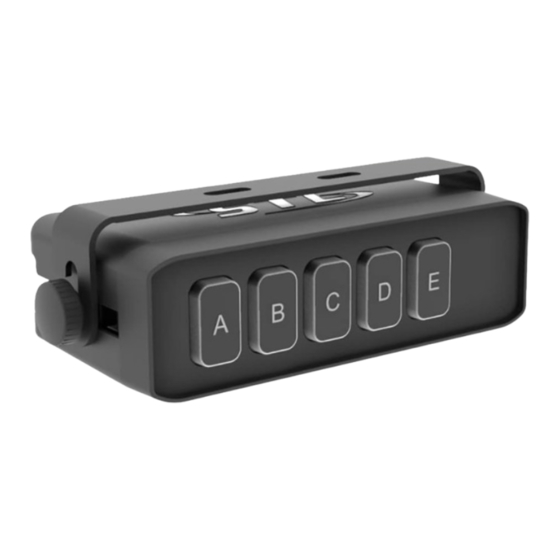

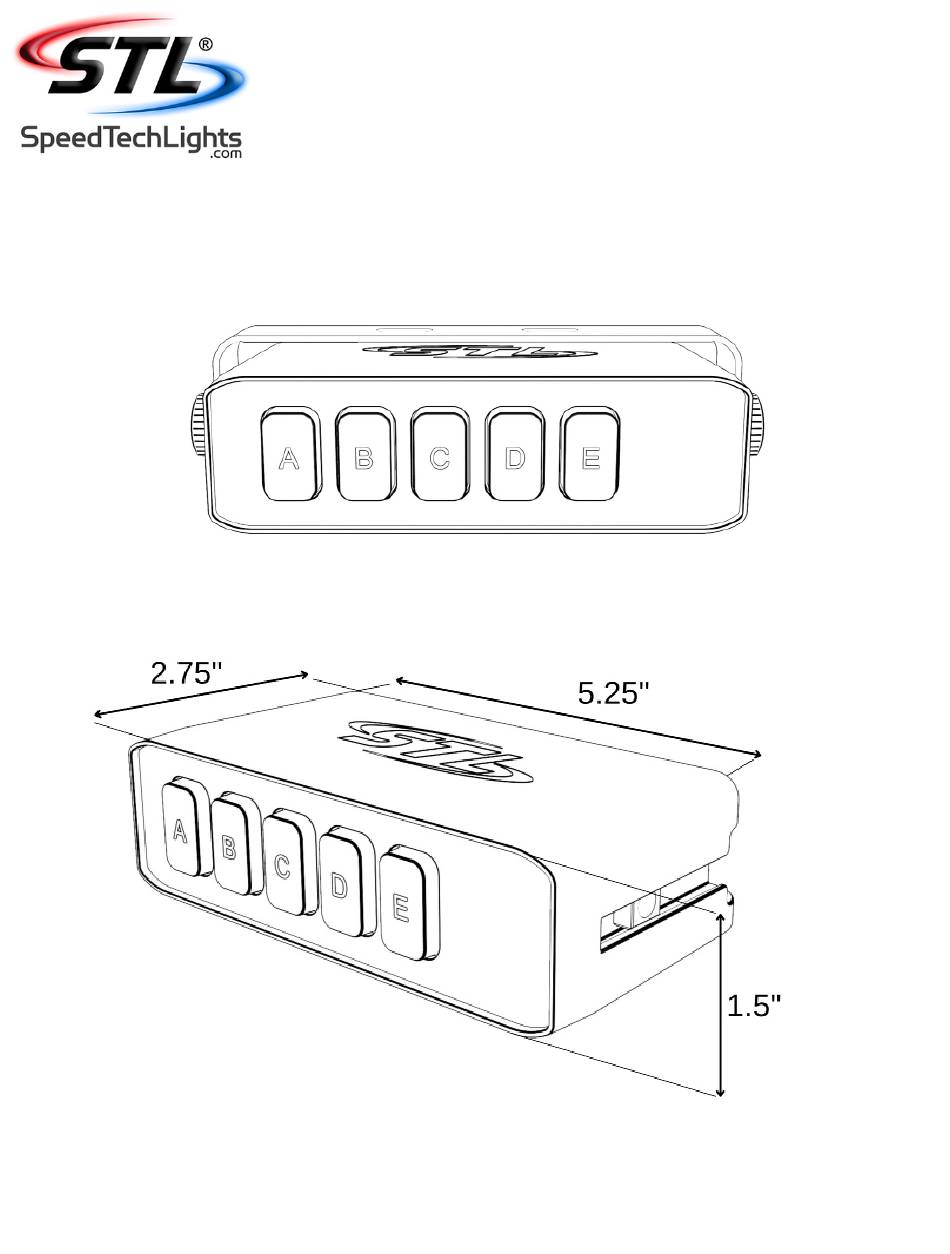

- Page 1 5 SWITCH CONTROL BOX C-5SCB INSTRUCTION MANUAL SpeedTech Lights, Inc © 2023...
- Page 2 This document must be delivered to and read by the end user and installer as it serves to provide you with the required information for proper and safe use of your STL product. Before operating this or any STL products the user and installer must read this manual all the way through. You will find important information in this manual that could prevent property damage and/or serious injury to the user and installer.
-
Page 3: Maintenance
Grommets, cable ties, looms, and other installation hardware should be used to anchor and protect all wiring. Fuses should be properly sized and located as close to the power take off points as possible to protect the wiring and device. To protect against short circuits, a fuse is included by STL for all products. - Page 4 5 SWITCH CONTROL BOX Wiring Diagram Wire Color Function Wire Color Function A (Toggle Power Switch) 15A Max White Red* Positive Blue B (Toggle Power Switch) 15A Max Negative Black* Brown C (Toggle Power Switch) 15A Max White N Night Mode (Activate Button Backlight LED) D (Toggle Power Switch) 15A Max Orange * Indicates a main power cable.
- Page 5 5 SWITCH CONTROL BOX U-Bracket (Included) • There will be a U-Bracket and (2) knob screws with (2) square washers. • Position and mount the U-Bracket to the mounting surface using user supplied hardware. • Take each knob screw and begin to fasten to each square washer just enough to keep the washer from falling off.
