Instruction Manual
VDOT-PYH3
Analog Photoelectric Smoke/Heat Detector

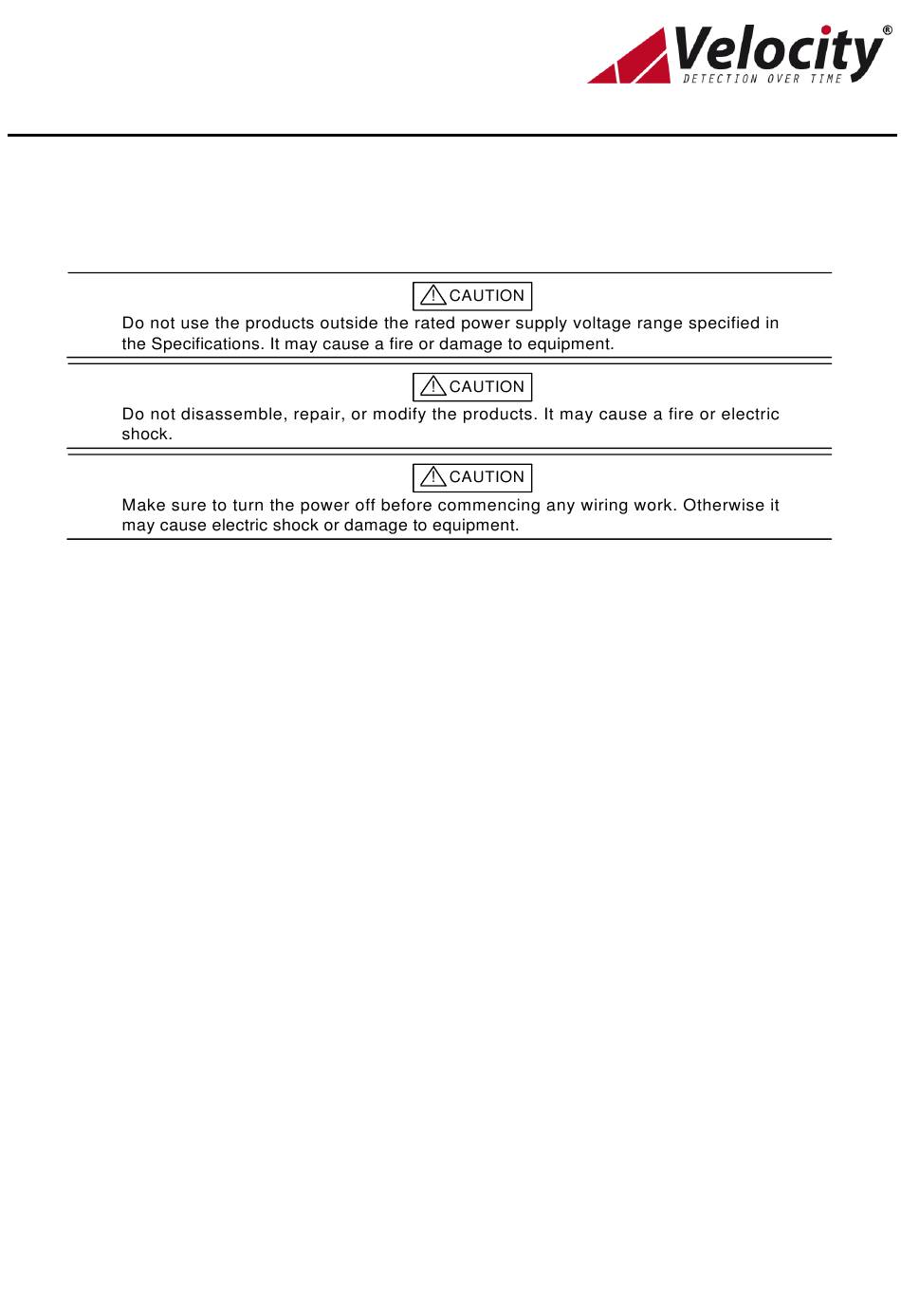

Before Installation
Please read these instructions carefully and keep for future reference.
The information in this document is subject to change without notice. For updates please refer to our website.
Note: Follow the requirements for the installation of the product in accordance with the Specifications. Otherwise it may
cause malfunction.
Note: Do not install the product in any location where oil, dust, iron powder, chemicals, or hydrogen sulphide may occur
or affect the product. It may cause damage to equipment.
Section 1 – INTRODUCTION
1.1
General description
The VDOT-PYH3 is an attractively-styled, low profile, analog addressable, combination photoelectric smoke/heat
detector for use with the Velocity MMP Control Panel series in analog fire alarm systems.
This analog addressable combination smoke/heat detector has a specific detector address to provide exact detector
locations throughout the installation. This allows for constant monitoring of the detector sensitivity and reports the
detector's condition to the fire alarm control panel.
1.2
LED Indicator
LED Indicators for 360° visibility (OMNIVIEW
Green LED flashes in normal operation.
Red LED illuminates and Green LED flashes in an alarm condition.
TM
360°) of VDOT-PYH3 operate as follows:
1
ZETA ALARMS LIMITED
72-78 MORFA ROAD, SWANSEA, SA1 2EN
https://www.velocitydetection.com
GLT-337-7-4 Rev.0
May. 31, 2023
