AVProEdge AC-EX70-444-RNE-SEA User Manual

4k60 (4:4:4) 70m hdmi matrix receiver
Hide thumbs

Advertisement

Table of Contents

AC-EX70-444-RNE
User Manual
Page 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AC-EX70-444-RNE-SEA and is the answer not in the manual?

Questions and answers

Related Manuals for AVProEdge AC-EX70-444-RNE-SEA

Summary of Contents for AVProEdge AC-EX70-444-RNE-SEA

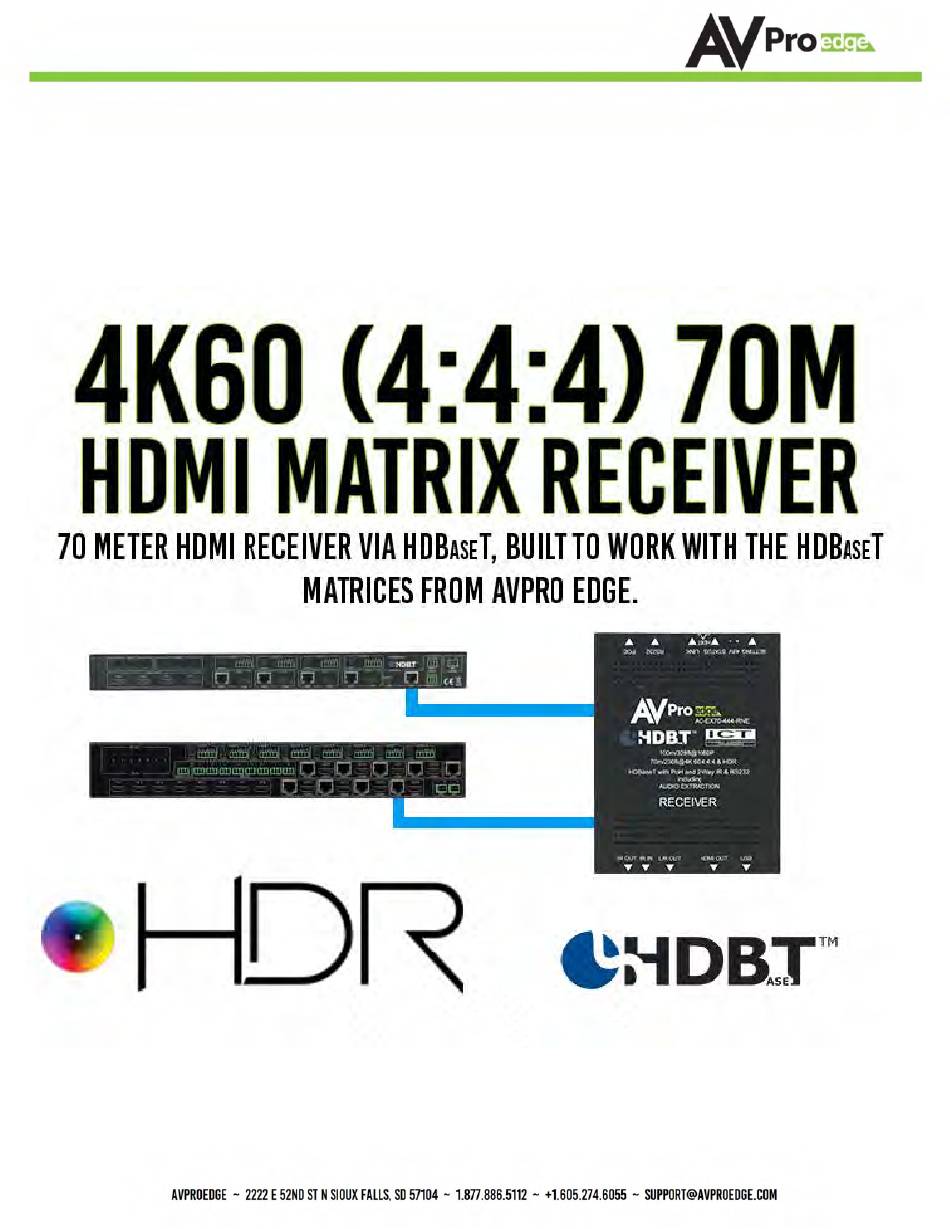

  • Page 1 AC-EX70-444-RNE User Manual Page 1...

  • Page 2: Product Overview

    AC-EX70-444-RNE The AC-EX70-444-RNE is a revolutionary 4K60 4:4:4, HDR and 18Gbps supported HDBaseT Receiver built to work with the AVPro Edge HDBaseT Matrix Switchers. This HDBaseT Receiver is the perfect companion to AVPro Edge's HDBaseT matrix switchers. It's slim design and rich features make this small unit the perfect solution for HDR Distribution.
  • Page 3 AC-EX70-444-RNE Page 3...
  • Page 4 3. If these suggestions do not work, enable the "Test Pattern" (See Below). If you see the pattern, the problem is between the Receiver and display/sink please try a different sink input or HDMI cable. 4. Contact AVProEdge if these suggestions do not work. Page 4...
  • Page 5 3. Bypass all patch panels and punch-down blocks. 4. Re-terminate connectors. Sometimes, even if a cable tester indicates the run is valid, something may be slightly off. 5. Contact AVProEdge if these suggestions do not work. STATUS- Above RJ45 (HDBT) Port:...
  • Page 6 AC-EX70-444-RNE RS-232 Configuration ■ RS-232 can be used to pass control signals bi-directionally to & from any RS-232 compatible device. This is commonly used to route control signals in the following way: 1. Control System --> Display/Projector (ie, Power On/Off) 2.
  • Page 7 AC-EX70-444-RNE  IR Configuration IR can be used in three ways: 1. From Rack (Control System Direct): Plug a MONO 3.5mm cable into an emitter port of any control system directly into the "IR IN" port on the AC-MX44/88-AUHD-HDBT switch to pass IR signals directly to the remote end. 2.
  • Page 8 AC-EX70-444-RNE IR Connections ■ IR INPUT IR OUTPUT (Receiver Eye) (IR Emitter) IR I-PASS (Direct connection to Matrix) Page 8...
  • Page 9 AC-EX70-444-RNE Audio Extraction on AC-EX70-RNE ■ A feature that is always active on the AC-EX70-444 (Tx and Rx) is Audio Extraction. This feature extracts PCM Audio (2ch) from the source device in order to be run to a separate amplifier or AVR.

  • Page 10: Troubleshooting

    Verify Source is set to output 2ch  Note: This unit does NOT downmix • Still having issues, contact us o Support Direct - +1-605-977-3477 o All Inquiries - 1-605-274-6055 o Submit a support request ticket  https://support.avproedge.com/hc/en-us/requests/new Page 10...
  • Page 11 Verify Source is set to output 2ch  Note: This unit does NOT downmix • Sill having issues, contact us o Support Direct - +1-605-977-3477 o All Inquiries - 1-605-274-6055 o Submit a support request ticket  http://support.avproedge.com/hc/en-us/requests/new Page 11...

  • Page 12: Maintenance

    AC-EX70-444-RNE  Maintenance To ensure reliable operation of this product as well as protecting the safety of any person using or handling this device while powered, please observe the following instructions. • Use the power supplies provided. If an alternate supply is required, check voltage, polarity and that it has sufficient power to supply the device it is connected to.

  • Page 13: Warranty

    If your product does not work properly because of a defect in materials or workmanship, AVProEdge (referred to as “the warrantor”) will, for the length of the period indicated as below, (Parts/ Labor (10) Years), which starts with the date of original purchase (“Limited Warranty period”), at its option either (a) repair your product with new or refurbished parts, or (b) replace it with a new or a refurbished product.
  • Page 14 AC-EX70-444-RNE _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ Page 14...
  • Page 15 AC-EX70-444-RNE _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ Page 15...
  • Page 16 AC-EX70-444-RNE Thank you for choosing AVProEdge! Please contact us with any questions, we are happily at your service! AVProEdge 2222 E 52nd St N ~ Sioux Falls, SD 57104 1-877-886-5112 ~ 605-274-6055 support@avproedge.com Page 16...
