- Page 1 AC-EX70-444-RNE User Manual Page 1...
-
Page 2: Product Overview

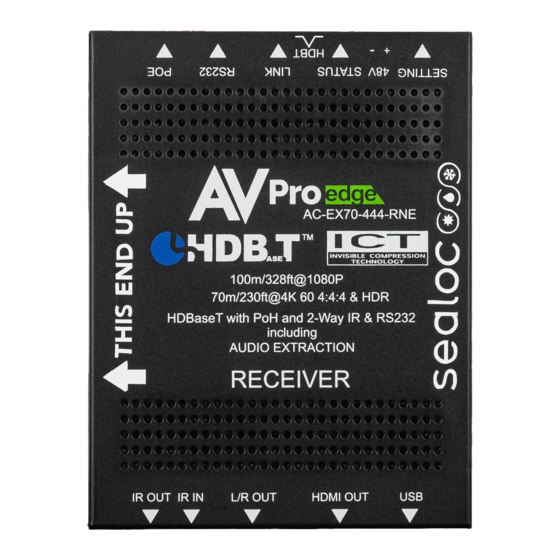

HDR Metadata remain intact making the transmission free of artifacts like banding. Other similar devices will deliver a sub-par image that has very visible banding and color shifting. Product Overview Model Numbers: AC-EX70-444-RNE ~ HDBaseT Receiver w/ IR, RS-232, ARC, Test Patterns Features: What's In The Box • HDMI 2.0(a/b) ■... - Page 3 AC-EX70-444-RNE Page 3...
- Page 4 3. If these suggestions do not work, enable the "Test Pattern" (See Below). If you see the pattern, the problem is between the Receiver and display/sink please try a different sink input or HDMI cable. 4. Contact AVProEdge if these suggestions do not work. Page 4...
- Page 5 3. Bypass all patch panels and punch-down blocks. 4. Re-terminate connectors. Sometimes, even if a cable tester indicates the run is valid, something may be slightly off. 5. Contact AVProEdge if these suggestions do not work. STATUS- Above RJ45 (HDBT) Port:...
- Page 6 AC-EX70-444-RNE RS-232 Configuration ■ RS-232 can be used to pass control signals bi-directionally to & from any RS-232 compatible device. This is commonly used to route control signals in the following way: 1. Control System --> Display/Projector (ie, Power On/Off) 2.
- Page 7 IR Remote. 3. From Remote End: Use an IR-Receiver Eye on the AC-EX70-444-RNE (IR In Port) in order to send IR signals BACK to the rack and out of the switch IR Out Port with an emitter.
- Page 8 AC-EX70-444-RNE IR Connections ■ IR INPUT IR OUTPUT (Receiver Eye) (IR Emitter) IR I-PASS (Direct connection to Matrix) Page 8...
- Page 9 AC-EX70-444-RNE Audio Extraction on AC-EX70-RNE ■ A feature that is always active on the AC-EX70-444 (Tx and Rx) is Audio Extraction. This feature extracts PCM Audio (2ch) from the source device in order to be run to a separate amplifier or AVR.
-
Page 10: Troubleshooting
AC-EX70-444-RNE Troubleshooting • Verify Power - Pg. 4 o Verify POE Switch is correct - Pg. 4 • Verify Connections - Check that all cables are properly connected o RX Indicator Troubleshooting Lights - Pg. 4-5 • Not passing video, this may be an EDID issue. Out of the box the default is 1080p 2CH. Try another canned EDID or copy the connected displays. - Page 11 • Extracted Audio Issues - Pg. 9 o Verify Source is set to output 2ch Note: This unit does NOT downmix • Sill having issues, contact us o Support Direct - +1-605-977-3477 o All Inquiries - 1-605-274-6055 o Submit a support request ticket http://support.avproedge.com/hc/en-us/requests/new...
-
Page 12: Maintenance
AC-EX70-444-RNE Maintenance To ensure reliable operation of this product as well as protecting the safety of any person using or handling this device while powered, please observe the following instructions. • Use the power supplies provided. If an alternate supply is required, check voltage, polarity and that it has sufficient power to supply the device it is connected to. -
Page 13: Warranty
If your product does not work properly because of a defect in materials or workmanship, AVProEdge (referred to as “the warrantor”) will, for the length of the period indicated as below, (Parts/ Labor (10) Years), which starts with the date of original purchase (“Limited Warranty period”), at its option either (a) repair your product with new or refurbished parts, or (b) replace it with a new or a refurbished product. - Page 14 AC-EX70-444-RNE _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ Page 13...
- Page 15 AC-EX70-444-RNE _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ Page 14...
- Page 16 AC-EX70-444-RNE Thank you for choosing AVProEdge! Please contact us with any questions, we are happily at your service! AVProEdge 2222 E 52nd St N ~ Sioux Falls, SD 57104 1-877-886-5112 ~ 605-274-6055 support@avproedge.com Page 15...
