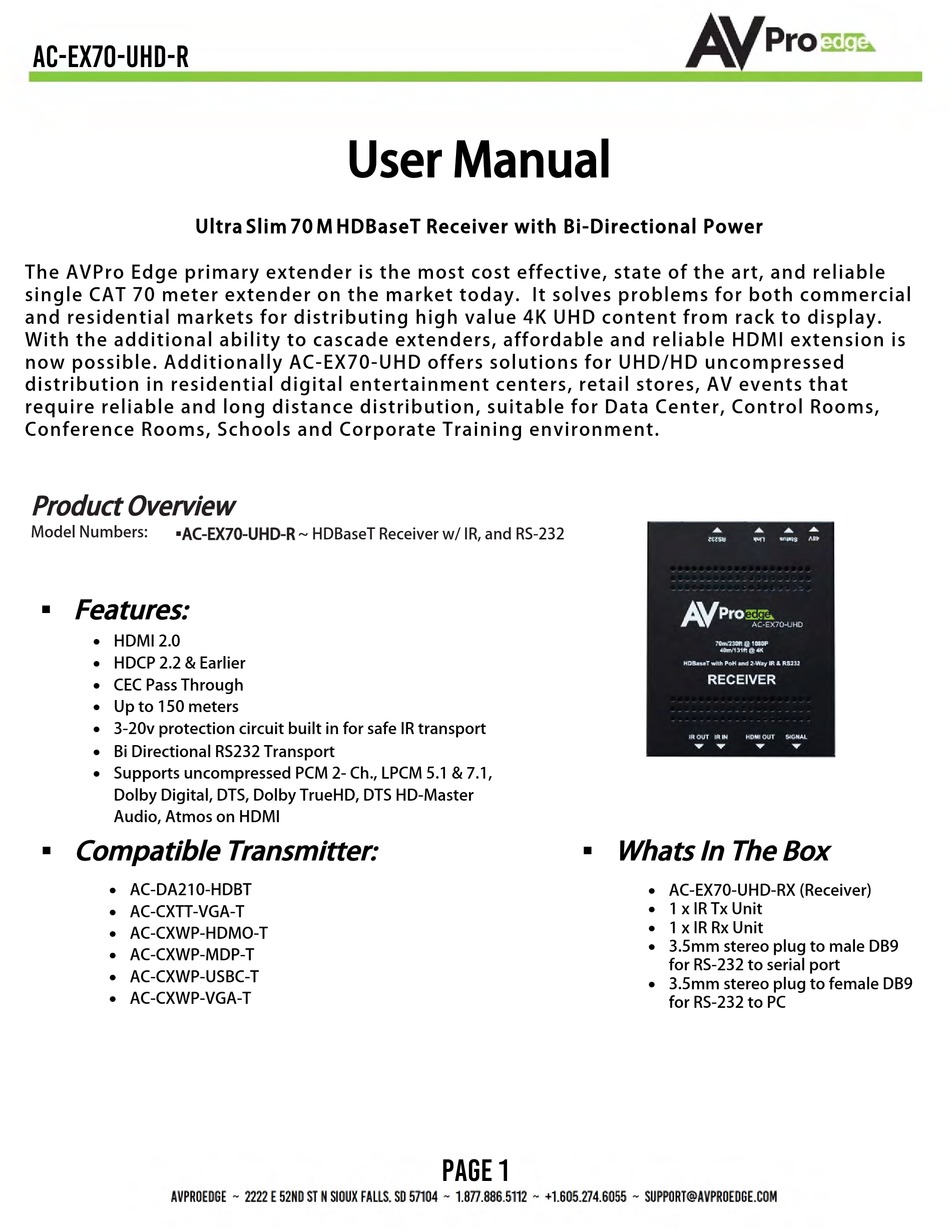

AVProEdge AC-EX70-UHD-R User Manual

AC-EX70-UHD-R
Ultra Slim 70 M HDBaseT Receiver with Bi-Directional Power
The AVPro Edge primary extender is the most cost effective, state of the art, and reliable
single CAT 70 meter extender on the market today. It solves problems for both commercial
and residential markets for distributing high value 4K UHD content from rack to display.
With the additional ability to cascade extenders, affordable and reliable HDMI extension is
now possible. Additionally AC-EX70-UHD offers solutions for UHD/HD uncompressed
distribution in residential digital entertainment centers, retail stores, AV events that
require reliable and long distance distribution, suitable for Data Center, Control Rooms,
Conference Rooms, Schools and Corporate Training environment.

Product Overview

Model Numbers:
AC-EX70-UHD-R ~ HDBaseT Receiver w/ IR, and RS-232
 Features:
• HDMI 2.0
• HDCP 2.2 & Earlier
• CEC Pass Through
• Up to 150 meters
• 3-20v protection circuit built in for safe IR transport
• Bi Directional RS232 Transport
• Supports uncompressed PCM 2- Ch., LPCM 5.1 & 7.1,
Dolby Digital, DTS, Dolby TrueHD, DTS HD-Master
Audio, Atmos on HDMI
 Compatible Transmitter:
• AC-DA210-HDBT
• AC-CXTT-VGA-T
• AC-CXWP-HDMO-T
• AC-CXWP-MDP-T
• AC-CXWP-USBC-T
• AC-CXWP-VGA-T

User Manual

Page 1
 Whats In The Box
• AC-EX70-UHD-RX (Receiver)
• 1 x IR Tx Unit
• 1 x IR Rx Unit
• 3.5mm stereo plug to male DB9
for RS-232 to serial port
• 3.5mm stereo plug to female DB9
for RS-232 to PC
