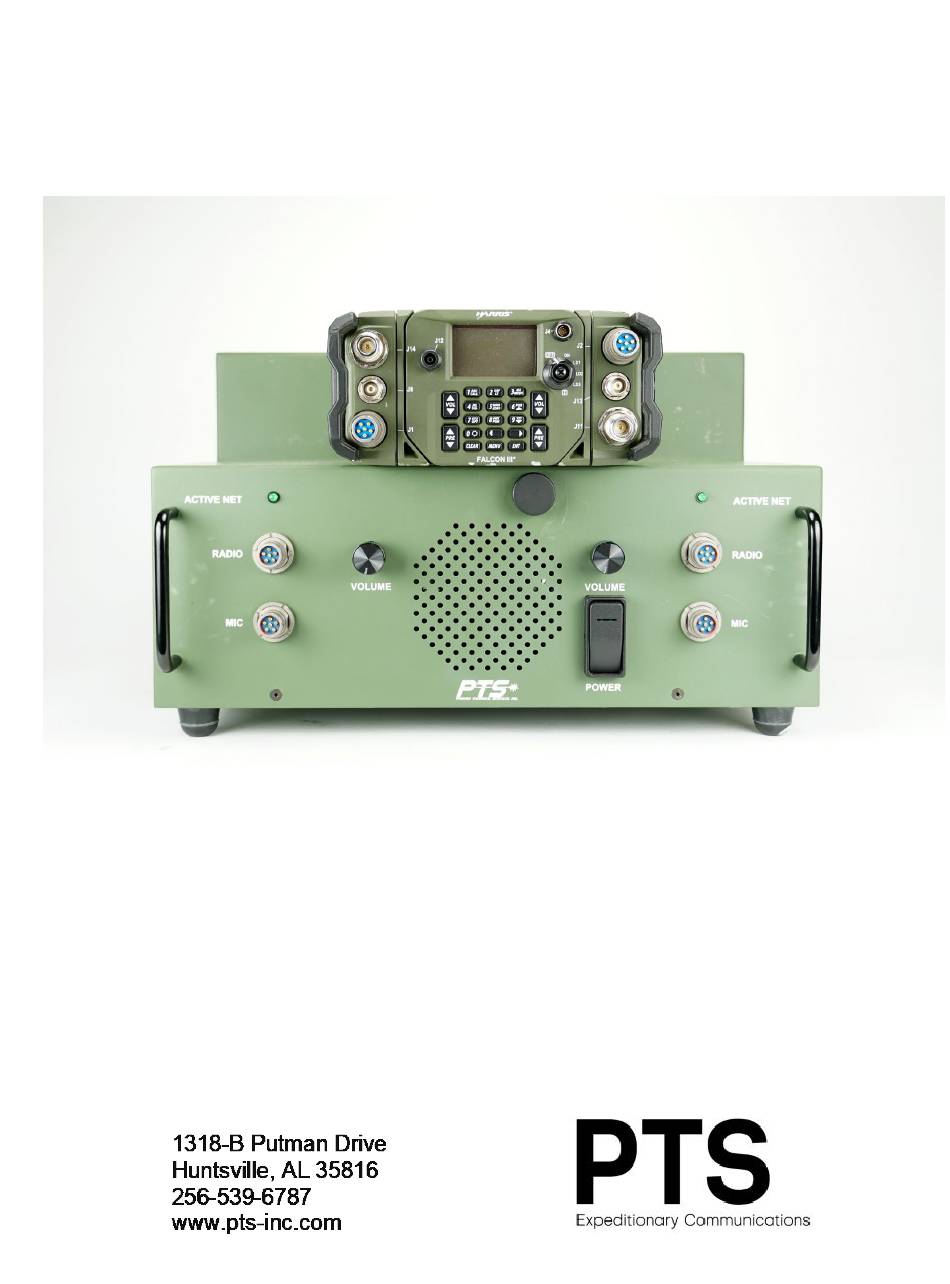

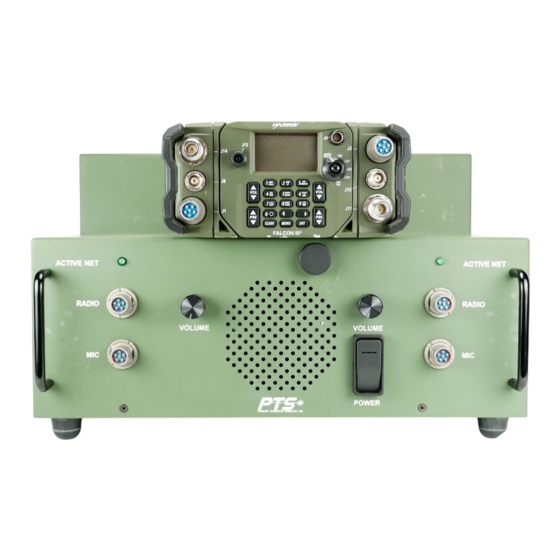

- Page 1 PTS, Inc. Harris 158 Single AC/DC Power Supply Docking Station (PSDS) Manual MODEL #: AS0158-HR-158 (Note: Radio in Picture Not Included) Includes 2 PTS-H-0003J Cable Compatible with 1 AN/PRC-158 Document PTS-HR-158-2018-11-5 Perkins Technical Services, Inc. (PTS)
-
Page 2: Safety Instructions
To reduce the risk of electrical shock or fire, DO NOT disassemble the PSDS. Repairs or adjustments to the PSDS must be performed by a qualified technician of PTS. DO NOT work on electrical equipment alone. Be sure another person qualified to administer first aid is present. -
Page 3: Table Of Contents
Document PTS-HR-158-2018-11-5 Table of Contents Safety Instructions Power Supply Docking Station (PSDS) Description Specifications Features Physical Dimensions Operational Benefits User Educational Requirements Operation of PSDS with Harris Radios Basic PSDS Set-Up Antenna & Handset Installation, Radio Configuration PSDS Operation PSDS Operational Inputs and Accessories... -
Page 4: Power Supply Docking Station (Psds) Description
Document PTS-HR-158-2018-11-5 Power Supply Docking Station (PSDS) Description Perkins Technical Services, Inc. has developed a rugged, lightweight, user-friendly Power Supply Docking Station (PSDS) for tactical radios. The PSDS provides the capability to operate an AN/PRC-158 radio in a continuous and efficient safe manner. -
Page 5: Specifications
Document PTS-HR-158-2018-11-5 Specifications Features Docking positions for 1 AN/PRC-158 Worldwide frequency input 47 to 440 Hz Worldwide AC voltage input 85 to 260 VAC DC voltage input 22 to 32 VDC Fully automatic voltage and frequency selection worldwide, no manual change required... -
Page 6: User Educational Requirements
Document PTS-HR-158-2018-11-5 User Educational Requirements Prior to use of the PSDS, the user should be a qualified Radio Operator. The user should have a thorough understanding of Harris operations and a basic understanding of the AN/PRC 158 set-up and configurations. - Page 7 Document PTS-HR-158-2018-11-5 The system is now ready to operate. There is an individual volume control for the radio network. Audio jumper cables are used for each side of the radio to transmit voice to the internal speaker (see picture below).
-
Page 8: Psds Operational Inputs And Accessories
13303). Any DC source 22-32 volts can be used to operate the system. There is one connector if the user chooses to use a standard radio battery (BT-5590). It will also operate using PTS Inc’s Expeditionary Power System with Batteries. PTS part # PUR.PWR.101. -
Page 9: Periodic Maintenance
When replacing the filters, wash the filters removed from the PSDS in warm soapy water, rinse thoroughly and allow to air dry. Filters should last indefinitely. The PTS recommended filter cleaning interval is 14 days of continual operation. -
Page 10: System Repair Or Return
PTS will determine if the PSDS needs to be returned for repair/replacement. If PTS determines the PSDS requires return for repair, PTS will assign a Return Material Authorization (RMA) number. The RMA number should be clearly posted on... -
Page 11: Warranty
PSDS by the user. PTS shall not be obligated to repair or replace a PSDS or transit case if they become damaged through unauthorized maintenance or repair, incorrect operational set-up, abuse or neglect.
