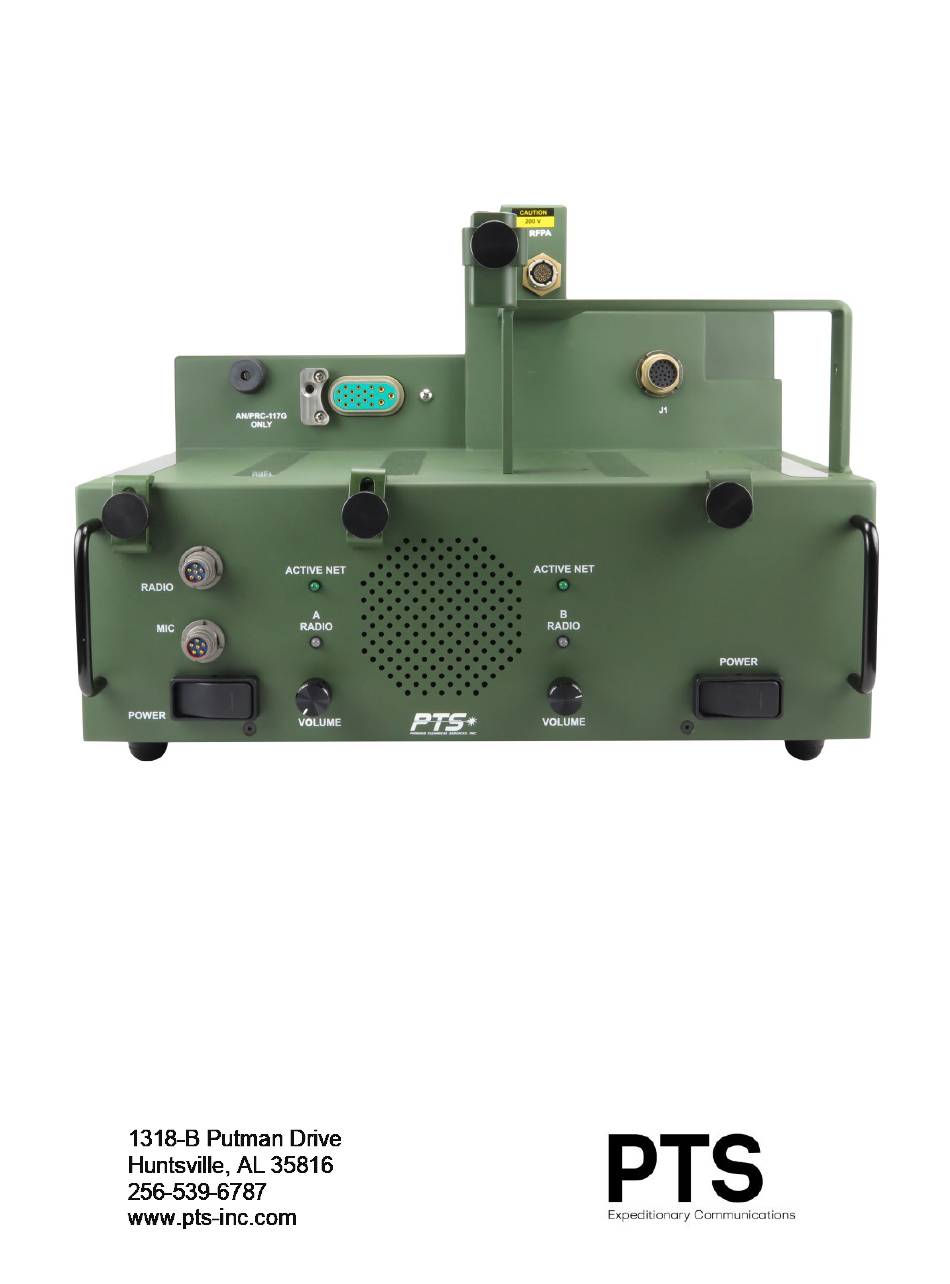

PTS, Inc.
Harris 117G/1523HP Power Supply Docking
Station (PSDS) Manual
MODEL #:
AS0117-HR-117G/1523HP
Includes 1 PTS-H-0004J Cable (CAB.AUD.002)
Includes Filter Pack and Power Cord
Compatible with one AN/PRC-117G/152*
*Unit requires vehicle amplifier for mounting on the Harris side.
Compatible with 1 RT-1523 (E/G) (ASIP) and 1 AM-7238B RFPA
Document PTS-HR-117G/1523HP-2021-2-9
Perkins Technical Services, Inc.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AS0117-HR-117G/1523HP and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Pts AS0117-HR-117G/1523HP

Summary of Contents for Pts AS0117-HR-117G/1523HP

  • Page 1 Harris 117G/1523HP Power Supply Docking Station (PSDS) Manual MODEL #: AS0117-HR-117G/1523HP Includes 1 PTS-H-0004J Cable (CAB.AUD.002) Includes Filter Pack and Power Cord Compatible with one AN/PRC-117G/152* *Unit requires vehicle amplifier for mounting on the Harris side. Compatible with 1 RT-1523 (E/G) (ASIP) and 1 AM-7238B RFPA Document PTS-HR-117G/1523HP-2021-2-9 Perkins Technical Services, Inc.

  • Page 2: Safety Instructions

    To reduce the risk of electrical shock or fire, DO NOT disassemble the PSDS. Repairs or adjustments to the PSDS must be performed by a qualified technician of PTS. DO NOT work on electrical equipment alone. Be sure another person qualified to administer first aid is present.

  • Page 3: Table Of Contents

    Document PTS-HR-117G/1523HP-2021-2-9 Table of Contents Safety Instructions Power Supply Docking Station (PSDS) Description Specifications Features Physical Dimensions Operational Benefits User Educational Requirements Operation of PSDS with Harris Radio (Left Side) Basic PSDS Set-Up Amplifier/ Radio Assembly Installation Antenna & Handset Installation, Radio Configuration...

  • Page 4: Power Supply Docking Station (Psds) Description

    Document PTS-HR-117G/1523HP-2021-2-9 Power Supply Docking Station (PSDS) Description Perkins Technical Services, Inc. (PTS) has developed a rugged, lightweight, user- friendly power supply docking station (PSDS) for tactical radios. The PSDS provides the capability of converting 85 to 260 VAC power (47-440Hz) to DC power to operate all SINCGARS series RT-1523 (E-G) radios, the AM 7238B/VRC RFPA and to operate an AN/PRC-117G radio in a continuous and efficient safe manner.

  • Page 5: Physical Dimensions

    Document PTS-HR-117G/1523HP-2021-2-9 Physical Dimensions (d) 23.75” x (h) 13.75” x (w) 17.5” (d) 60.325cm x (h) 34.925cm x (w) 44.45cm PSDS Weight: 21lbs, 9.53kg PSDS in Case: 58lbs, 26.31kg PSDS in Case: 33”x24”x19” Operational Benefits Enhanced command and control Increased flexibility...
  • Page 6 The system is now ready to operate. There is a volume control for the radio network. The PTS-H-0004J audio jumper must be attached to the front of the PSDS to the connector labeled “Radio” and to the connector on the radio labeled “Mic”. The volume on the AN/PRC-117G must be on at least mid-range for the volume on the HR-117G- 1523HP to work.

  • Page 7: Operation Of Psds With Sincgars Radio (Right Side)

    Document PTS-HR-117G/1523HP-2021-2-9 Operation of PSDS with SINCGARS Radio (Right Side) SAFETY NOTICE: Power down the radios and ensure the PSDS power switch is in the off position before installing or connecting radios. Failure to do so may result in electrical shock.
  • Page 8 Document PTS-HR-117G/1523HP-2021-2-9 Once the radio has completed self-test, the user may program the one SINCGARS radio for frequency, COMSEC configuration, power mode, etc. per the SINCGARS operations manual. Under normal conditions each radio would operate using an individual frequency providing the user with 2 individual radio networks (NET).

  • Page 9: Psds Operational Inputs And Accessories

    When replacing the filters, wash the filters removed from the PSDS in warm soapy water, rinse thoroughly and allow to air dry. Filters should last indefinitely. The PTS recommended filter cleaning interval is 14 days of continual operation.

  • Page 10: Exterior Cleaning

    PTS will determine if the PSDS needs to be returned for repair/replacement. If PTS determines the PSDS requires return for repair, PTS will assign a Return Material Authorization (RMA) number. The RMA number should be clearly posted on...

  • Page 11: Warranty

    PSDS by the user. PTS shall not be obligated to repair or replace a PSDS or transit case if they become damaged through unauthorized maintenance or repair, incorrect operational set-up, abuse or neglect.
