Harris HR-5833/1523 Power Supply Docking
Station (PSDS) Manual
MODEL #: AS0150-HR-5833/1523
Includes 1 PTS-H-0003J Cable (CAB.AUD.001)
Includes 1 5833 DC Power Cable (CAP.DPW.001)
Includes Filter Pack
Compatible with 1 RF-5833H PA
Compatible with 1 AN/PRC-150
Compatible with 1 RT-1523 (E/G) (ASIP) and 1 AM-7238B RFPA
Document PTS-HR-5833/1523-2018-12-13
Perkins Technical Services, Inc.
Advertisement
Table of Contents
Related Manuals for Pts Harris HR-5833/1523
Summary of Contents for Pts Harris HR-5833/1523

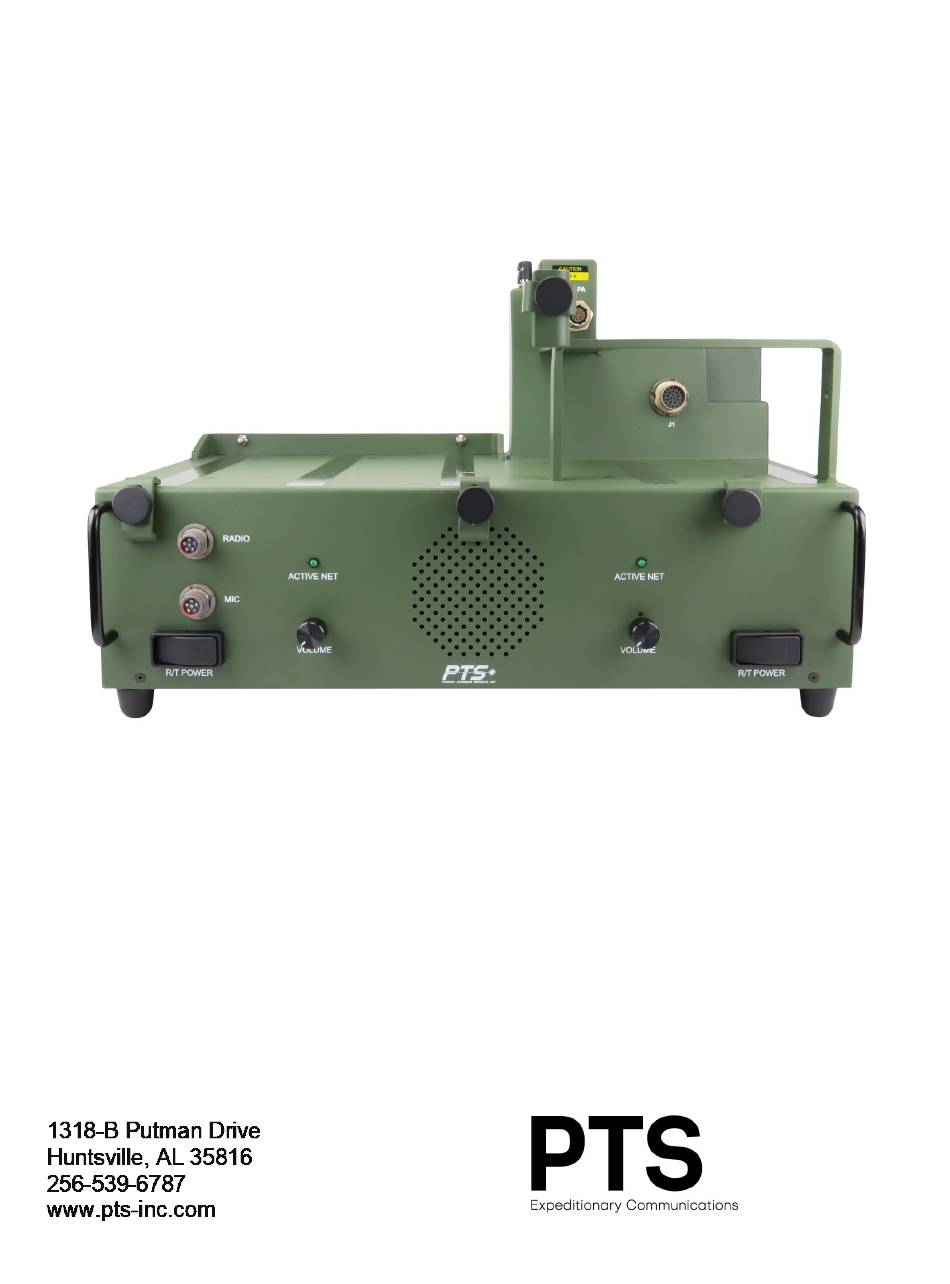

- Page 1 PTS, Inc. Harris HR-5833/1523 Power Supply Docking Station (PSDS) Manual MODEL #: AS0150-HR-5833/1523 Includes 1 PTS-H-0003J Cable (CAB.AUD.001) Includes 1 5833 DC Power Cable (CAP.DPW.001) Includes Filter Pack Compatible with 1 RF-5833H PA Compatible with 1 AN/PRC-150 Compatible with 1 RT-1523 (E/G) (ASIP) and 1 AM-7238B RFPA Document PTS-HR-5833/1523-2018-12-13 Perkins Technical Services, Inc.
-
Page 2: Safety Instructions
To reduce the risk of electrical shock or fire, DO NOT disassemble the PSDS. Repairs or adjustments to the PSDS must be performed by a qualified technician of PTS. DO NOT work on electrical equipment alone. Be sure another person qualified to administer first aid is present. -
Page 3: Table Of Contents
Document PTS-HR-5833/1523-2018-12-13 Table of Contents Safety Instructions Power Supply Docking Station (PSDS) Description Specifications Features Physical Dimensions Operational Benefits User Educational Requirements Operation of PSDS with Harris Radios (Left Side) Basic PSDS Set-Up Amplifier / Radio Assembly Installation Antenna & Handset Installation, Radio Configuration... -
Page 4: Power Supply Docking Station (Psds) Description
Document PTS-HR-5833/1523-2018-12-13 Power Supply Docking Station (PSDS) Description Perkins Technical Services, Inc. (PTS) has developed a rugged, lightweight, user- friendly power supply docking station (PSDS) for tactical radios. The PSDS provides the capability of converting 85 to 260 VAC power (47-440Hz) to DC power to operate all SINCGARS series RT-1523 (E-G) radios, the AM 7238B/VRC RFPA and to operate an AN/PRC-150 radio mounted to a RF-5833H in a continuous and efficient safe manner. -
Page 5: Specifications
Document PTS-HR-5833/1523-2018-12-13 Specifications Features Docking positions for 1 SINCGARS RT-1523 (E/F) Docking position for 1 AM-7238B RFPA Docking positions for 1 AN/PRC-150 Docking position for 1 RF-5833H TOCNET/ radio control for SINCGARS Worldwide frequency input 47 to 440 Hz Worldwide AC voltage input 85 to 260 VAC... -
Page 6: Operation Of Psds With Harris Radios (Left Side)
Lock the amplifier in place by turning the knurled thumbscrews clockwise to seat the amplifier. Attach the PTS-H-0003J Audio Jumper to Audio on the AN/PRC 150 and to Radio on the PSDS. The Handset is attached to the MIC on the PSDS as shown on the photo below. -
Page 7: Antenna & Handset Installation, Radio Configuration
Antenna & Handset Installation, Radio Configuration To ensure proper operation an HF antenna (not the manpack antenna) must be connected to the amp or you will experience excessive noise. (PTS PUR.ANT.104 HF Antenna with PTS PUR.ANT.103 7m Antenna Mast works well with this system.) Connect the antenna connector to the installed amplifier. - Page 8 The system is now ready to operate. There is a volume control for the radio network. The PTS-H-0003J audio jumper must be attached as seen earlier. The volume on the AN/PRC-150 must be on at least mid-range for the volume on the HR-5833/1523 to work.
-
Page 9: Operation Of Psds With Sincgars Radios (Right Side)
Document PTS-HR-5833/1523-2018-12-13 Operation of PSDS with SINCGARS Radios (Right Side) SAFETY NOTICE: Power down the radios and ensure the PSDS power switch is in the off position before installing or connecting radios. Failure to do so may result in electrical shock. -
Page 10: Psds Operation
Document PTS-HR-5833/1523-2018-12-13 The PSDS has 2 sides; right and left. Never connect a right-side radio to a left- side RFPA or accessory. Doing this will damage the radio and the PSDS. This type of damage is not covered under the PSDS warranty. -
Page 11: Psds Operational Inputs And Accessories
When replacing the filters, wash the filters removed from the PSDS in warm soapy water, rinse thoroughly and allow to air dry. Filters should last indefinitely. The PTS recommended filter cleaning interval is 14 days of continual operation. -
Page 12: Exterior Cleaning
PTS will determine if the PSDS needs to be returned for repair/replacement. If PTS determines the PSDS requires return for repair, PTS will assign a Return Material Authorization (RMA) number. The RMA number should be clearly posted on... -
Page 13: Warranty
PSDS by the user. PTS shall not be obligated to repair or replace a PSDS or transit case if they become damaged through unauthorized maintenance or repair, incorrect operational set-up, abuse or neglect.
