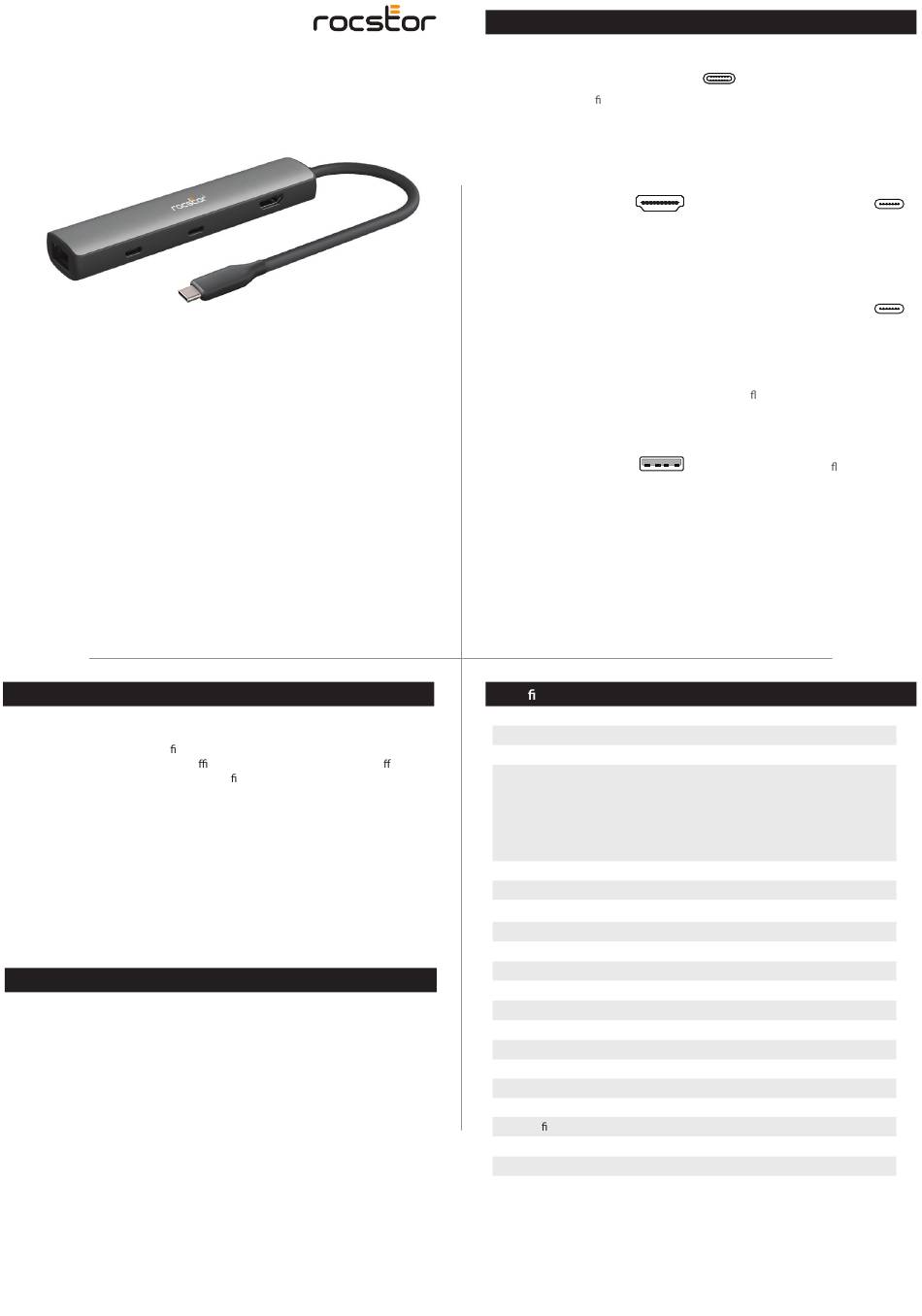

Rocstor Y10A316-S1 User Manual

User Manual
USB4 to HDMI(8K/60Hz)/USB-AX2 （ 10G） /
Type-C Data （10G） /RJ45/Type-C PD Charging Adapter
Congratulations
Thank you for purchasing this premium Rocstor product. For optimum performance and
safety, please read these instructions carefully before connecting, operating or using this
product. Please keep this manual for future reference.
Introduction

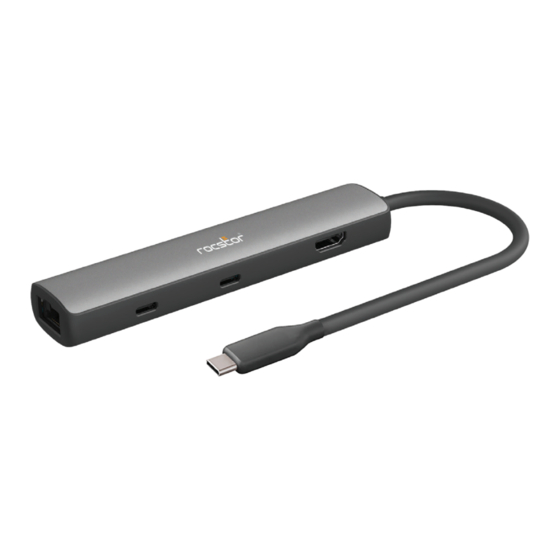

Rocstor introduces the 6-in-1 USB4 adapter, providing a comprehensive solution for
video, data, power, and Ethernet needs. This adapter features an HDMI port
(supporting 8K/60Hz) for high-de nition video transmission, along with 3 USB data
ports (2 USB-A 10G, 1 Type-C 10G) for e cient data transfer. Additionally, it o ers a
2.5Gbps Ethernet port for seamless online sur ng. Furthermore, equipped with a
Type-C PD Charging port capable of delivering up to 100W power supply. Compatible
with USB4, Thunderbolt4, Thunderbolt3, and DP Alt mode supported Type-C hosts,
ensuring versatile compatibility across various systems.
Package Contents
Before attempting to use this unit, please check the packaging and make sure the
following items are contained in it:
• Main Unit x1
• User Manual
Y10A316-S1
®
Features
Upstream:
USB4 Male (Connect to a host computer)
• Supports USB4 Speci cation with max 40Gbps bandwidth
• Compliant USB4 Gen3(40Gbps),USB4 Gen2(20Gbps) and backwards compatible
USB3.2&USB2.0
• Compliant DP1.4 alt mode with max 32.4Gbps
• Supports positive and negative connection
Downstream:
HDMI X1
• Supports max 8k/60Hz video output
• Supports High Dynamic Range(HDR10+)
• Supports multiple color formats:
RGB; YCbCr4:4:4; YCbCr4:2:2;YCbCr4:2:0;
• Supports 8/10/12 bit Color depth
• Supports HDCP2.3 and HDCP1.4R
Host Video Resolution
Support USB4&DSC8K/60Hz
Only support DP1.4 Alt mode （ Not support DSC） 4K/60Hz
Only support DP1.2 Alt mode （ Not support DSC） 4K/30Hz
Note: The above list is only for reference.
The actual output resolution is
determined by the computer, monitor
and the product
USB-A 10G X2
• Supports USB 3.2 Gen2 SuperSpeed
10Gbps per port
• One port(close to RJ45) supports max
5V/1.5A downstream charging， other ports
support max 900mA downstream charging
• Supports short-circuit, over-current,
over-voltage protection
• USB-C and 2 USB-A ports share max
2.4A(12W) downstream charging
Speci cation
Input / Output Connector
Input
Output
Mechanical
Operating Temperature Weight
Size
Warranty
Limited Warranty
Environmental
Operating Temperature Operating Temperature
Operating Humidity
Storage Temperature
Storage Humidity
Power
Type-C PD Charging
Regulatory Approvals
Certi cations
Accessory Adapter
User Manual
USB-C 10G X1
• Supports USB 3.2 Gen2 SuperSpeed 10Gbps
• Supports max 5V/1.5A downstream charging
• Supports short-circuit, over-current,
over-voltage protection
RJ45 X1
• Supports 10M/100M/1000M/2.5G bandwidth
• Supports twisted pair crossover
detection and auto-correction
• Supports WOL(Wake-On-LAN), Full
Duplex ow(10M/100M/1G/2.5G Rate),
Auto-Negotiation
• Light indicates the state, no light when
no Internet connected, orange light
turns on when network connection is
established, green light ashes when
transmitting data.
USB-C Male x1
HDMI (8K/60Hz) x1
USB-C Gen 2 10G x1
USB-A Gen 2 10G x2
RJ45 (2.5G Ethernet) x1
Type-C PD Charging x1
3.2lbs - (92.4g) 0°C to 45°C (32°F to 113°F)
6x1.2x0.7in - (142x30.5x18mm)
3 Years
0°C to 45°C (32°F to 113°F)
10% to 85% RH (no condensation)
-10°C to 70°C (14°F to 158°F)
5% to 90 % RH (no condensation)
100W (max 85W for host)
FCC, CE
