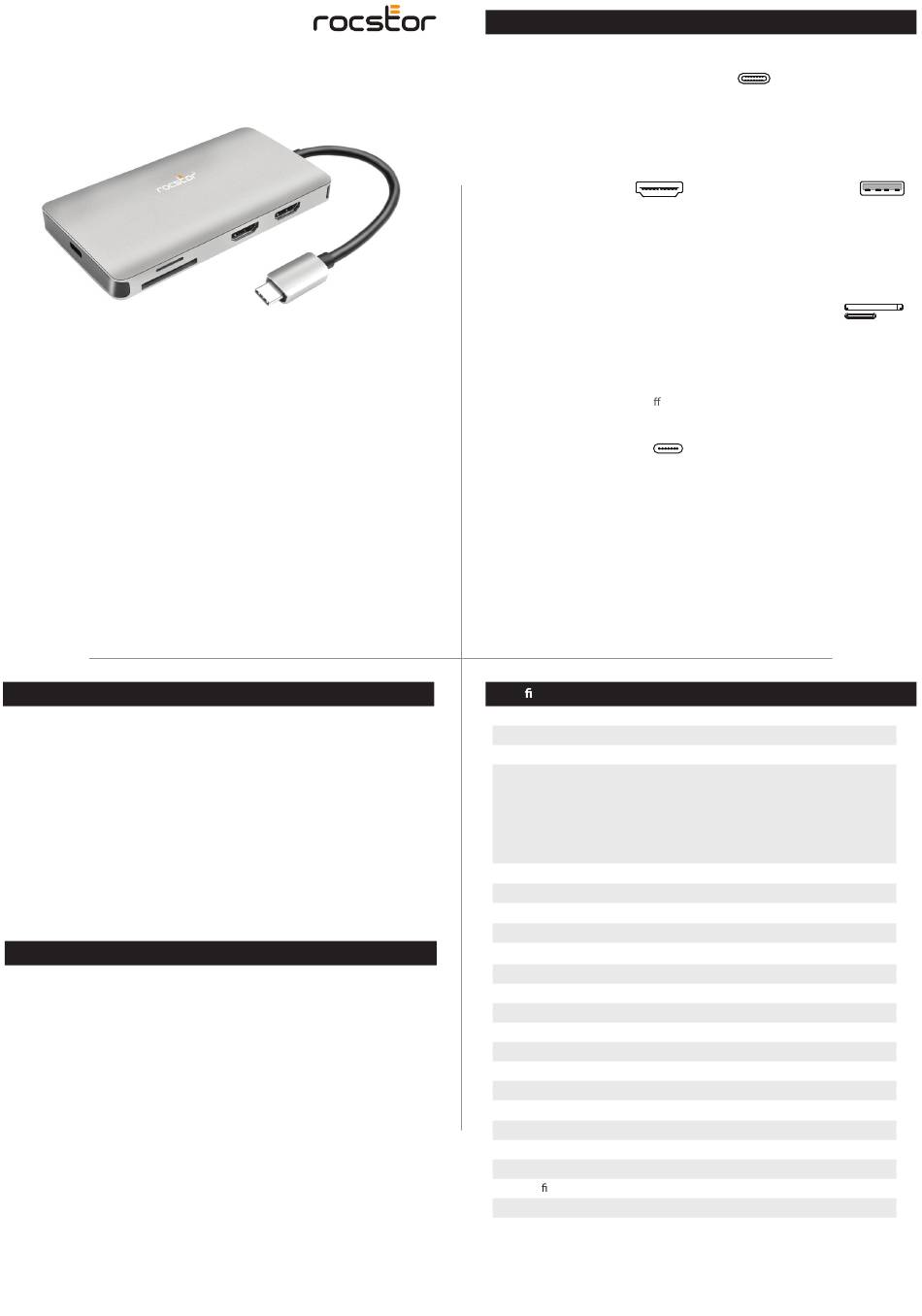

Rocstor Y10A302-S1 User Manual

USB Type-C® to HDMI®X2/USB-A®X3/SD®/Micro SD®/Type-C
PD Charging with DP1.4 Alt mode
Congratulations
Thank you for purchasing this premium Rocstor product. For optimum performance and
safety, please read these instructions carefully before connecting, operating or using this
product. Please keep this manual for future reference.
Introduction

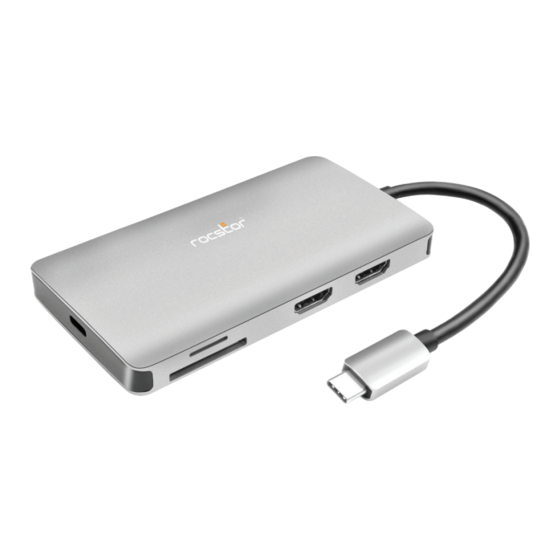

Rocstor introduces a Type-C 8-in-1 hub equipped with 2 HDMI ports, 3 USB-A ports,
SD/TF card slots, and a Type-C female port, presenting an optimal solution for
expanding the connectivity options of Type-C or Thunderbolt 3 hosts such as PCs,
laptops, and mobile phones, particularly beneficial for devices featuring a single
Type-C port. This hub integrates the latest DP1.4 Alt mode supported IC, allowing
HDMI video output at a maximum resolution of 8k/30Hz or dual 4k/30Hz while
simultaneously transferring USB 3.1 data at up to 5Gbps. With 3 USB-A ports, you
can connect 3 USB devices concurrently. Additionally, the SD/Micro SD card slots
enable simultaneous insertion of 2 cards for data transmission or accessing
information on the host. Furthermore, the Type-C female port supports PD 3.0
with a maximum power delivery of 100W for PD Charging. Compatible with all DP
Alt mode supported Type-C hosts, this hub ensures seamless compatibility and
enhanced functionality.
Package Contents
Before attempting to use this unit, please check the packaging and make sure
the following items are contained in the packaging:
• Main Unit x1
• User Manual
User Manual
Y10A302-S1
®
Features
Upstream:
USB Type-C Male (Connect to a host computer)
• Supports DP1.4 Alt mode
• Supports DSC
Note: To get max bandwidth, the host should support DP1.4 Alt mode with DSC format.
Downstream:
HDMI X2
• The HDMI port close to SD card slot
supports max 8K/30Hz， another one
supports max 4K/60Hz.
• Supports Dual 4K/30Hz under MST mode
• Supports Dual 4K/60Hz under SST mode
• Supports 6/8/10/12 bit color depth output
• Supports output pixel format
RGB4:4:4/YCbCr4:4:4/YCbCr4:2:2
• Supports HDCP 2.2&HDCP1.4
Note: The actual resolution supported is
determined by the host and the Display.
The product worked on some windows
hosts that support DP1.4&DSC can output
4K/60Hz*2 simultaneously with di erent
pictures.
Type-C Female X1
(for PD Charging)
• Supports PD Charging 100W (20V/5A)
• Supports Fast Role Swap of PD 3.0, the
connected device will not get
disconnected while plugging in and out
PD Adapter
• 15W is dedicated to the functioning of
this product, the rest power (max 85W)
will be passed to charge for the host
Speci cation
Input / Output Connector
Input
Output
Mechanical
Size (L-W-H)
Weight (Net)
Warranty
Limited Warranty
Environmental
Operating Temperature
Operating Humidity
Storage Temperature
Storage Humidity
Electronic Parameter
Input Voltage
Power Consumption
Power Supply
USB-C PD Charging Port
Regulatory Approvals
Certi cations
Accessory Adapter
User Manual
USB-A 3.0 X3
• 1 USB-A port supports max
7.5W(5V/1.5A) downstream charging, 3
USB-A share max 12W (5V/2.4A)
downstream charging.
• Max 5Gbps bandwidth per USB-A port
SD/Micro SD
• Supports Secure Digital v3.0 UHS-I (Ultra
High Speed) ： SDR12 (12.5Mbyte/s)/
SDR25(25Mbyte/s)/SDR50(50Mbyte/s)/
DDR50(50Mbyte/s)/SDR104(104Mbyte/s)
• Allow 2 card slots to work simultaneously
Type-C Male x1
HDMI Female x2
USB-A Female x3
SD Card Slot x1
Micro SD Card Slot x1
Type-C Female x1 (for PD Charging)
4.3x2.3x0.45in (110x59x11.5mm)
0.24lbs (113g)
3 Years
0°C to 45°C (32°F to 113°F)
10% to 90 % RH (no condensation)
-10°C to 70°C (14°F to 158°F)
10% to 90 % RH (no condensation)
5V
Max 2W
100W(20V/5A)
FCC, CE
