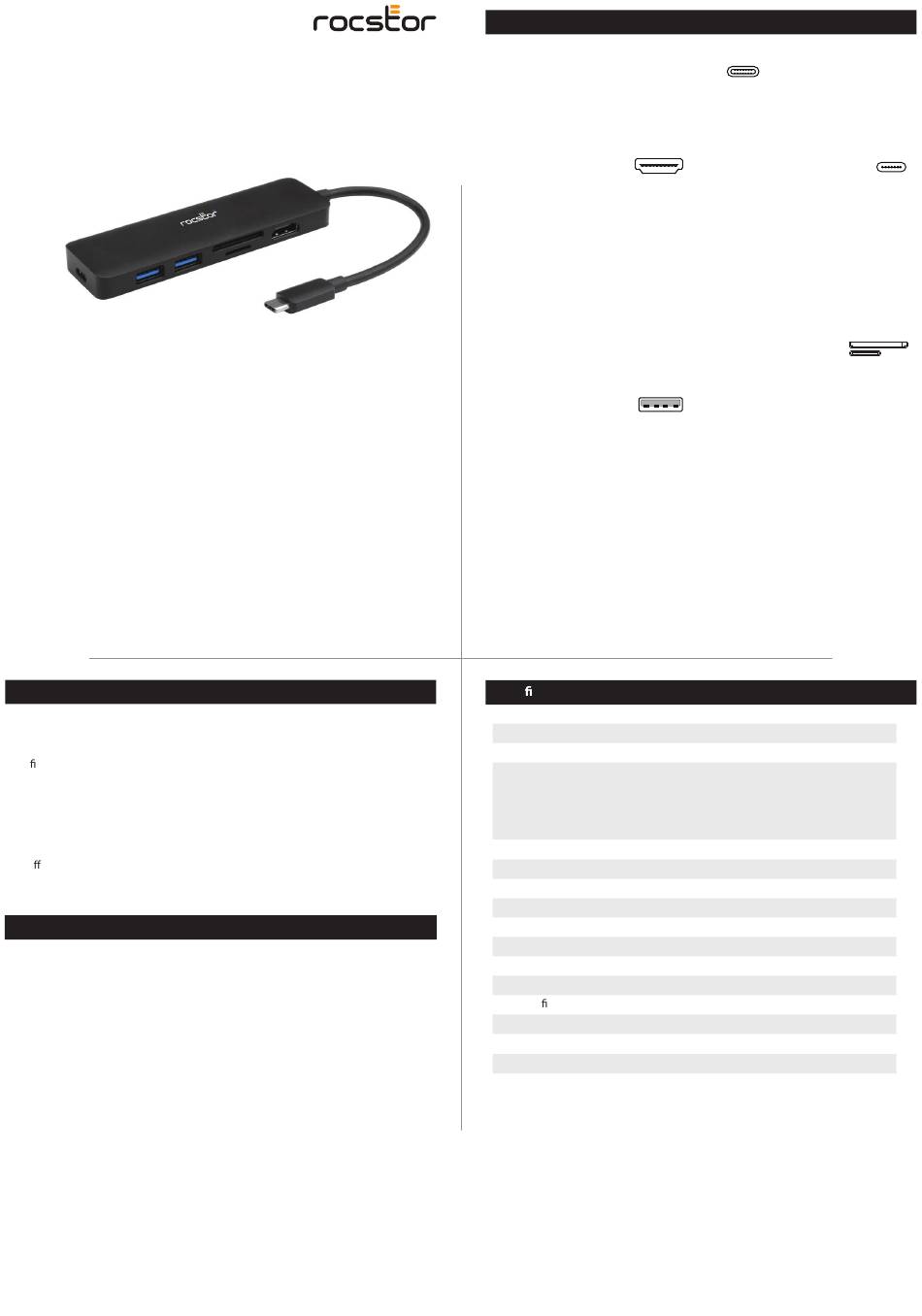

Rocstor Y10A309-B1 User Manual

Type-C to HDMI/USB-Ax2/SD/Micro SD/Type-C
PD Charging with DP1.4 Alt mode
Congratulations
Thank you for purchasing this premium Rocstor product. For optimum performance and
safety, please read these instructions carefully before connecting, operating or using this
product. Please keep this manual for future reference.
Introduction

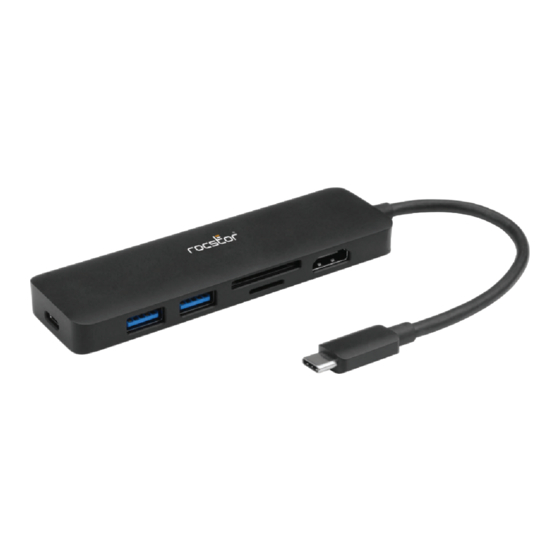

Rocstor introducing a versatile Type-C 6-in-1 hub featuring HDMI, 2 USB-A ports, SD/TF
card slots, and a Type-C female port. Perfect for expanding the connectivity options of
Type-C or Thunderbolt hosts such as PCs, laptops, and mobile phones, particularly
bene cial for devices with only one Type-C port. Equipped with cutting-edge DP1.4 Alt
mode supported IC, it delivers HDMI video output at a maximum resolution of 4k/60Hz
while simultaneously transferring USB 3.0 data at up to 5Gbps. The hub also boasts 2
USB-A ports for dual device connection, along with SD/Micro SD slots enabling
simultaneous insertion of two cards for data transfer or information exchange with the
host. Additionally, the Type-C female port supports PD 3.0 Charging with a maximum
power delivery of 100W. Compatible with all DP Alt mode supported Type-C hosts, this
hub o ers unparalleled versatility and convenience.
Package Contents
Before attempting to use this unit, please check the packaging and make sure the
following items are contained in it:
• Main Unit x1
• User Manual
User Manual
Y10A309-B1
®
Features
Upstream:
USB Type-C Male (Connect to host computer)
• Support DP1.4 Alt mode, downward compatible with DP1.2 Alt mode
Downstream:
HDMI
• Support HDMI max 4K/60Hz
Support 6/8/10/12 bit color depth
output
• Support output pixel format
RGB/YCbCr4:4:4/YCbCr4:2:2/YCbCr4:2:0
• Support HDCP 2.3/2.2&HDCP1.4
• Support HDR
Note: When connecting a DP1.4 Alt mode
supported host, the max resolution of
HDMI is 4k/60Hz; When connecting a
DP1.2 Alt mode supported host, the max
resolution of HDMI is 4k/30Hz due to
bandwidth limitation
USB-A X2
• 1 USB-A port (close to Type-C female)
supports max 7.5W(5V@1.5A), another
USB-A supports max 900mA downstream
charging. And 2 USB-A share max 12W
(5V/2.4A) downstream charging.
• Max 5Gbps bandwidth per USB-A port
• Support short-circuit, over-current
protection
Support Fast Role Swap of PD 3.0, the connected device will not get disconnected
while plugging out PD Adapter
Speci cation
Input / Output Connector
Input
Output
Warranty
Limited Warranty
Environmental
Operating Temperature
Operating Humidity
Storage Temperature
Storage Humidity
Regulatory Approvals
Certi cations
Power Supply
USB-C PD Charging Port
Accessories
User Manual
Type-C (for PD Charging)
• Support PD Charging with max 100W
(20V/5A), 15W is dedicated to the
functioning of this product, the rest
power (max 85W) will be passed to
charge for the host
• Support Fast Role Swap of PD 3.0, the
connected device will not get
disconnected while plugging out PD
Adapter
SD/Micro SD 3.0
• Support Secure Digital v3.0 UHS-I (Ultra
High Speed) ： SDR12 (12.5Mbyte/s)/
DR25(25Mbyte/s)/SDR50(50Mbyte/s)/
DR50(50Mbyte/s)/SDR104(104Mbyte/s)
• Allow SD/Micro SD to work
simultaneously
Type-C Male x1
HDMI Female x1(4K60Hz)
USB-A Female x2 (5G)
SD/Micro SDx1(104MBps)
Type-C Femalex1 （ PD 100W)
3 Years
0°C to + 45°C
10% to 90 % RH (no condensation)
-10°C to + 70°C
10% to 90 % RH (no condensation)
FCC, CE
100W(20V/5A)
English Version
