The PowerEdge R7515 is a 2U rack server that supports:
● One AMD EPYC 7002 series processor
● One AMD EPYC 7003 series processor
● 16 DIMM slots
● Two redundant power supply units
● Up to 8 x 3.5-inch, 12 x 3.5-inch, 12 x 3.5-inch + 2 x 3.5-inch (rear), or 24 x 2.5-inch SAS/SATA or NVMe drives (up to 12 x
2.5-inch SAS/SATA + 12 x 2.5-inch SAS/SATA/ NVMe drives), 8 x 2.5-inch (SAS/SATA/ NVMe ) + 16 NVMe drives or 24 x
2.5-inch NVMe drive.
NOTE:
For more information about how to hot swap NVMe PCIe SSD U.2 device, see the Dell Express Flash NVMe PCIe
SSD User's Guide at https://www.dell.com/support> Browse all Products > Data Center Infrastructure > Storage
Adapters & Controllers > Dell PowerEdge Express Flash NVMe PCIe SSD > Documentation > Manuals and
Documents.
NOTE:
All instances of SAS and SATA drives are seen as drives in this document, unless specified otherwise.
WARNING:
Consumer-Grade GPU should not be installed or used in the Enterprise Server products.
For more information, see the Dell EMC PowerEdge R7515 Technical Specifications on the product documentation page.
Topics:
•
Front view of the system
•
Rear view of the system
•
Inside the system
•
Locating the Express Service Code and Service Tag
•
System Information label
•
Rail sizing and rack compatibility matrix
Front view of the system

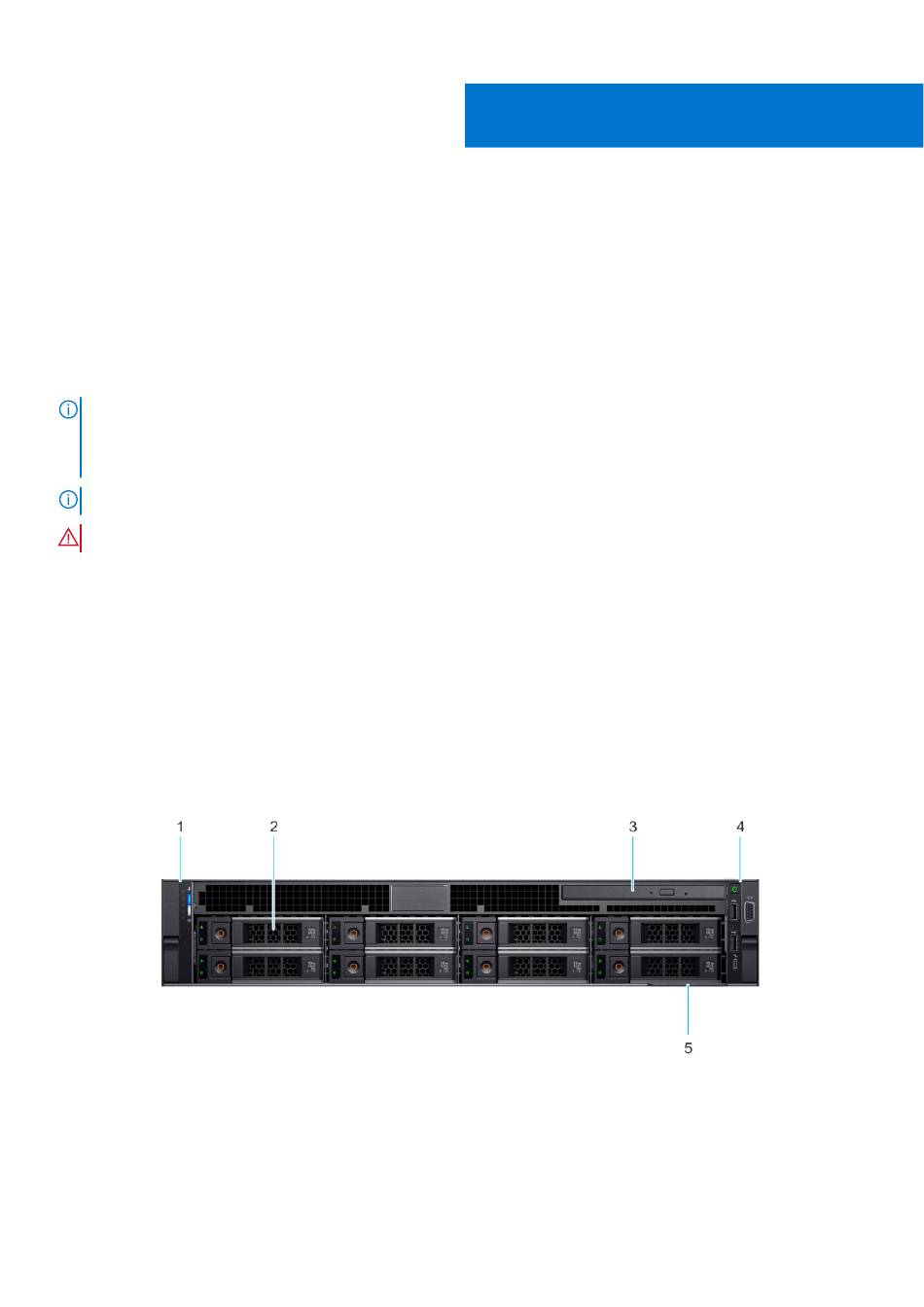

Figure 1. Front view of the 8 x 3.5-inch drive system
8
System overview
System overview
2
