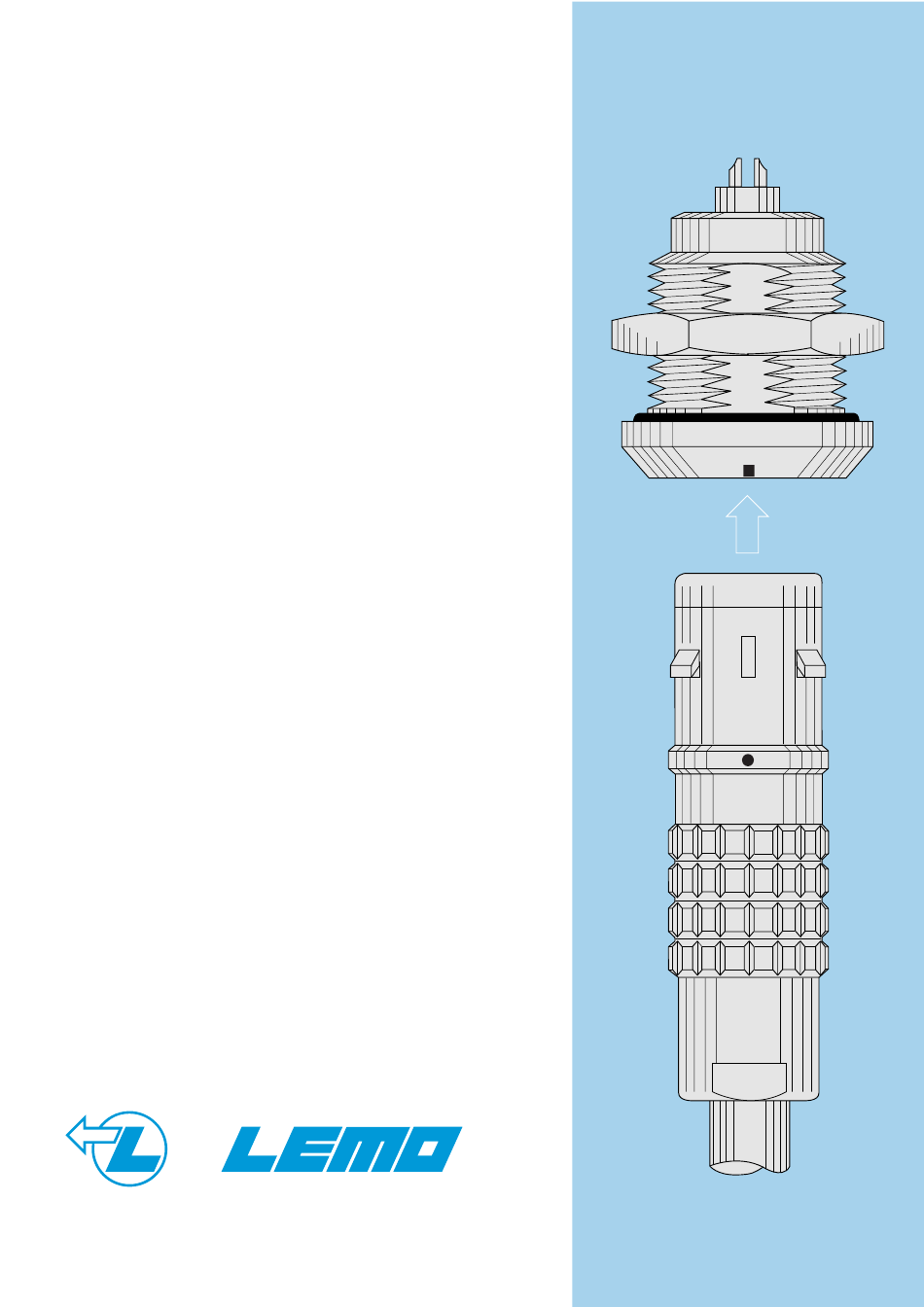

- Page 1 Cable Assembly Instructions K series Multipole ® ® © LEMO SA, March 2004...
- Page 2 ® ® This document describes cable assembly instructions of K Series multipole connectors. Specific instructions are to be followed for models with cable collet. straight plugs and sockets with cable collet, clamping type C (solder or crimp contacts) straight plug and socket with oversize cable collet, clamping type K (solder or crimp contacts) elbow plug (90°) with cable collet, clamping type C (solder or crimp contacts)
- Page 3 ® ® Cable stripping lengths straight plugs and sockets with cable collet, clamping type C (solder or crimp contacts) elbow plug (90°) with cable collet, clamping type C (solder or crimp contacts) Cable stripping lengths (mm) Connector Solder Crimp Solder Crimp Series Type...
- Page 4 ® ® Cable stripping lengths straight plug and socket with oversize cable collet, clamping type K (solder or crimp contacts) Cable stripping lengths (mm) Connector Solder Crimp Series Type 302/303 24.5 28.5 304/305 24.5 28.5 306/307/308 24.5 28.5 310/314/316 27.0 –...
- Page 5 ® ® Cable assembly of straight plugs and sockets with cable collet Type C cable clamping ● ● ● ● ● ● Type K cable clamping ● ● Cable stripping Strip the cable according to the dimensions indicated in the table on page 3 or 4.
- Page 6 ® ® Crimping of contacts 4.1 Connector with type C and K cable clamping Fix the appropriate positioner onto the crimping tool (table on page 8 and 9) and set the selector to the number corresponding to the AWG of the conductor used as indicated on the positioner label. Fit the conductor into the contact;...
- Page 7 ® ® Cable assembly of elbow plugs (90°) with cable collet ● Cable stripping Strip the cable according to the dimensions indicated in the table on page 3 or 4. For connector with solder contacts, the length L should be reduced by few millimeter for the conductors that are fitted to the contacts near the center.
- Page 8 ® ® Crimping of contacts Fix the appropriate positioner onto the crimping tool (table on page 8 and 9) and set the selector to the number corresponding to the AWG of the conductor used as indicated on the positioner label. Fit the conductor into the contact;...
- Page 9 Manual crimping tools Fig. 1 Part number Supplier contact ø 0.5-0.7 contact ø 1.6-2.0 contact ø 3.0-4.0 0.9-1.3 (Fig. 1) (Fig. 2) (Fig. 2) Fig. 2 LEMO DPC.91.701.V DPC.91.101.A DPC.91.102.V DANIELS MH860 M300BT ASTRO 616336 615708 – According to specification MIL-C-22520/7-01.
- Page 10 ® ® Turret for crimp contacts 1.6-2.0-3.0 Connector + Contact Positioners and 4.0 mm diameter + type reference Type Part number 2.0 2.4 1 C M 12-14-16 8-7-6 DCE.91.202.BVCM 2.0 1.9 2 B P 14-16-18 7-6-5 1.6 1.9 1 C M 14-16-18 7-6-5 DCE.91.162.BVCM...
