GECI
RED DIAMOND CHARGER
™
PLEASE READ CAREFULLY BEFORE OPERATING THE CHARGER OR BATTERY.
1.
Installation and Service operations can be done by qualified personnel only.
2. To prevent the risk of electric shock, don't touch uninsulated portions of the Red Diamond Charger
and the Battery.
3. Remove AC input before to disconnect the battery.
4. The charger is suitable for indoor installation, in ambients with abundant ventilation.
5. Don't use the charger near flammable materials.
6. Don't obstruct the ventilation slots and leave sufficient free space around the unit.
7. Don't expose the charger to liquids or excessive dust.
8. Check the conditions of cables and accessories on a regular basis, and replace them immediately
if they get damaged.
9. Don't extend the battery cables. Replace them, if necessary, with cables of the same type, length,
section and insulation as the original ones.
10. During the installation of the charger, make sure to connect the EARTH conductor properly,
and respect all the applicable Safety Standards.
11. Don't modify any part of the charger. Any modification, applied without written authorization
of the manufacturer, may generate unsafe operating conditions and will void the warranty.
GECIproducts.net

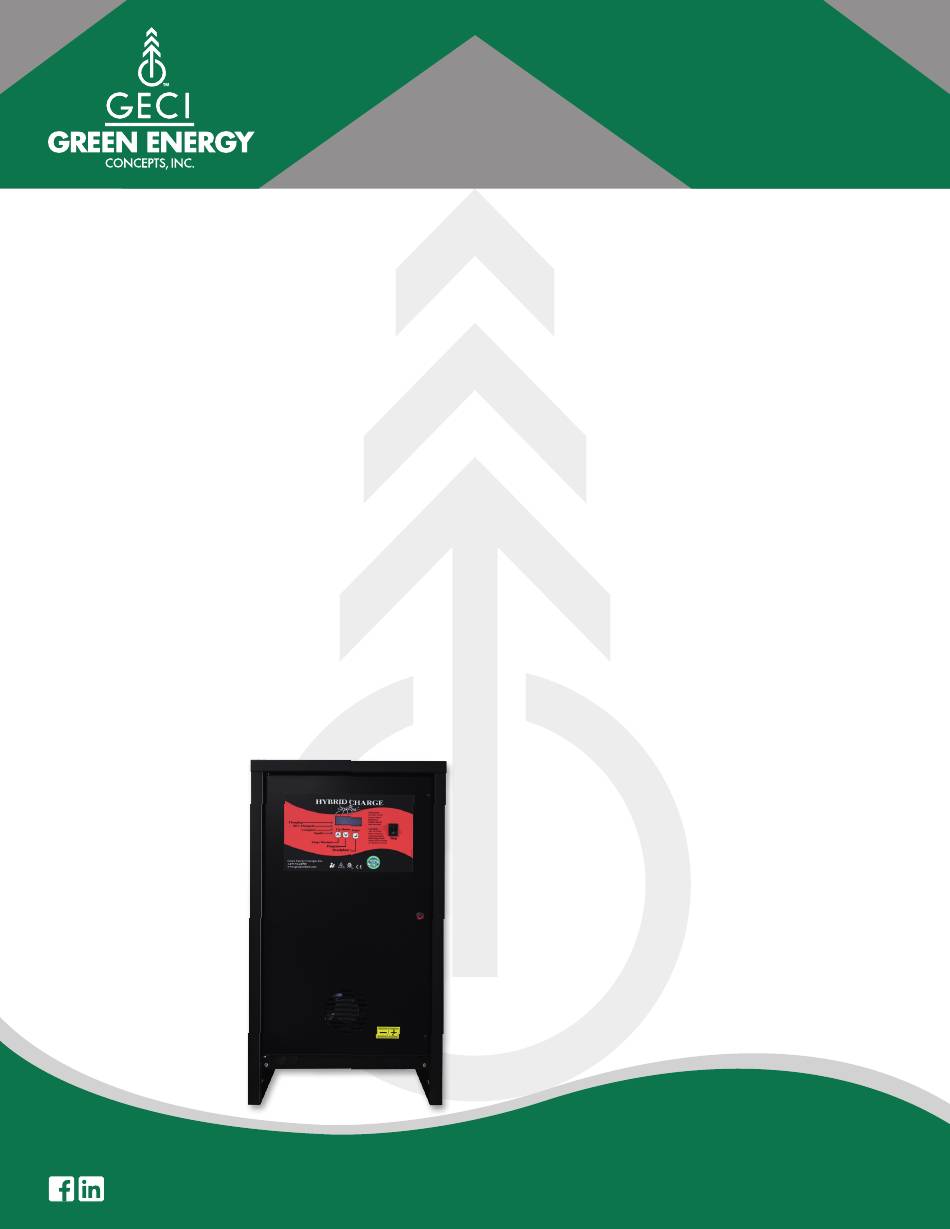

USER'S MANUAL
GREEN ENERGY CONCEPTS INC.
5833 Orr Road, Bldg 2
Charlotte, North Carolina, 28213
1.877.914.8999
©2022 GREEN ENERGY CONCEPTS, INC.
2022
Advertisement
Table of Contents
Related Manuals for GECI Red Diamond Series
Summary of Contents for GECI Red Diamond Series
- Page 1 2022 GECI RED DIAMOND CHARGER USER’S MANUAL ™ PLEASE READ CAREFULLY BEFORE OPERATING THE CHARGER OR BATTERY. Installation and Service operations can be done by qualified personnel only. 2. To prevent the risk of electric shock, don’t touch uninsulated portions of the Red Diamond Charger and the Battery.
- Page 2 GECI RED DIAMOND CHARGER DESCRIPTION ™ The two parts that are combined together to compose this “Hybrid” system are: Special isolation transformer, with line frequency multiplication system; • The Red Diamond is a series of battery chargers that are based on a new “Hybrid” power conversion system.
- Page 3 MODEL BATTERY VOLTAGE RANGE MAXIMUM OUTPUT CURRENT RD 3 12V – 24V 120A RD 4 12V – 24V 200A RD 5 12V – 24V – 36V 120A RD 6 12V – 24V – 36V 200A RD 7 12V – 24V – 36V – 48V 120A RD 11 12V –...
-
Page 4: Conditions Of Use
3. INSTALLATION Conditions of use: GECI RED DIAMOND CHARGER INSTALLATION ™ Temperature (operation): from 0°C to 50°C. Temperature (storage): from –20°C to 60°C. CONDITIONS OF USE: Relative Humidity: less than 75 %. • Temperature (operation): from 0°C to 50°C. • Temperature (storage): from –20°C to 60°C. -
Page 5: Start-Up Sequence
GECI RED DIAMOND CHARGER PROGRAMMING ™ PRELIMINARY CONTROLS Before to proceed with the programming sequence and before to connect a battery, make sure that the Red IBCI RED DIAMOND User's Manual Diamond charger has been installed by a qualified electrician, according with the instructions reported in this manual. -
Page 6: Battery Information
HOW TO ACTIVATE USER PROGRAMMING MODE Press the button DOWN and keep it pressed for 3 seconds • GECI RED DIAMOND CHARGER ACTIVATE PROGRAM MODE The display will show the message: ™ HOW TO ACTIVATE USER PROGRAMMING MODE EDIT PASSWORD Press the button DOWN and keep it pressed for 3 seconds •... -
Page 7: Maximum Temperature
the battery directly from the Battery Identification Module. In this case, the battery will be charged using the same start rate (A/100Ah) tha set for the same voltage. Identification Module. In this case, the battery will be charged using the same start rate (A/100Ah) that has been For example, if a third type of battery (GEL, 12 cells, 24 V nominal, 200 Ah) equ set for the same voltage. -
Page 8: Display Contrast
PARAMETER 11: START TIME WINDOW IBCI R IBCI R Programmable values: From 00.00 to 23:59 PARAMETER 11: START TIME WINDOW Default value: From 00.00 to 23:59 PARAMETER 12: FULL CHARGE TIME WINDOW PARAMETER 12: FULL CHARGE TIME WINDOW Programmable values: From 00.00 to 23:59 START BEG<->END Default value:... -
Page 9: Operation
Connect the Battery to the charger, using a connector of adequate size. 5. OPERATION CONNECTION OF THE BATTERY AND AUTOMATIC RECOGNITION When the battery is correctly connected, the charger visualizes the following GECI RED DIAMOND CHARGER OPERATION ™ Connect the Battery to the charger, using a connector of adequate size. -
Page 10: Battery Voltage Too Low
BATTERY VOLTAGE TOO HIGH BATTERY VOLTAGE If the battery voltage is higher than a maximum threshold, the charge will TOO HIGH !!! If this message appears, it's recommended to verify that the nomina BATTERY VOLTAGE TOO HIGH display visualizes the message: matches the nominal voltage of the charger. -
Page 11: Automatic Stop
RESTART AFTER down, while the charge parameters will remain in memory. If there is a black-out of the AC input, while the charge is in progress, the POWER SUPPLY OFF down, while the charge parameters will remain in memory. When the AC input will be recovered, the charger will restart the charge cy AC INPUT BLACK OUT and the display will show the message: When the AC input will be recovered, the charger will restart the charge cy... -
Page 12: History Log
User's Manual during the normal charge cycle. cycle. 6. HISTORY LOG 6. HISTORY LOG GECI RED DIAMOND CHARGER HISTORY LOG ™ The internal memory of the Red Diamond charger contains a log of the last 60 charge cycles. The internal memory of the Red Diamond charger contains a log of the last... - Page 13 PAGE C (Always visualized) End Date and Time PAGE C (Always visualized): HH.MM AHRET Where: Where: End Date and Time = Date and Time of the TERMINATION of the charge End Date and Time = Date and Time of the TERMINATION of the charge TT = Charge Termination Code (see next paragraph) TT =...
- Page 14 GROUP 2: BATTERY DISCONNECTED 30 The battery has been disconnected before the begin of the charge, while the charger was waiting for the programmed Start Time window. 31 The battery has been disconnected during the first part of the charge, before to reach the gassing voltage. 32 Successful Opportunity charging cycle.
- Page 15 65 Charge never started. Battery voltage was too HIGH 66 Emergency Stop! Maximum Current Limit Exceeded. 67 Emergency Stop! Maximum voltage exceeded during the refresh cycle. 68 Emergency Stop! Maximum temperature exceeded before to reach the gassing voltage. 69 Emergency Stop! Maximum temperature exceeded during the finishing charge.
- Page 16 GECI, (2) the product is used under normal conditions for which designed, (3) the product is not instructions of GECI, (2) the product is used under normal conditions for which designed, (3) the product is not...
