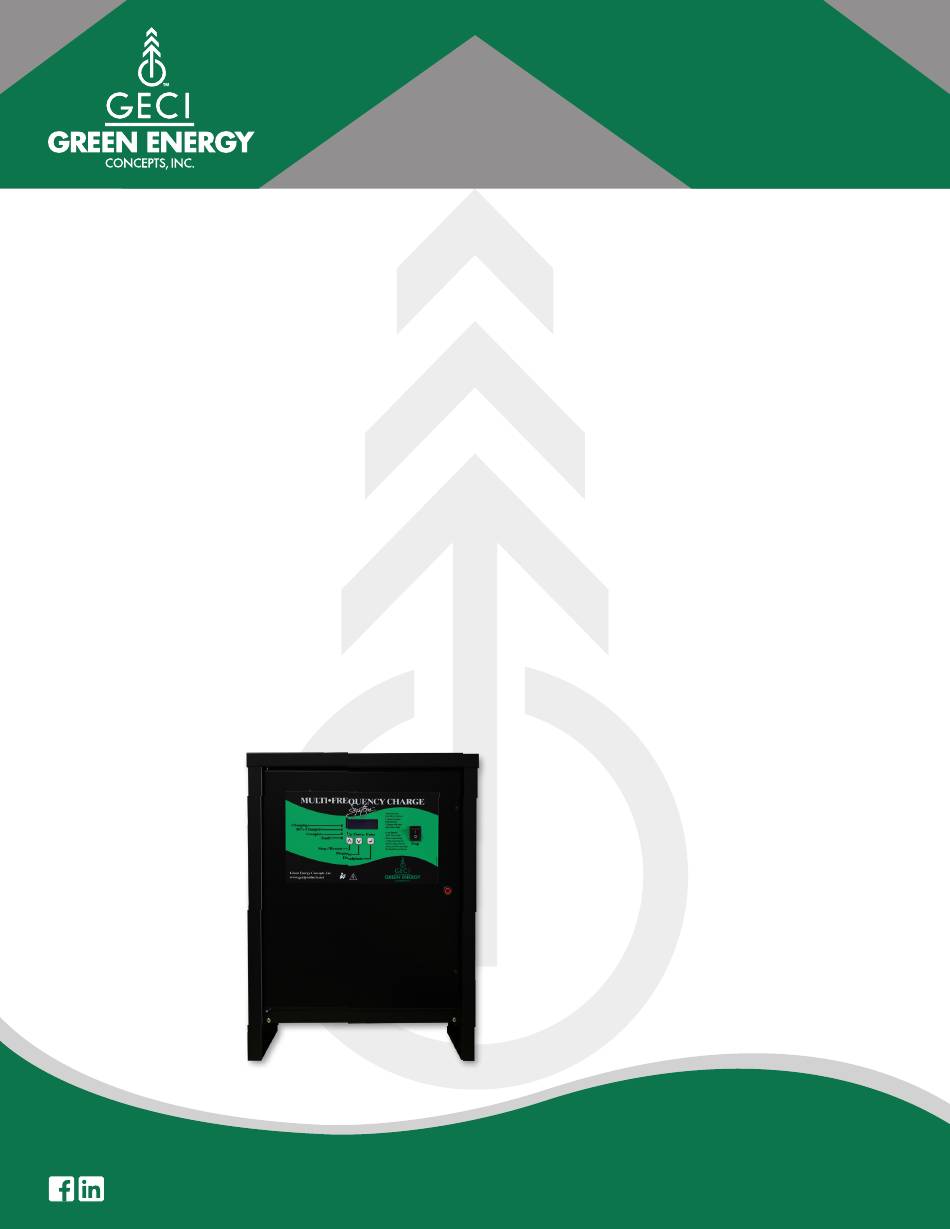

GECI

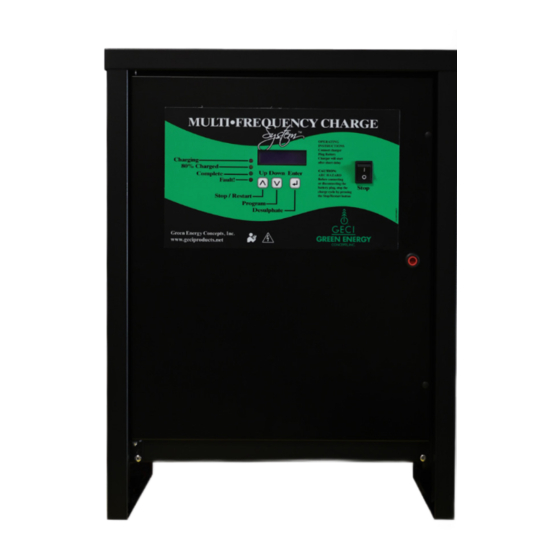

GREEN DIAMOND CHARGER
™
PLEASE READ CAREFULLY BEFORE OPERATING THE CHARGER OR BATTERY.
1.
Installation and Service operations can be done by qualified personnel only.
2. To prevent the risk of electric shock, don't touch uninsulated portions of the Green Diamond Charger
and the Battery.
3. Remove AC input before to disconnect the battery.
4. The charger is suitable for indoor installation, in ambients with abundant ventilation.
5. DO NOT use the charger near flammable materials.
6. DO NOT obstruct the ventilation slots and leave sufficient free space around the unit.
7. DO NOT expose the charger to liquids or excessive dust.
8. Check the conditions of cables and accessories on a regular basis, and replace them immediately
if they get damaged.
9. DO NOT extend the battery cables. Replace them, if necessary, with cables of the same type, length,
section and insulation as the original ones.
10. During the installation of the charger, make sure to connect the EARTH conductor properly,
and respect all the applicable Safety Standards.
11. DO NOT modify any part of the charger. Any modification, applied without written authorization
of the manufacturer, may generate unsafe operating conditions and will void the warranty.
GECIproducts.net
V.3F0 m1–2022
USER'S MANUAL
GREEN ENERGY CONCEPTS INC.
5833 Orr Road, Bldg 2
Charlotte, North Carolina, 28213
1.877.914.8999
©2022 GREEN ENERGY CONCEPTS, INC.
Advertisement
Table of Contents
Related Manuals for GECI GREEN DIAMOND CHARGER
Summary of Contents for GECI GREEN DIAMOND CHARGER
- Page 1 PLEASE READ CAREFULLY BEFORE OPERATING THE CHARGER OR BATTERY. Installation and Service operations can be done by qualified personnel only. 2. To prevent the risk of electric shock, don’t touch uninsulated portions of the Green Diamond Charger and the Battery.
-
Page 2: Installation
The exclusive charging curve of the Green Diamond charger allows to reduce the charging factor to the minimum value, so the duration of the overcharge/gassing phase and the average temperature of the battery are minimized. -
Page 3: Ac Input Voltage Settings
AC INPUT VOLTAGE SELECTION 208/240 or 480 VAC AC INPUT VOLTAGE SELECTION 208/240 or 480 VAC CONNECTION OF THE AC INPUT: The three-phase models may be configured for 208/240 VAC or 480 VAC nominal The three-phase models may be configured for 208/240 VAC The charger must be connected to the AC input using an adequate cable and plug, with disconnect switch and fuses. - Page 4 ™ PRELIMINARY PROGRAMMING PRELIMINARY CONTROLS Before to proceed with the programming sequence and before to connect a battery, make sure that the GECI ™ Green Diamond Charger has been installed by a qualified electrician, according with the instructions reported in [V.3F0 m1–...
- Page 5 Press the button DOWN and keep it pressed for 3 seconds • The display will show the message: GECI GREEN DIAMOND CHARGER ACTIVATE PROGRAM MODE ™ HOW TO ACTIVATE USER PROGRAMMING MODE EDIT PASSWORD Press the button DOWN and keep it pressed for 3 seconds •...
-
Page 6: Maximum Temperature
default settings is 140 F. When the charger read the temperature during the charging it applied a temperature compensation voltage PARAMETER 3: MAXIMUM TEMPERATURE Programmable values: from 115 to 160 F or DISABLED Default value: DISABLED NOTE: This parameter sets a maximum limit for the battery temperature. - Page 7 PARAMETER 8: FULL CHARGE / OVERCHARGE TIME WINDOW Programmable values: From 00.00 to 23:59 Default value: From 00.00 to 23:59 NOTE: This parameter sets a time window during the day in which the charger is allowed to fully charge the battery. Usually, this parameter is used in opportunity charging applications, with the purpose of avoiding useless gassing of the battery during the opportunity charging cycles, and to program a daily full charge of the battery.
-
Page 8: Operation
If the Battery Identification Module is enabled, a few seconds after the connection of the When the battery is correctly connected, the charger visualizes the following message: GECI GREEN DIAMOND CHARGER OPERATION ™ battery, the charger will try to establish a wireless connection. And the display will visualize Connect the Battery to the charger, using a connector of adequate size. -
Page 9: Battery Voltage Too Low
In this situation, the display visualizes the messag DELAYED OVERCH. The Green Diamond Charger performs an exclusive charge cycle that is composed by stages at constant current and stages at Page 17/27 Depending on the programming of the Full Charge time window (Parameter suspend the charge, and it will visualize the message (hh.mm)A →... -
Page 10: Automatic Stop
done correctly (See Chapter “INSTALLATION”), the charging current ma excessive value. OVERCURRENT PROTECTION In this case, the charger will suspend the charge, and the display will visualize the OVERCURRENT PROTECTION If the AC input voltage is abnormally high and/or the AC input adjustments ha done correctly (See Chapter “INSTALLATION”), the charging current ma CURRENT If the AC input voltage is abnormally high and/or the AC input adjustments have not been done correctly... - Page 11 [V.3F0 m1– January 2011] IBCI GREEN DIAMOND The GREEN DIAMOND charger is able to estimate the energy saving during the operation. While a charge cycle is in User's Manual progress, the display shows the results relative to that cycle. When the unit is in stand-by mode (battery absent), the display shows the total values.
- Page 12 Second page: Second page: Date and Time ENDCODE Duration Ah Where: Where: Date and Time = Date and Time of the END of the charge Date and Time = Date and Time of the END of the charge ENDCODE = Charge termination code (30 different codes identify all ENDCODE = Charge termination code (30 different codes identify all the possible situations that...
- Page 13 21 Charge stopped manually, during the finishing charge. 22 Charge stopped manually, during eq. 23 Charge stopped manually, during refresh. 24 Charge stopped manually, during desulphation. GROUP 3: BATTERY DISCONNECTED 30 The battery has been disconnected before the begin of the charge, while the charger was waiting for the programmed Start Time window.
- Page 14 64 Charge never started. Battery voltage was too LOW 65 Charge never started. Battery voltage was too HIGH 66 Emergency Stop! Maximum Current Limit Exceeded. 67 Emergency Stop! Maximum voltage exceeded during the refresh cycle. 68 Emergency Stop! Maximum temperature exceeded before to reach the gassing voltage. 69 Emergency Stop! Maximum temperature exceeded during the finishing charge.
- Page 15 GECI, (2) the product is used under normal conditions for which designed, (3) the product is not instructions of GECI, (2) the product is used under normal conditions for which designed, (3) the product is not...
