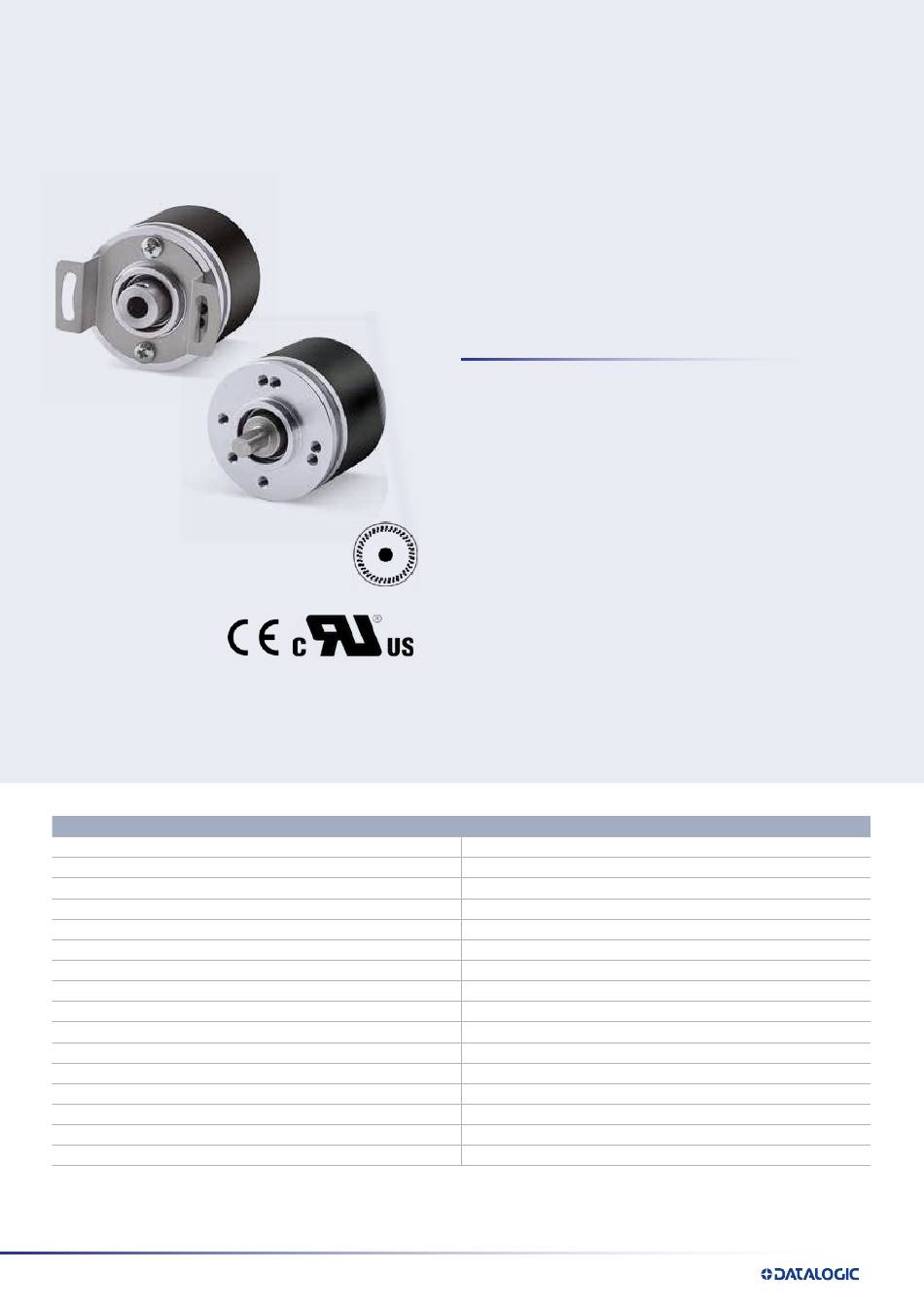

ENC41™
MECHANICAL AND ENVIRONMENTAL SPECIFICATIONS
Case dimension
Shaft dimension
Shaft loading (axial and radial)
Shaft rotational speed
Starting torque at 20 °C
Bearings life
Weight
Case material
Flange material
Shaft material
Bearings material
Mechanical protection
Shock resistance
Vibration resistance
Operating temperature
Storage temperature
Note: specifications subject to changes without prior notice, please refer to the user manual received with the product for mounting, wiring and operation .
12
CATALOG | Optical Rotary Encoders
Basic Line

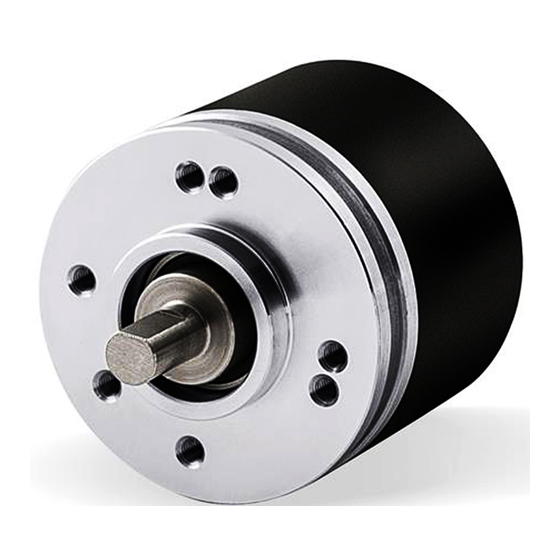

• Compact dimension Ø41mm
• Hollow or solid shaft
• Cost effective
• Light duty
APPLICATIONS
• Working and assembling lines
• Packaging machinery
• Light conveyors
Ø 40 .5 mm, depth 34 mm
Hollow or solid shaft Ø 6 mm
6000 rpm max .
≤ 0 .3 Ncm (typ .)
0 .1 kg (3 .5 oz) ca .
Fibre glass epoxy resin
Aluminium anticorodal UNI EN AW-6082
Stainless steel non-magnetic UNI EN 4305
100g, 6 ms (MIL STD 202F)
10 g, 5-2000 Hz (MIL STD 202F)
-25 to +85°C (-13 to 185°F)
-25 to +85°C (-13 to 185°F), 98% R .H . non condensing
20 N max .
10
min .
9
ABEC 5
IP64
Advertisement
Table of Contents
Related Manuals for Datalogic ENC41-H06-0100-C15
Summary of Contents for Datalogic ENC41-H06-0100-C15
- Page 1 ENC41™ Basic Line • Compact dimension Ø41mm • Hollow or solid shaft • Cost effective • Light duty APPLICATIONS • Working and assembling lines • Packaging machinery • Light conveyors MECHANICAL AND ENVIRONMENTAL SPECIFICATIONS Case dimension Ø 40 .5 mm, depth 34 mm Shaft dimension Hollow or solid shaft Ø...
-
Page 2: Electrical Specifications
ELECTRICAL SPECIFICATIONS Resolution 100, 360, 500, 1000, 1024, 2048, 4096 PPR Counting frequency 50 kHz max. Output signals AB0 and /A/B/0 Output circuit Smart Push-Pull & Line Driver Power supply 5 – 30 Vdc Consumption 50 mA max. Output current 40 mA max (per each channel) Connection 8-poles shielded cable 1.5m (on encoder side) -
Page 3: Incremental Encoders
INCREMENTAL ENCODERS MODEL SELECTION BASIC LINE MODELS SHAFT CONNECTION RESOLUTION MODEL ORDER NO. 100 PPR ENC41-H06-0100-C15 95B080070 360 PPR ENC41-H06-0360-C15 95B080080 500 PPR ENC41-H06-0500-C15 95B080090 Hollow shaft Cable 1 .5m 1000 PPR ENC41-H06-1000-C15 95B080100 ○ Ø 6 mm 1024 PPR... - Page 4 ENCODERS Incremental encoders ENC41-H06 Series Mounting instructions Istruzioni di montaggio Montagehinweise inserire l'encoder sull'albero del Geber auf die Motorwelle montieren; Belastungen der mount the encoder on the motor shaft; never force the motore; evitare sforzi sull'albero encoder; Geberwelle vermeiden;...
- Page 5 Tel: +39 051 3147011 - Fax: +39 051 3147205 - www.datalogic.com la Société DATALOGIC nie toute responsabilité pour tout dommage ou blessure que l'utilisateur peut encourir à la suite de la non- observance des normes de sécurité. Helpful links at www.datalogic.com: Contact Us, Terms and Conditions, Support.
- Page 6 ENCODERS Incremental encoders ENC41-S06 Series Mounting instructions Istruzioni di montaggio Montagehinweise Mount the flexible coupling 1 on the encoder shaft; Montare il giunto elastico 1 sull'encoder; Die Kupplung 1 auf den Geber montieren; fix the encoder to the flange 2 using screws 3, ...
- Page 7 électromagnétique en proximité de l'unité; © 2013 - 2017 Datalogic S.p.A. and/or its affiliates ALL RIGHTS RESERVED. Without limiting the - connecter le blindage du câble et/ou la protection du connecteur et/ou le corps du dispositif à la borne de la mise à terre;...
