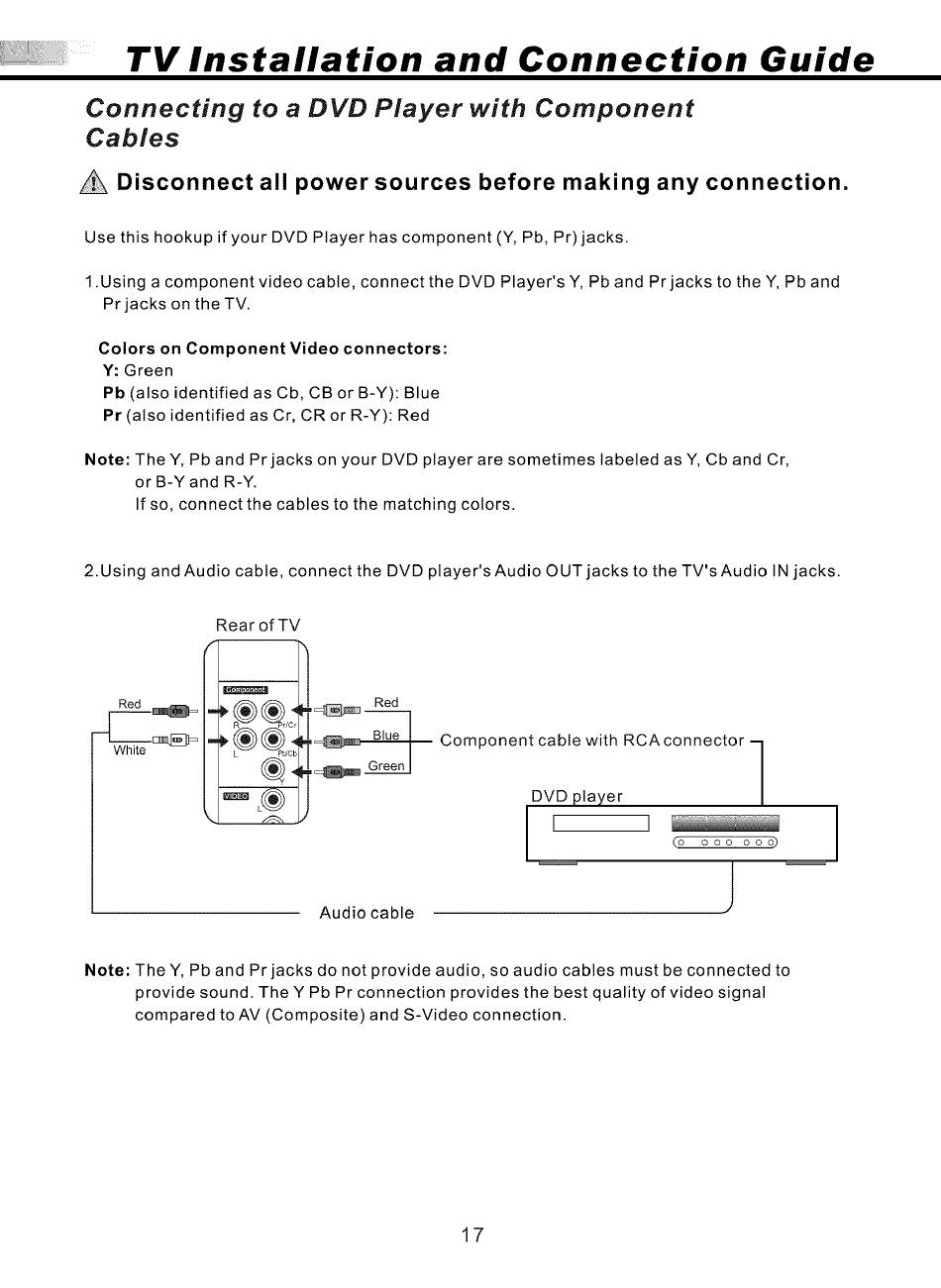

TV Installation and Connection Guide
Connecting to a DVD Player with Component
Cables
Disconnect all power sources before making any connection.
Use this hookup if your DVD Player has component (Y, Pb, Pr)jacks.
1.Using a component video cable, connect the DVD Player'sY, Pb and Prjacks to the Y, Pb and
Pr jacks on the TV.
Colors on Component Video connectors:
Y: Green
Pb (also identified as Cb, CB or B-Y): Blue
Pr (also identified as Cr, CRor R-Y): Red
Note: TheY, Pb and Prjacks on your DVD player are sometimes labeled as Y, Cb and Cr,
or B-Y and R-Y.
If so, connect the cables to the matching colors.
2.Using and Audio cable, connect the DVD player's Audio OUT jacks to the TV's Audio IN jacks.
Rear of TV
Red
White
®4
, ,_:_ Red
,_ Component cable with RCA connector
,_ ereenl 1
DVD player
l [ I co oooooo _
Audio cable J
I
Note: TheY, Pb and Prjacks do not provide audio, so audio cables must be connected to
provide sound. The Y Pb Pr connection provides the best quality of video signal
compared toAV (Composite) and S-Video connection.
17
