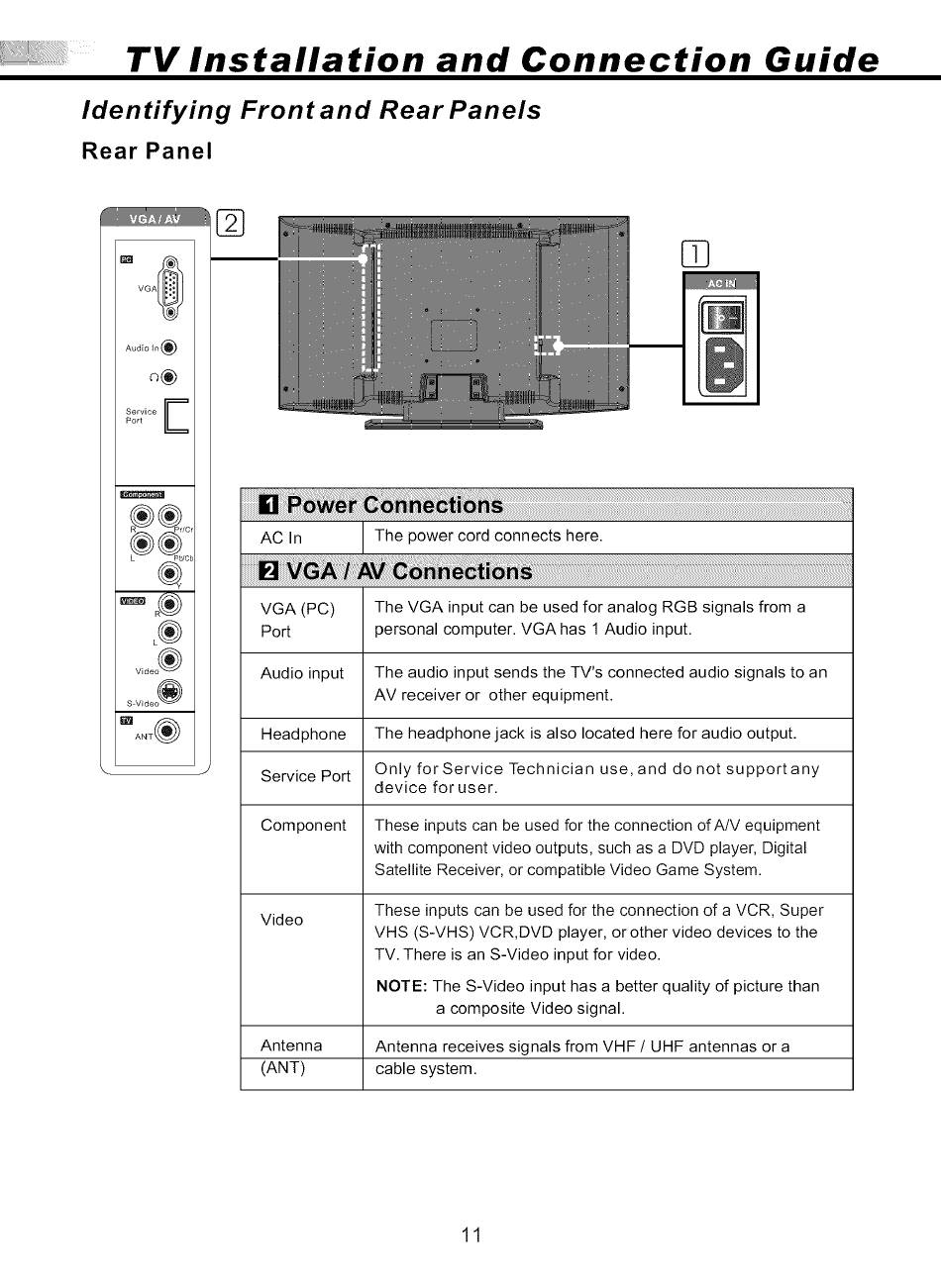

TV Installation
and
Connection
Guide
Identifying
Front and Rear Panels
Rear
Panel
I_
VGA_
Audio
In (_)
Service
E
Port
®
L®
Video
®
S Video
@
Ig_! ANT_
03
AC In
The power cord connects
here.
VGA (PC)
The VGA
input
can be used for analog
RGB signals
from a
Port
personal
computer.
VGA has 1 Audio input.
Audio input
The audio input sends the TV's connected
audio signals to an
AV receiver or other equipment.
Headphone
The headphone
jack is also located here for audio output.
Service Port
Only for Service
Technician
use, and do not supportany
device
for user.
Component
These inputs can be used for the connection
of A/V equipment
with component
video outputs, such as a DVD player, Digital
Satellite Receiver, or compatible Video Game System.
Video
These inputs can be used for the connection
of a VCR, Super
VHS (S-VHS) VCR,DVD
player, or other video devices to the
TV. There is an S-Video input for video.
NOTE: The S-Video input has a better quality of picture than
a composite
Video signal.
Antenna
Antenna receives signals from VHF / UHF antennas
or a
(ANT)
cable system.
